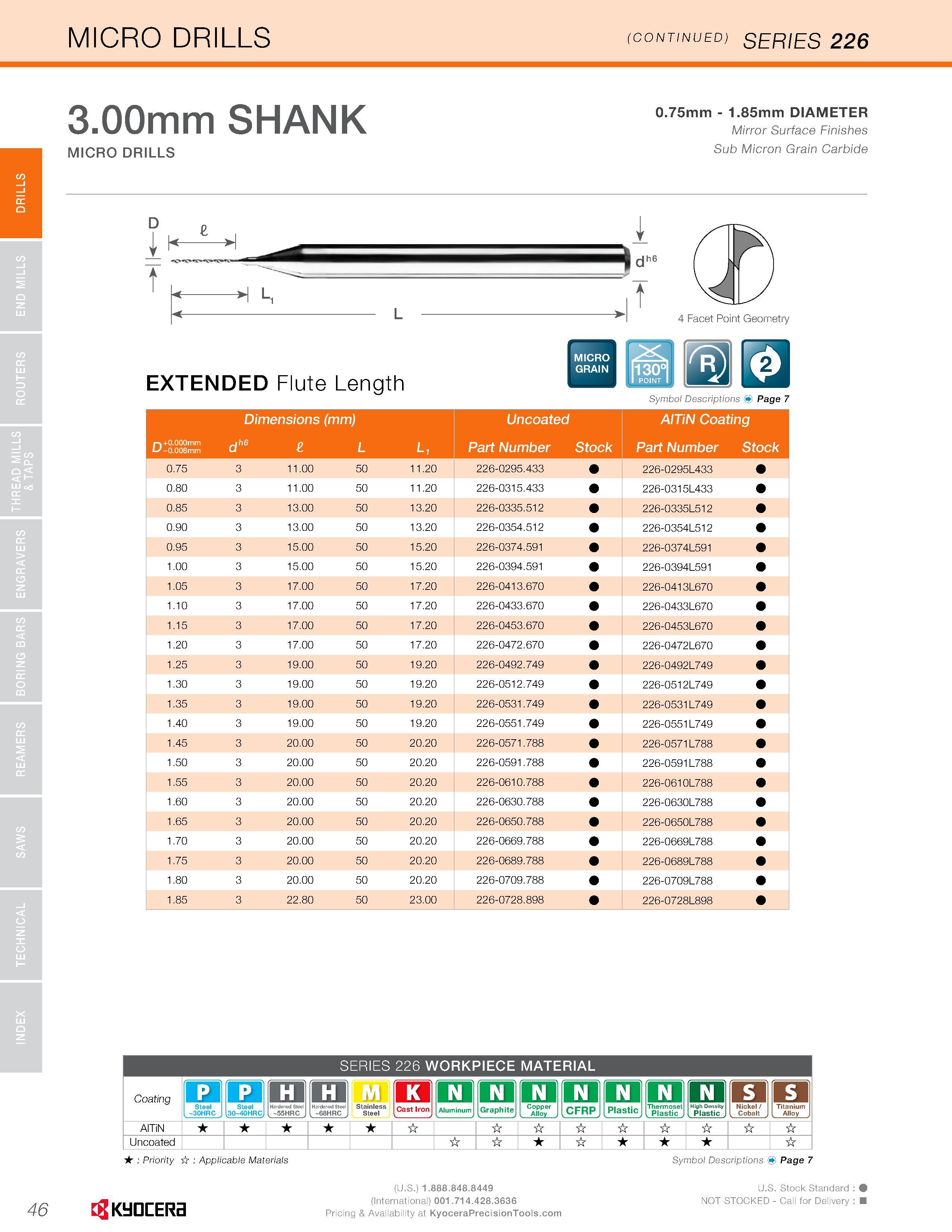

DRILLS MICRO DRILLS (CONTINUED) SERIES 226 3.00mm SHANK MICRO DRILLS 0.75mm - 1.85mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Dimensions (mm) Uncoated AITiN Coating r-\ +Q.0Q0mm 0 n j LJ-0.008mm U Z L. Li Part Number Stock Part Number Stock 0.75 3 11.00 50 11.20 226-0295.433 226-0295L433 0.80 3 11.00 50 11.20 226-0315.433 226-0315L433 0.85 3 13.00 50 13.20 226-0335.512 226-0335L512 0.90 3 13.00 50 13.20 226-0354.512 226-0354L512 0.95 3 15.00 50 15.20 226-0374.591 226-0374L591 1.00 3 15.00 50 15.20 226-0394.591 226-0394L591 1.05 3 17.00 50 17.20 226-0413.670 226-0413L670 1.10 3 17.00 50 17.20 226-0433.670 226-0433L670 1.15 3 17.00 50 17.20 226-0453.670 226-0453L670 1.20 3 17.00 50 17.20 226-0472.670 226-0472L670 1.25 3 19.00 50 19.20 226-0492.749 226-0492L749 1.30 3 19.00 50 19.20 226-0512.749 226-0512L749 1.35 3 19.00 50 19.20 226-0531.749 226-0531L749 1.40 3 19.00 50 19.20 226-0551.749 226-0551L749 1.45 3 20.00 50 20.20 226-0571.788 226-0571L788 1.50 3 20.00 50 20.20 226-0591.788 226-0591L788 1.55 3 20.00 50 20.20 226-0610.788 226-0610L788 1.60 3 20.00 50 20.20 226-0630.788 226-0630L788 1.65 3 20.00 50 20.20 226-0650.788 226-0650L788 1.70 3 20.00 50 20.20 226-0669.788 226-0669L788 1.75 3 20.00 50 20.20 226-0689.788 226-0689L788 1.80 3 20.00 50 20.20 226-0709.788 226-0709L788 1.85 3 22.80 50 23.00 226-0728.898 226-0728L898 SERIES 226 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Ml Stainless Steel o Aluminuin Q Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 46 CgKyDCERa U.S. Stock Standard NOT STOCKED - Call for Delivery
