51 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.49

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 49 0051 ENG Lab2u

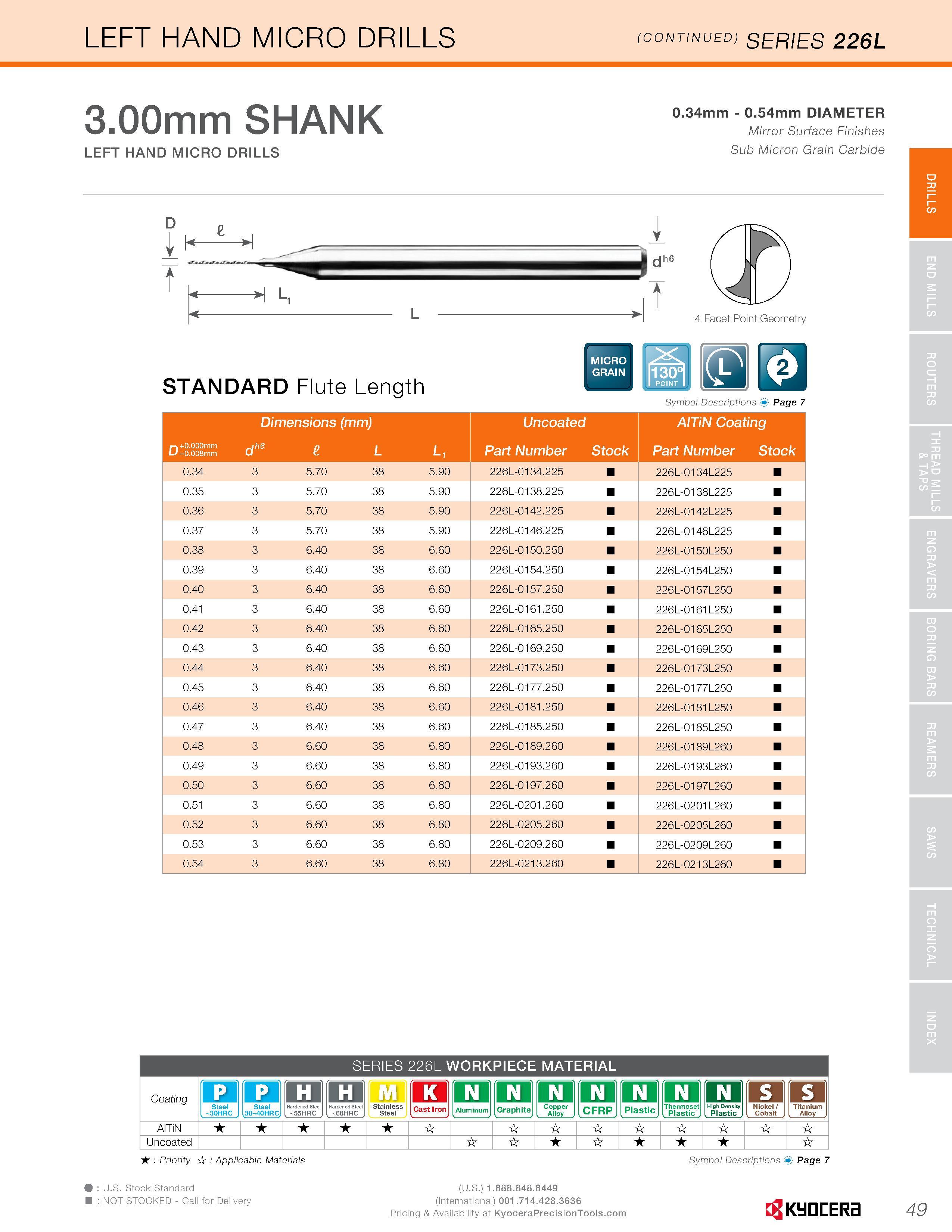

LEFT HAND MICRO DRILLS (CONTINUED) SERIES 226L 3.00mm SHANK LEFT HAND MICRO DRILLS 0.34mm - 0.54mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Dimensions (mm) Uncoated AITiN Coating r-k+0.000mm h6 n U-0.008mm U L Li Part Number Stock Part Number Stock 0.34 3 5.70 38 5.90 226L-0134.225 226L-0134L225 0.35 3 5.70 38 5.90 226L-0138.225 226L-0138L225 0.36 3 5.70 38 5.90 226L-0142.225 226L-0142L225 0.37 3 5.70 38 5.90 226L-0146.225 226L-0146L225 0.38 3 6.40 38 6.60 226L-0150.250 226L-0150L250 0.39 3 6.40 38 6.60 226L-0154.250 226L-0154L250 0.40 3 6.40 38 6.60 226L-0157.250 226L-0157L250 0.41 3 6.40 38 6.60 226L-0161.250 226L-0161L250 0.42 3 6.40 38 6.60 226L-0165.250 226L-0165L250 0.43 3 6.40 38 6.60 226L-0169.250 226L-0169L250 0.44 3 6.40 38 6.60 226L-0173.250 226L-0173L250 0.45 3 6.40 38 6.60 226L-0177.250 226L-0177L250 0.46 3 6.40 38 6.60 226L-0181.250 226L-0181L250 0.47 3 6.40 38 6.60 226L-0185.250 226L-0185L250 0.48 3 6.60 38 6.80 226L-0189.260 226L-0189L260 0.49 3 6.60 38 6.80 226L-0193.260 226L-0193L260 0.50 3 6.60 38 6.80 226L-0197.260 226L-0197L260 0.51 3 6.60 38 6.80 226L-0201.260 226L-0201L260 0.52 3 6.60 38 6.80 226L-0205.260 226L-0205L260 0.53 3 6.60 38 6.80 226L-0209.260 226L-0209L260 0.54 3 6.60 38 6.80 226L-0213.260 226L-0213L260 SERIES 226L WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Ai Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic Q Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Kyocera 49 DRILLS
