25 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.23

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 23 0025 ENG Lab2u

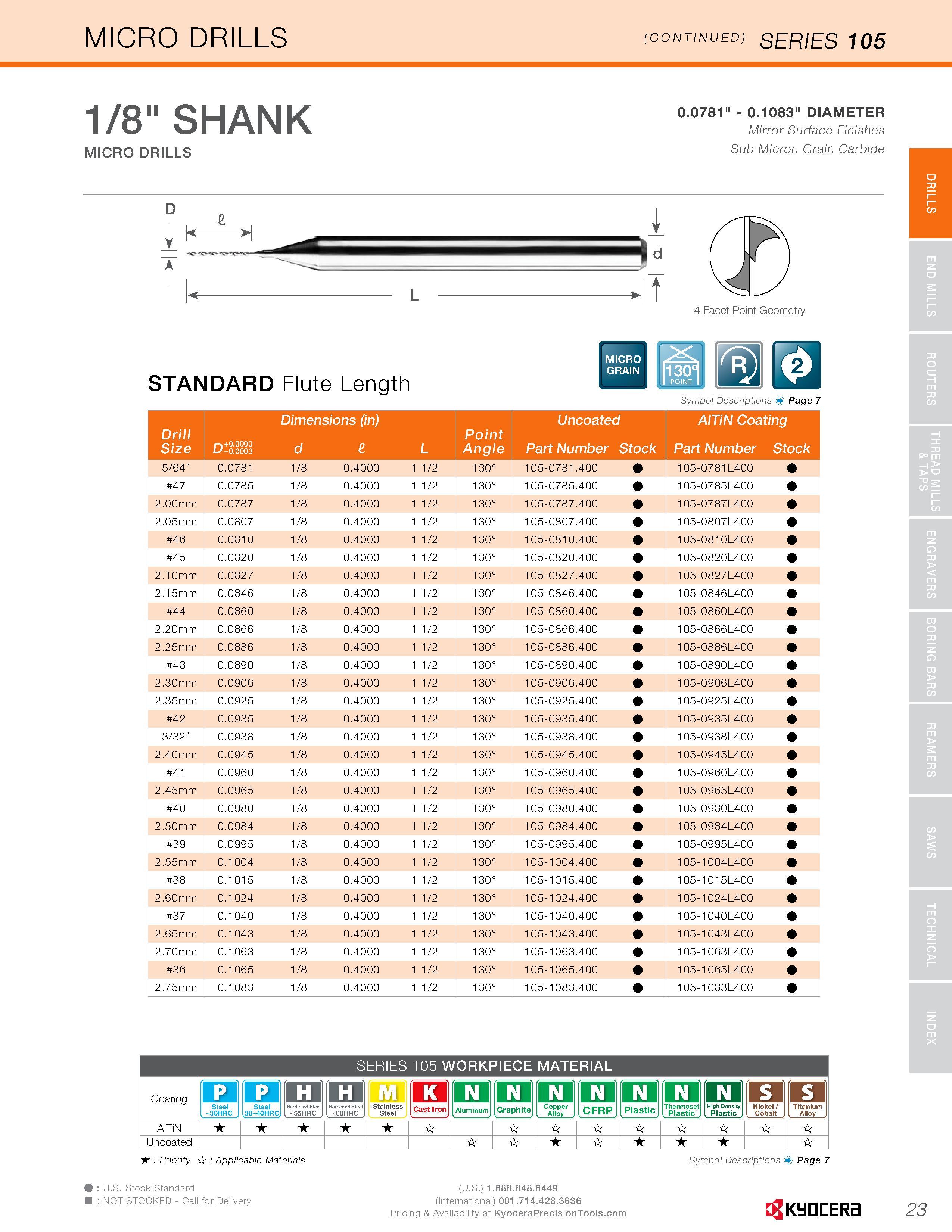

MICRO DRILLS (CONTINUED) SERIES 105 1/8" SHANK MICRO DRILLS 0.0781" - 0.1083" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide STANDARD Flute Length Symbol Descriptions Page 7 Dimensions (in) Uncoated AITiN Coating Drill Point Size r\ +0.0000 j n I O-0.0003 CJ L Angle Part Number Stock Part Number Stock 5/64” 0.0781 1/8 0.4000 1 1/2 130° 105-0781.400 105-0781L400 47 0.0785 1/8 0.4000 1 1/2 130° 105-0785.400 105-0785L400 2.00mm 0.0787 1/8 0.4000 1 1/2 130° 105-0787.400 105-0787L400 2.05mm 0.0807 1/8 0.4000 1 1/2 130° 105-0807.400 105-0807L400 46 0.0810 1/8 0.4000 1 1/2 130° 105-0810.400 105-0810L400 45 0.0820 1/8 0.4000 1 1/2 130° 105-0820.400 105-0820L400 2.1 Omm 0.0827 1/8 0.4000 1 1/2 130° 105-0827.400 105-0827L400 2.15mm 0.0846 1/8 0.4000 1 1/2 130° 105-0846.400 105-0846L400 44 0.0860 1/8 0.4000 1 1/2 130° 105-0860.400 105-0860L400 2.20mm 0.0866 1/8 0.4000 1 1/2 130° 105-0866.400 105-0866L400 2.25mm 0.0886 1/8 0.4000 1 1/2 130° 105-0886.400 105-0886L400 43 0.0890 1/8 0.4000 1 1/2 130° 105-0890.400 105-0890L400 2.30mm 0.0906 1/8 0.4000 1 1/2 130° 105-0906.400 105-0906L400 2.35mm 0.0925 1/8 0.4000 1 1/2 130° 105-0925.400 105-0925L400 42 0.0935 1/8 0.4000 1 1/2 130° 105-0935.400 105-0935L400 3/32” 0.0938 1/8 0.4000 1 1/2 130° 105-0938.400 105-0938L400 2.40mm 0.0945 1/8 0.4000 1 1/2 130° 105-0945.400 105-0945L400 41 0.0960 1/8 0.4000 1 1/2 130° 105-0960.400 105-0960L400 2.45mm 0.0965 1/8 0.4000 1 1/2 130° 105-0965.400 105-0965L400 40 0.0980 1/8 0.4000 1 1/2 130° 105-0980.400 105-0980L400 2.50mm 0.0984 1/8 0.4000 1 1/2 130° 105-0984.400 105-0984L400 39 0.0995 1/8 0.4000 1 1/2 130° 105-0995.400 105-0995L400 2.55mm 0.1004 1/8 0.4000 1 1/2 130° 105-1004.400 105-1 004L400 38 0.1015 1/8 0.4000 1 1/2 130° 105-1015.400 105-1 015L400 2.60mm 0.1024 1/8 0.4000 1 1/2 130° 105-1024.400 105-1 024L400 37 0.1040 1/8 0.4000 1 1/2 130° 105-1040.400 105-1 040L400 2.65mm 0.1043 1/8 0.4000 1 1/2 130° 105-1043.400 105-1 043L400 2.70mm 0.1063 1/8 0.4000 1 1/2 130° 105-1063.400 105-1 063L400 36 0.1065 1/8 0.4000 1 1/2 130° 105-1065.400 105-1 065L400 2.75mm 0.1083 1/8 0.4000 1 1/2 130° 105-1083.400 105-1 083L400 SERIES 105 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery CgKyDCERa 23 DRILLS
