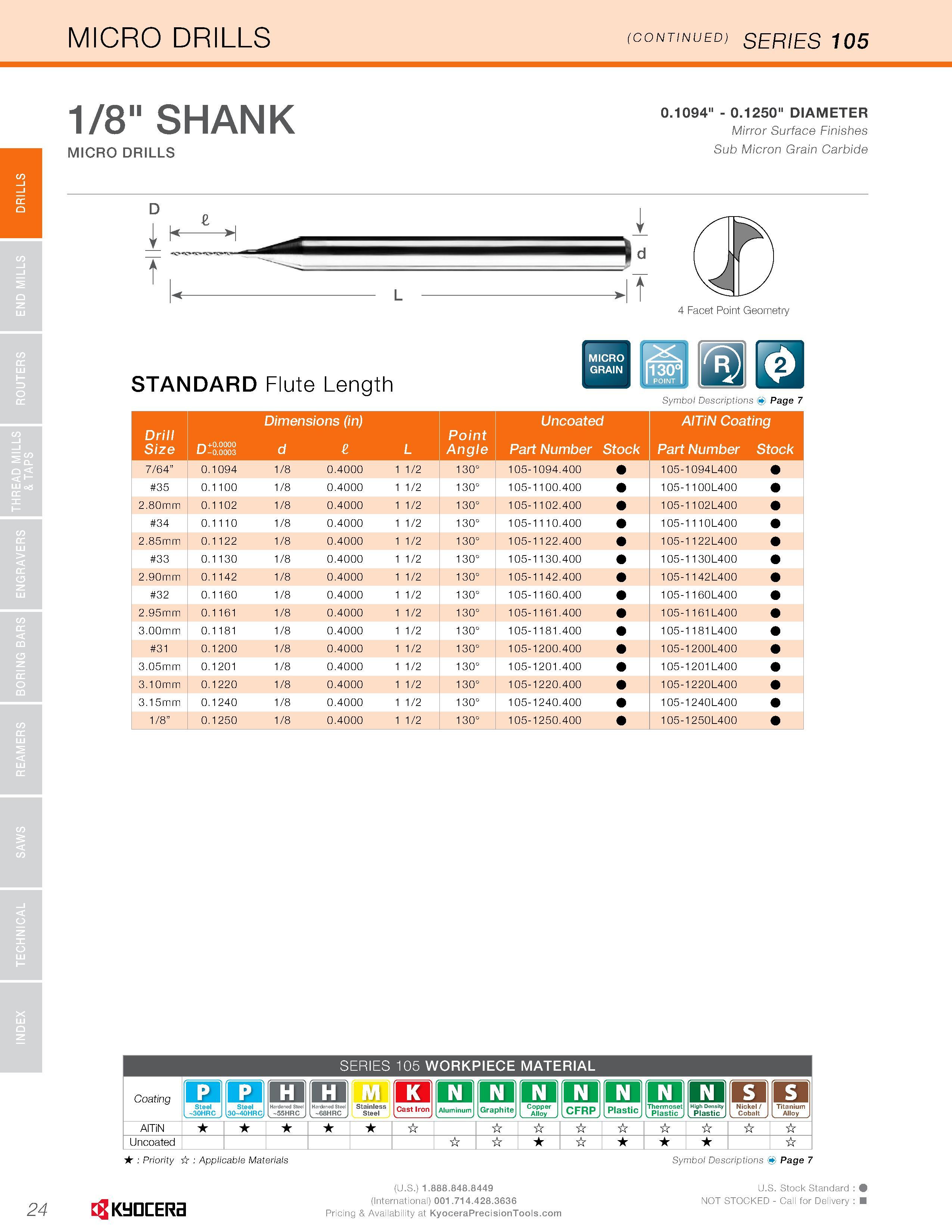

DRILLS MICRO DRILLS (CONTINUED) SERIES 105 1/8" SHANK MICRO DRILLS 0.1094" - 0.1250" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide STANDARD Flute Length Symbol Descriptions Page 7 Dimensions (in) Uncoated AITiN Coating Drill Point Size r\ +0.0000 j n I D-0.0003 u L Angle Part Number Stock Part Number Stock 7/64” 0.1094 1/8 0.4000 1 1/2 130° 105-1094.400 105-1 094L400 35 0.1100 1/8 0.4000 1 1/2 130° 105-1100.400 105-11 00L400 2.80mm 0.1102 1/8 0.4000 1 1/2 130° 105-1102.400 1 05-11 02L400 34 0.1110 1/8 0.4000 1 1/2 130° 105-1110.400 105-1110L400 2.85mm 0.1122 1/8 0.4000 1 1/2 130° 105-1122.400 1 05-11 22L400 33 0.1130 1/8 0.4000 1 1/2 130° 105-1130.400 105-11 30L400 2.90mm 0.1142 1/8 0.4000 1 1/2 130° 105-1142.400 1 05-11 42L400 32 0.1160 1/8 0.4000 1 1/2 130° 105-1160.400 105-11 60L400 2.95mm 0.1161 1/8 0.4000 1 1/2 130° 105-1161.400 105-11 61 L400 3.00mm 0.1181 1/8 0.4000 1 1/2 130° 105-1181.400 105-11 81 L400 31 0.1200 1/8 0.4000 1 1/2 130° 105-1200.400 105-1 200L400 3.05mm 0.1201 1/8 0.4000 1 1/2 130° 105-1201.400 105-1 201 L400 3.10mm 0.1220 1/8 0.4000 1 1/2 130° 105-1220.400 105-1 220L400 3.15mm 0.1240 1/8 0.4000 1 1/2 130° 105-1240.400 105-1 240L400 1/8” 0.1250 1/8 0.4000 1 1/2 130° 105-1250.400 105-1 250L400 SERIES 105 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC uUl Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic Q Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 24 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery
