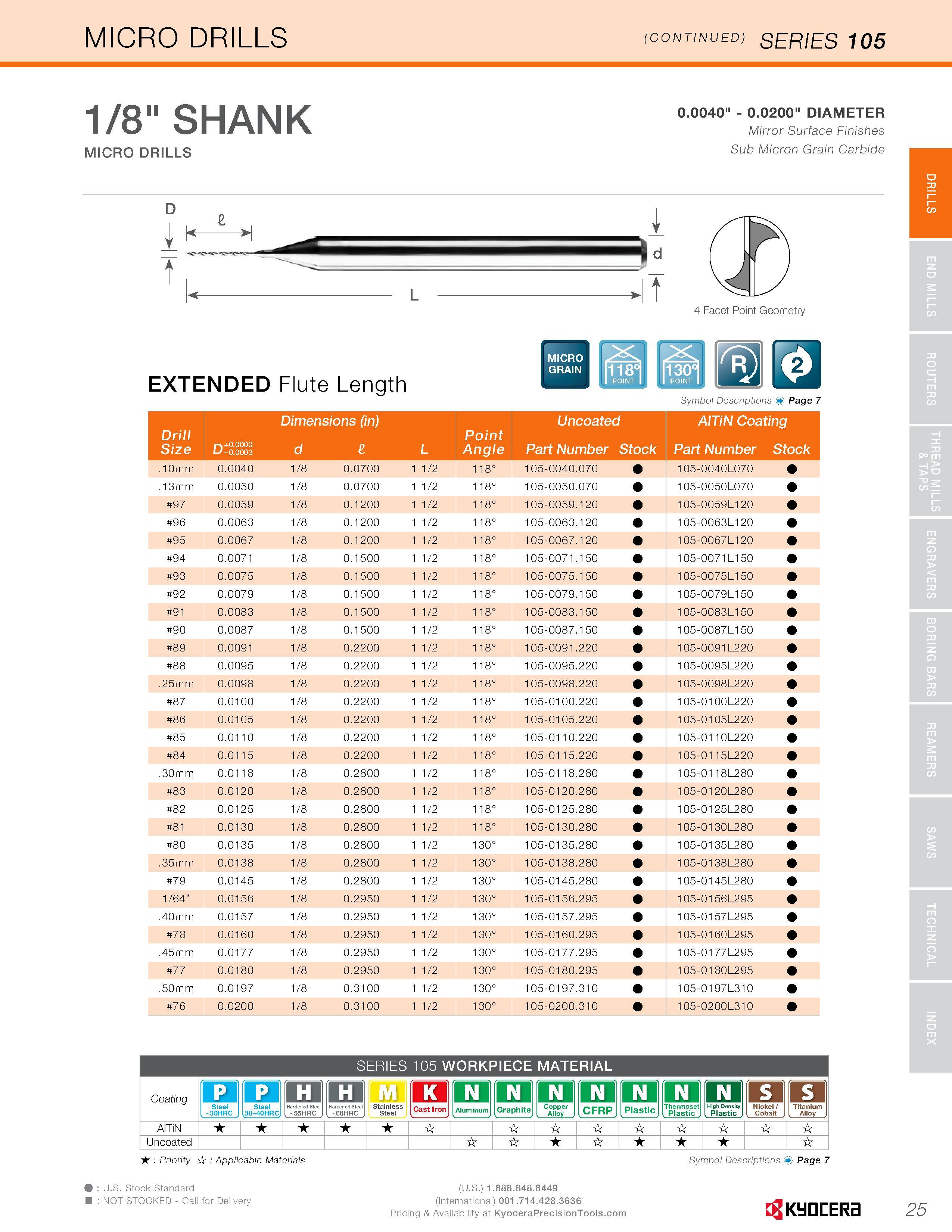

MICRO DRILLS (CONTINUED) SERIES 105 1/8" SHANK MICRO DRILLS 0.0040" - 0.0200" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide EXTENDED Flute Length Symbol Descriptions Page 7 Dimensions (in) Uncoated AITiN Coating Drill Point Size r\ +0.0000 j n I D-o.ooo3 u L Angle Part Number Stock Part Number Stock .10mm 0.0040 1/8 0.0700 1 1/2 118° 105-0040.070 105-0040L070 .13mm 0.0050 1/8 0.0700 1 1/2 118° 105-0050.070 105-0050L070 97 0.0059 1/8 0.1200 1 1/2 118° 105-0059.120 105-0059L1 20 96 0.0063 1/8 0.1200 1 1/2 118° 105-0063.120 105-0063L120 95 0.0067 1/8 0.1200 1 1/2 118° 105-0067.120 105-0067L1 20 94 0.0071 1/8 0.1500 1 1/2 118° 105-0071.150 105-0071 L150 93 0.0075 1/8 0.1500 1 1/2 118° 105-0075.150 105-0075L150 92 0.0079 1/8 0.1500 1 1/2 118° 105-0079.150 105-0079L150 91 0.0083 1/8 0.1500 1 1/2 118° 105-0083.150 105-0083L150 90 0.0087 1/8 0.1500 1 1/2 118° 105-0087.150 105-0087L150 89 0.0091 1/8 0.2200 1 1/2 118° 105-0091.220 105-0091L220 88 0.0095 1/8 0.2200 1 1/2 118° 105-0095.220 105-0095L220 .25mm 0.0098 1/8 0.2200 1 1/2 118° 105-0098.220 105-0098L220 87 0.0100 1/8 0.2200 1 1/2 118° 105-0100.220 105-01 00L220 86 0.0105 1/8 0.2200 1 1/2 118° 105-0105.220 105-01 05L220 85 0.0110 1/8 0.2200 1 1/2 118° 105-0110.220 105-0110L220 84 0.0115 1/8 0.2200 1 1/2 118° 105-0115.220 105-0115L220 .30mm 0.0118 1/8 0.2800 1 1/2 118° 105-0118.280 105-0118L280 83 0.0120 1/8 0.2800 1 1/2 118° 105-0120.280 105-01 20L280 82 0.0125 1/8 0.2800 1 1/2 118° 105-0125.280 105-01 25L280 81 0.0130 1/8 0.2800 1 1/2 118° 105-0130.280 105-01 30L280 80 0.0135 1/8 0.2800 1 1/2 130° 105-0135.280 105-01 35L280 .35mm 0.0138 1/8 0.2800 1 1/2 130° 105-0138.280 105-01 38L280 79 0.0145 1/8 0.2800 1 1/2 130° 105-0145.280 105-01 45L280 1/64” 0.0156 1/8 0.2950 1 1/2 130° 105-0156.295 105-01 56L295 .40mm 0.0157 1/8 0.2950 1 1/2 130° 105-0157.295 105-01 57L295 78 0.0160 1/8 0.2950 1 1/2 130° 105-0160.295 105-01 60L295 .45mm 0.0177 1/8 0.2950 1 1/2 130° 105-0177.295 105-01 77L295 77 0.0180 1/8 0.2950 1 1/2 130° 105-0180.295 105-01 80L295 .50mm 0.0197 1/8 0.3100 1 1/2 130° 105-0197.310 105-01 97L310 76 0.0200 1/8 0.3100 1 1/2 130° 105-0200.310 105-0200L310 SERIES 105 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel o Aluminuin o Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery CgKyDCERa 25 DRILLS
