24 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.22

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 22 0024 ENG Lab2u

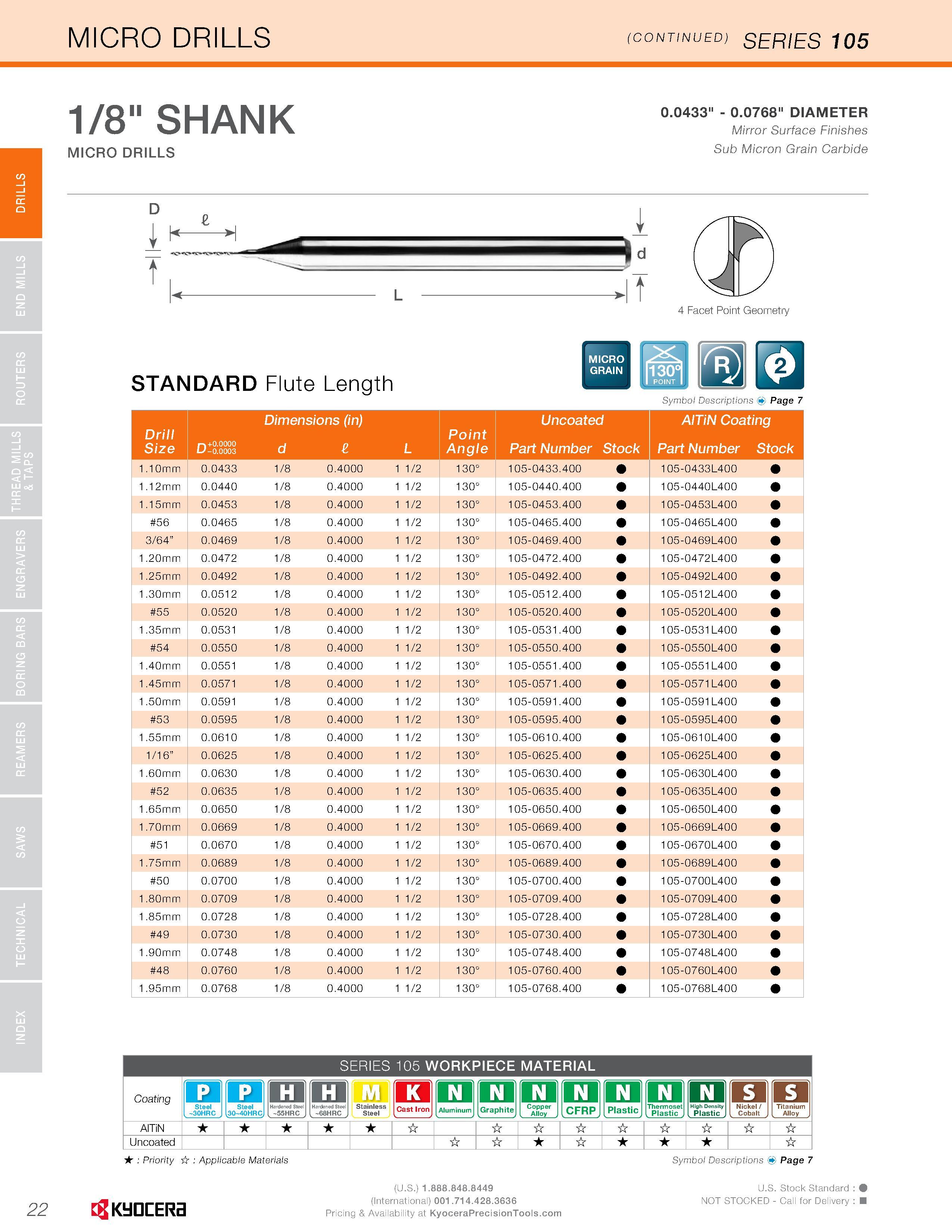

DRILLS MICRO DRILLS (CONTINUED) SERIES 105 1/8" SHANK MICRO DRILLS 0.0433" - 0.0768" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide STANDARD Flute Length Symbol Descriptions Page 7 Dimensions (in) Uncoated AITiN Coating Drill Point Size r\ +0.0000 j n I O-0.0003 u L Angle Part Number Stock Part Number Stock 1.1 Omm 0.0433 1/8 0.4000 1 1/2 130° 105-0433.400 105-0433L400 1.12mm 0.0440 1/8 0.4000 1 1/2 130° 105-0440.400 105-0440L400 1.15mm 0.0453 1/8 0.4000 1 1/2 130° 105-0453.400 105-0453L400 56 0.0465 1/8 0.4000 1 1/2 130° 105-0465.400 105-0465L400 3/64” 0.0469 1/8 0.4000 1 1/2 130° 105-0469.400 105-0469L400 1.20mm 0.0472 1/8 0.4000 1 1/2 130° 105-0472.400 105-0472L400 1.25mm 0.0492 1/8 0.4000 1 1/2 130° 105-0492.400 105-0492L400 1.30mm 0.0512 1/8 0.4000 1 1/2 130° 105-0512.400 1 05-0512L400 55 0.0520 1/8 0.4000 1 1/2 130° 105-0520.400 105-0520L400 1.35mm 0.0531 1/8 0.4000 1 1/2 130° 105-0531.400 105-0531 L400 54 0.0550 1/8 0.4000 1 1/2 130° 105-0550.400 105-0550L400 1.40mm 0.0551 1/8 0.4000 1 1/2 130° 105-0551.400 105-0551 L400 1.45mm 0.0571 1/8 0.4000 1 1/2 130° 105-0571.400 105-0571 L400 1.50mm 0.0591 1/8 0.4000 1 1/2 130° 105-0591.400 105-0591 L400 53 0.0595 1/8 0.4000 1 1/2 130° 105-0595.400 105-0595L400 1.55mm 0.0610 1/8 0.4000 1 1/2 130° 105-0610.400 1 05-0610L400 1/16” 0.0625 1/8 0.4000 1 1/2 130° 105-0625.400 105-0625L400 1.60mm 0.0630 1/8 0.4000 1 1/2 130° 105-0630.400 105-0630L400 52 0.0635 1/8 0.4000 1 1/2 130° 105-0635.400 105-0635L400 1.65mm 0.0650 1/8 0.4000 1 1/2 130° 105-0650.400 105-0650L400 1.70mm 0.0669 1/8 0.4000 1 1/2 130° 105-0669.400 105-0669L400 51 0.0670 1/8 0.4000 1 1/2 130° 105-0670.400 105-0670L400 1.75mm 0.0689 1/8 0.4000 1 1/2 130° 105-0689.400 105-0689L400 50 0.0700 1/8 0.4000 1 1/2 130° 105-0700.400 105-0700L400 1.80mm 0.0709 1/8 0.4000 1 1/2 130° 105-0709.400 105-0709L400 1.85mm 0.0728 1/8 0.4000 1 1/2 130° 105-0728.400 105-0728L400 49 0.0730 1/8 0.4000 1 1/2 130° 105-0730.400 105-0730L400 1.90mm 0.0748 1/8 0.4000 1 1/2 130° 105-0748.400 105-0748L400 48 0.0760 1/8 0.4000 1 1/2 130° 105-0760.400 105-0760L400 1.95mm 0.0768 1/8 0.4000 1 1/2 130° 105-0768.400 105-0768L400 SERIES 105 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Jl Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 22 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery
