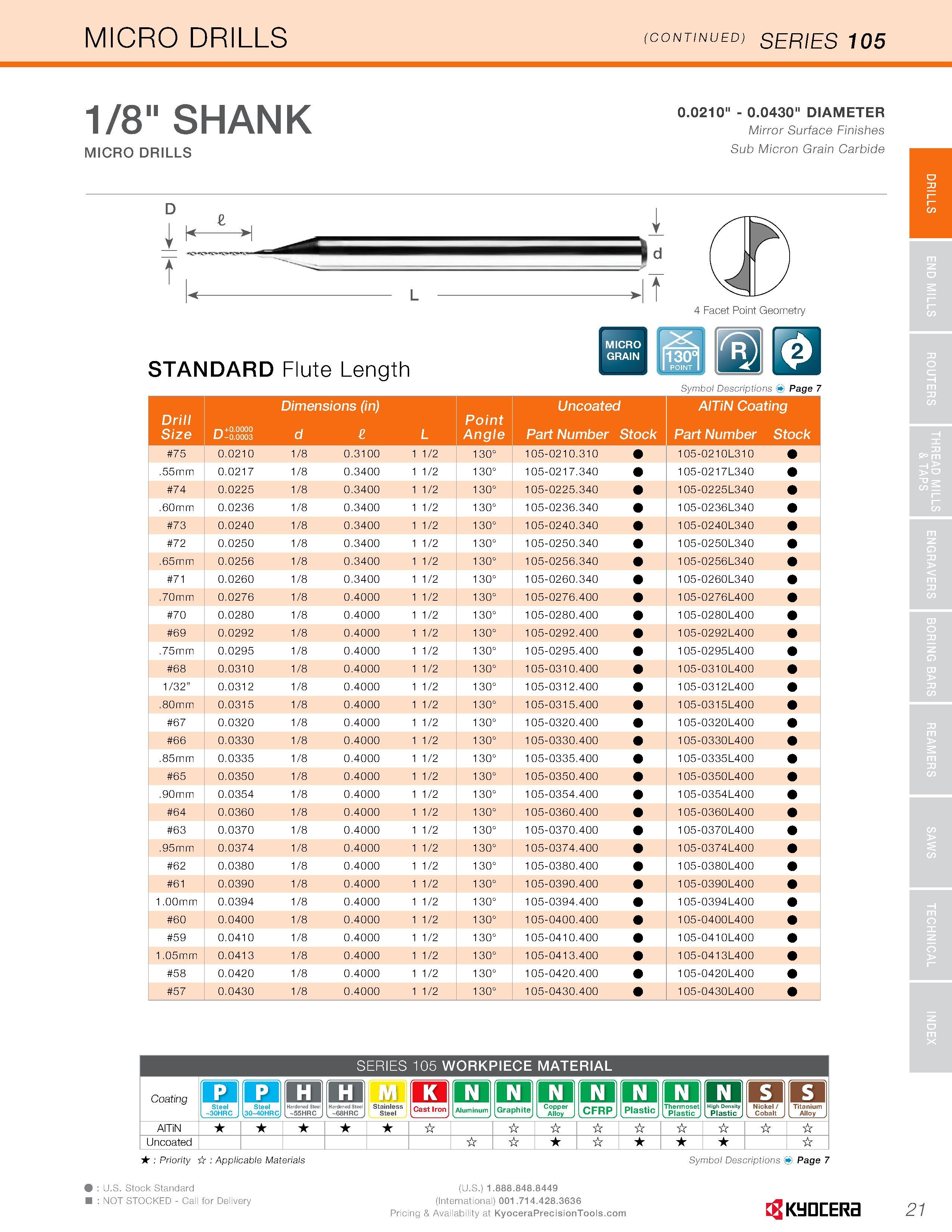

23 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.21

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 21 0023 ENG Lab2u

MICRO DRILLS (CONTINUED) SERIES 105 1/8" SHANK MICRO DRILLS 0.0210" - 0.0430" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide STANDARD Flute Length Symbol Descriptions Page 7 Dimensions (in) Uncoated AITiN Coating Drill Point Size +0.0000 U-0.0003 d e L Angle Part Number Stock Part Number Stock 75 0.0210 1/8 0.3100 1 1/2 130° 105-0210.310 105-0210L310 .55mm 0.0217 1/8 0.3400 1 1/2 130° 105-0217.340 105-0217L340 74 0.0225 1/8 0.3400 1 1/2 130° 105-0225.340 105-0225L340 .60mm 0.0236 1/8 0.3400 1 1/2 130° 105-0236.340 105-0236L340 73 0.0240 1/8 0.3400 1 1/2 130° 105-0240.340 105-0240L340 72 0.0250 1/8 0.3400 1 1/2 130° 105-0250.340 105-0250L340 .65mm 0.0256 1/8 0.3400 1 1/2 130° 105-0256.340 105-0256L340 71 0.0260 1/8 0.3400 1 1/2 130° 105-0260.340 105-0260L340 .70mm 0.0276 1/8 0.4000 1 1/2 130° 105-0276.400 105-0276L400 70 0.0280 1/8 0.4000 1 1/2 130° 105-0280.400 105-0280L400 69 0.0292 1/8 0.4000 1 1/2 130° 105-0292.400 105-0292L400 .75mm 0.0295 1/8 0.4000 1 1/2 130° 105-0295.400 105-0295L400 68 0.0310 1/8 0.4000 1 1/2 130° 105-0310.400 105-0310L400 1/32” 0.0312 1/8 0.4000 1 1/2 130° 105-0312.400 105-0312L400 .80mm 0.0315 1/8 0.4000 1 1/2 130° 105-0315.400 105-0315L400 67 0.0320 1/8 0.4000 1 1/2 130° 105-0320.400 105-0320L400 66 0.0330 1/8 0.4000 1 1/2 130° 105-0330.400 105-0330L400 .85mm 0.0335 1/8 0.4000 1 1/2 130° 105-0335.400 105-0335L400 65 0.0350 1/8 0.4000 1 1/2 130° 105-0350.400 105-0350L400 .90mm 0.0354 1/8 0.4000 1 1/2 130° 105-0354.400 105-0354L400 64 0.0360 1/8 0.4000 1 1/2 130° 105-0360.400 105-0360L400 63 0.0370 1/8 0.4000 1 1/2 130° 105-0370.400 105-0370L400 .95mm 0.0374 1/8 0.4000 1 1/2 130° 105-0374.400 105-0374L400 62 0.0380 1/8 0.4000 1 1/2 130° 105-0380.400 105-0380L400 61 0.0390 1/8 0.4000 1 1/2 130° 105-0390.400 105-0390L400 1.00mm 0.0394 1/8 0.4000 1 1/2 130° 105-0394.400 105-0394L400 60 0.0400 1/8 0.4000 1 1/2 130° 105-0400.400 105-0400L400 59 0.0410 1/8 0.4000 1 1/2 130° 105-0410.400 105-0410L400 1.05mm 0.0413 1/8 0.4000 1 1/2 130° 105-0413.400 105-0413L400 58 0.0420 1/8 0.4000 1 1/2 130° 105-0420.400 105-0420L400 57 0.0430 1/8 0.4000 1 1/2 130° 105-0430.400 105-0430L400 SERIES 105 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC A1 Stainless Steel o Aluminuin Q Graphite o Copper Alloy o CFRP o Plastic Q Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery CgKyDCERa 2) DRILLS
