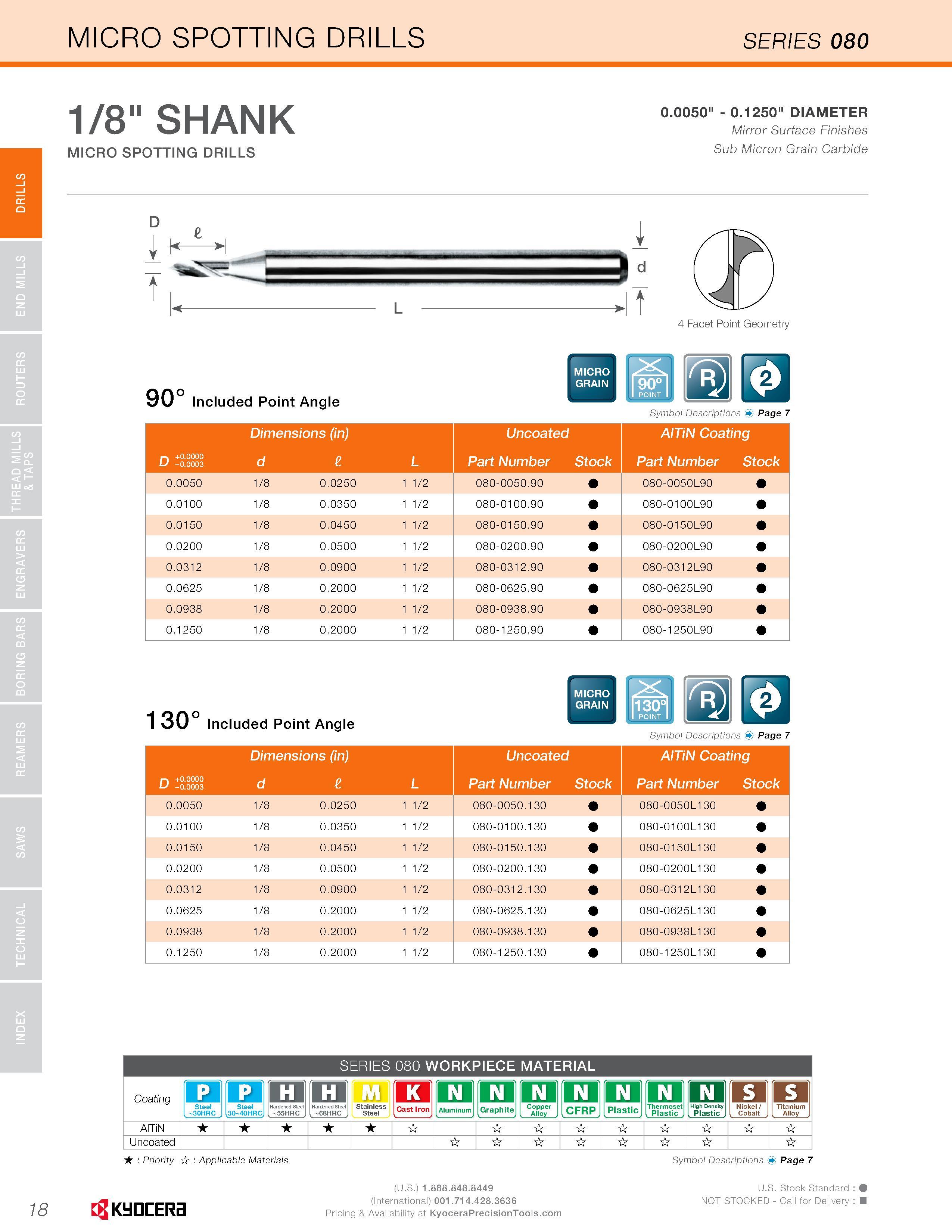

DRILLS MICRO SPOTTING DRILLS SERIES 080 1/8" SHANK MICRO SPOTTING DRILLS 0.0050" - 0.1250" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide 90° Included Point Angle MICRO GRAIN I 00° 0 Symbol Descriptions Page 7 Dimensions (in) Uncoated AITiN Coating +0.0000 U -0.0003 d L Part Number Stock Part Number Stock 0.0050 1/8 0.0250 1 1/2 080-0050.90 080-0050L90 0.0100 1/8 0.0350 1 1/2 080-0100.90 080-0100L90 0.0150 1/8 0.0450 1 1/2 080-0150.90 080-0150L90 0.0200 1/8 0.0500 1 1/2 080-0200.90 080-0200L90 0.0312 1/8 0.0900 1 1/2 080-0312.90 080-0312L90 0.0625 1/8 0.2000 1 1/2 080-0625.90 080-0625L90 0.0938 1/8 0.2000 1 1/2 080-0938.90 080-0938L90 0.1250 1/8 0.2000 1 1/2 080-1250.90 080-1250L90 130° Included Point Angle Symbol Descriptions Page 7 Dimensions (in) Uncoated AITiN Coating +0.0000 L/ -0.0003 d L Part Number Stock Part Number Stock 0.0050 1/8 0.0250 1 1/2 080-0050.130 080-0050L130 0.0100 1/8 0.0350 1 1/2 080-0100.130 080-0100L1 30 0.0150 1/8 0.0450 1 1/2 080-0150.130 080-0150L1 30 0.0200 1/8 0.0500 1 1/2 080-0200.130 080-0200L130 0.0312 1/8 0.0900 1 1/2 080-0312.130 080-031 2L1 30 0.0625 1/8 0.2000 1 1/2 080-0625.130 080-0625L130 0.0938 1/8 0.2000 1 1/2 080-0938.130 080-0938L130 0.1250 1/8 0.2000 1 1/2 080-1250.130 080-1 250L1 30 SERIES 080 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC uUl Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic Q Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 18 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery
