21 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.19

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 19 0021 ENG Lab2u

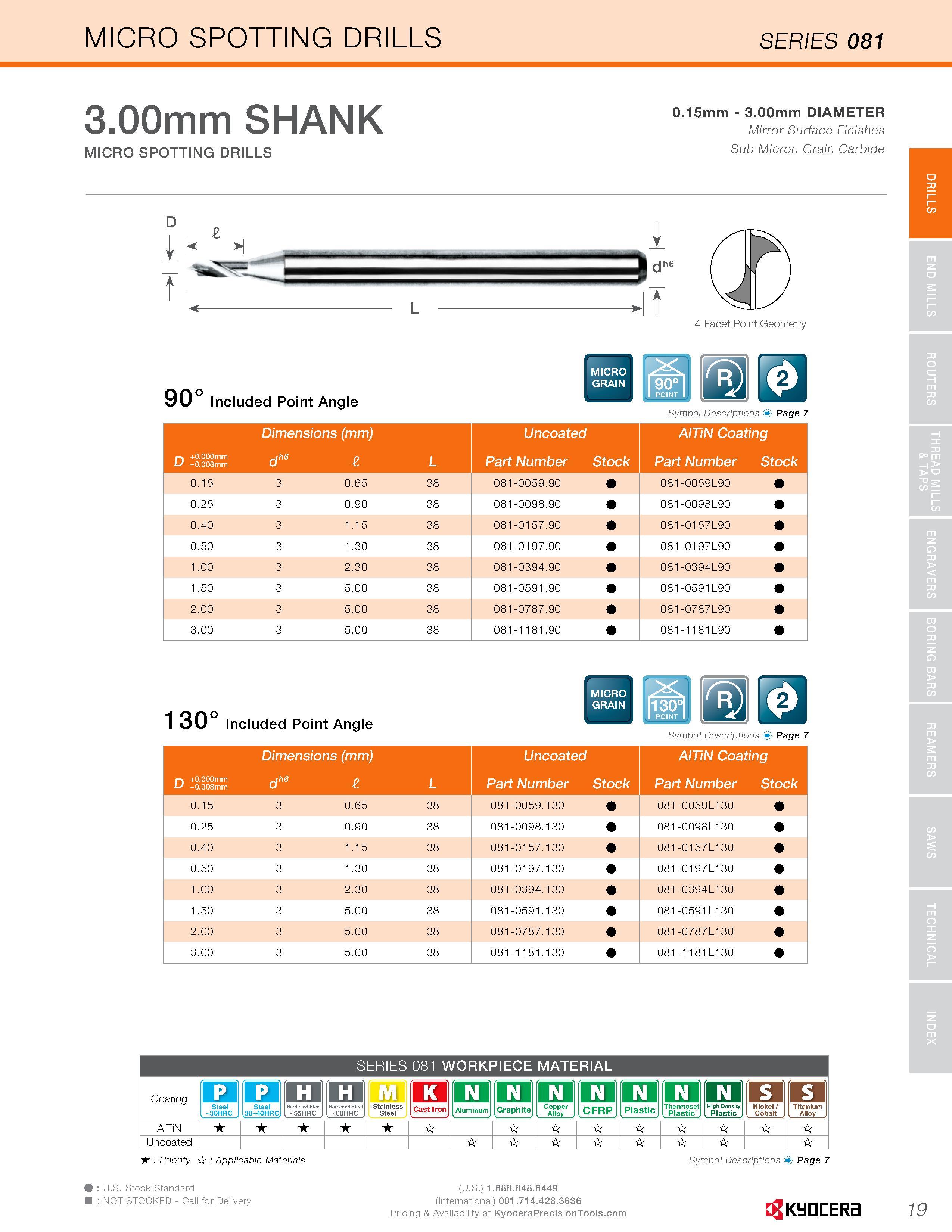

MICRO SPOTTING DRILLS SERIES 081 3.00mm SHANK MICRO SPOTTING DRILLS 0.15mm - 3.00mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide 90° Included Point Angle MICRO GRAIN I 00° Symbol Descriptions Page 7 Dimensions (mm) Uncoated AITiN Coating PI +0.000mm LJ -0.008mm dhG L Part Number Stock Part Number Stock 0.15 3 0.65 38 081-0059.90 081-0059L90 0.25 3 0.90 38 081-0098.90 081-0098L90 0.40 3 1.15 38 081-0157.90 081-01 57L90 0.50 3 1.30 38 081-0197.90 081-01 97L90 1.00 3 2.30 38 081-0394.90 081-0394L90 1.50 3 5.00 38 081-0591.90 081-0591L90 2.00 3 5.00 38 081-0787.90 081-0787L90 3.00 3 5.00 38 081-1181.90 081-1181 L90 130° Included Point Angle Symbol Descriptions Page 7 Dimensions (mm) Uncoated AITiN Coating pv +0.000mm U -0.008mm dhG I L Part Number Stock Part Number Stock 0.15 3 0.65 38 081-0059.130 081-0059L130 0.25 3 0.90 38 081-0098.130 081-0098L130 0.40 3 1.15 38 081-0157.130 081-0157L130 0.50 3 1.30 38 081-0197.130 081-0197L130 1.00 3 2.30 38 081-0394.130 081-0394L130 1.50 3 5.00 38 081-0591.130 081-0591L130 2.00 3 5.00 38 081-0787.130 081-0787L130 3.00 3 5.00 38 081-1181.130 081 -1181 L130 SERIES 081 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC O Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel O Aluminum O Graphite O Copper Alloy O CFRP O Plastic O Thermoset L Plastic O Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Kyocera 19 DRILLS
