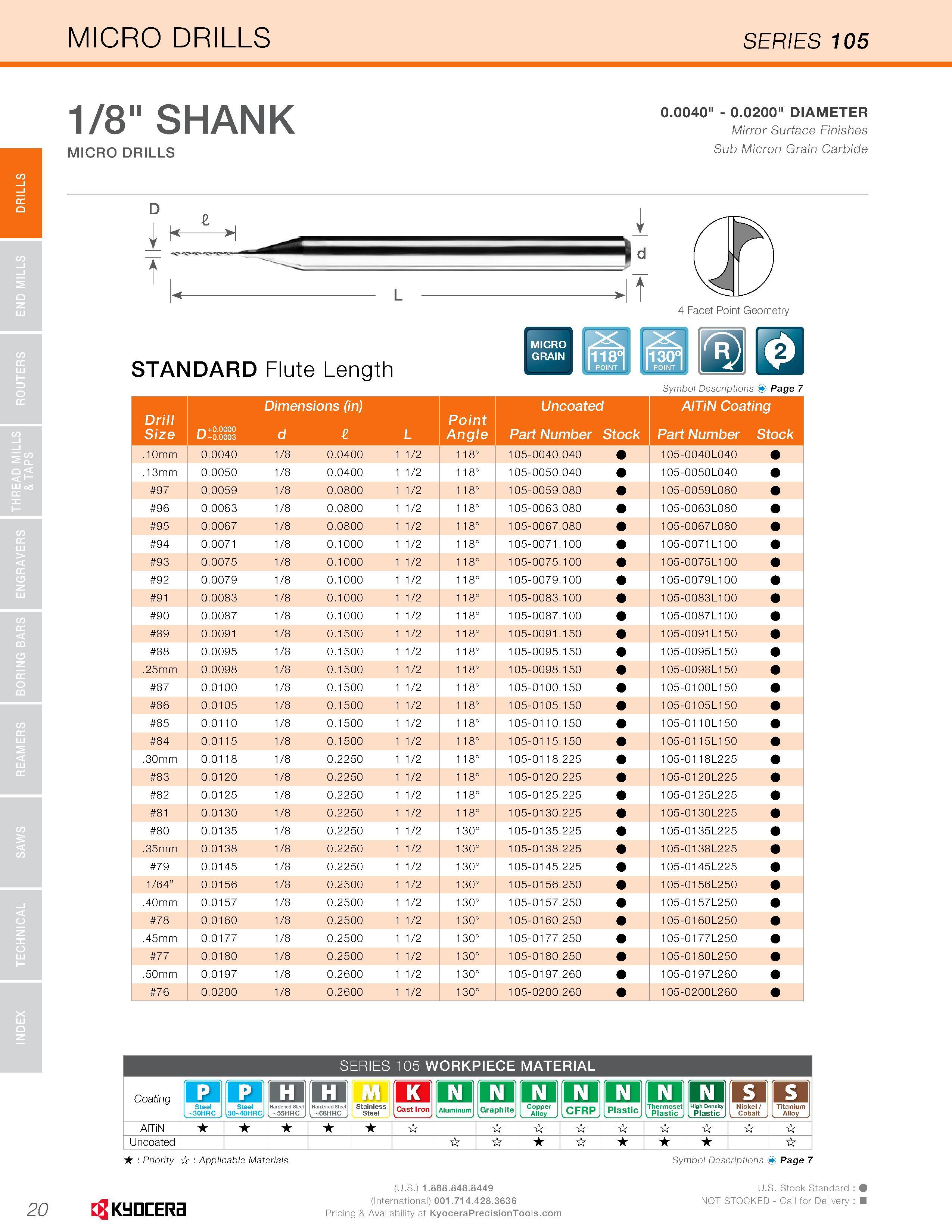

DRILLS MICRO DRILLS SERIES 105 1/8" SHANK MICRO DRILLS 0.0040" - 0.0200" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide STANDARD Flute Length Symbol Descriptions Page 7 Dimensions (in) Uncoated AITiN Coating Drill Point Size +0.0000 U-0.0003 d e L Angle Part Number Stock Part Number Stock .10mm 0.0040 1/8 0.0400 1 1/2 118° 105-0040.040 105-0040L040 .13mm 0.0050 1/8 0.0400 1 1/2 118° 105-0050.040 105-0050L040 97 0.0059 1/8 0.0800 1 1/2 118° 105-0059.080 105-0059L080 96 0.0063 1/8 0.0800 1 1/2 118° 105-0063.080 105-0063L080 95 0.0067 1/8 0.0800 1 1/2 118° 105-0067.080 105-0067L080 94 0.0071 1/8 0.1000 1 1/2 118° 105-0071.100 105-0071 L100 93 0.0075 1/8 0.1000 1 1/2 118° 105-0075.100 105-0075L100 92 0.0079 1/8 0.1000 1 1/2 118° 105-0079.100 105-0079L100 91 0.0083 1/8 0.1000 1 1/2 118° 105-0083.100 105-0083L100 90 0.0087 1/8 0.1000 1 1/2 118° 105-0087.100 1 05-0087L1 00 89 0.0091 1/8 0.1500 1 1/2 118° 105-0091.150 105-0091 L150 88 0.0095 1/8 0.1500 1 1/2 118° 105-0095.150 105-0095L150 .25mm 0.0098 1/8 0.1500 1 1/2 118° 105-0098.150 105-0098L150 87 0.0100 1/8 0.1500 1 1/2 118° 105-0100.150 105-01 00L1 50 86 0.0105 1/8 0.1500 1 1/2 118° 105-0105.150 105-01 05L150 85 0.0110 1/8 0.1500 1 1/2 118° 105-0110.150 105-0110L150 84 0.0115 1/8 0.1500 1 1/2 118° 105-0115.150 105-0115L150 .30mm 0.0118 1/8 0.2250 1 1/2 118° 105-0118.225 105-0118L225 83 0.0120 1/8 0.2250 1 1/2 118° 105-0120.225 105-01 20L225 82 0.0125 1/8 0.2250 1 1/2 118° 105-0125.225 105-01 25L225 81 0.0130 1/8 0.2250 1 1/2 118° 105-0130.225 105-01 30L225 80 0.0135 1/8 0.2250 1 1/2 130° 105-0135.225 105-01 35L225 .35mm 0.0138 1/8 0.2250 1 1/2 130° 105-0138.225 105-01 38L225 79 0.0145 1/8 0.2250 1 1/2 130° 105-0145.225 105-01 45L225 1 /64” 0.0156 1/8 0.2500 1 1/2 130° 105-0156.250 105-01 56L250 .40mm 0.0157 1/8 0.2500 1 1/2 130° 105-0157.250 105-01 57L250 78 0.0160 1/8 0.2500 1 1/2 130° 105-0160.250 105-01 60L250 .45mm 0.0177 1/8 0.2500 1 1/2 130° 105-0177.250 105-01 77L250 77 0.0180 1/8 0.2500 1 1/2 130° 105-0180.250 105-01 80L250 .50mm 0.0197 1/8 0.2600 1 1/2 130° 105-0197.260 105-01 97L260 76 0.0200 1/8 0.2600 1 1/2 130° 105-0200.260 105-0200L260 SERIES 105 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Jl Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic Q Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 20 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery
