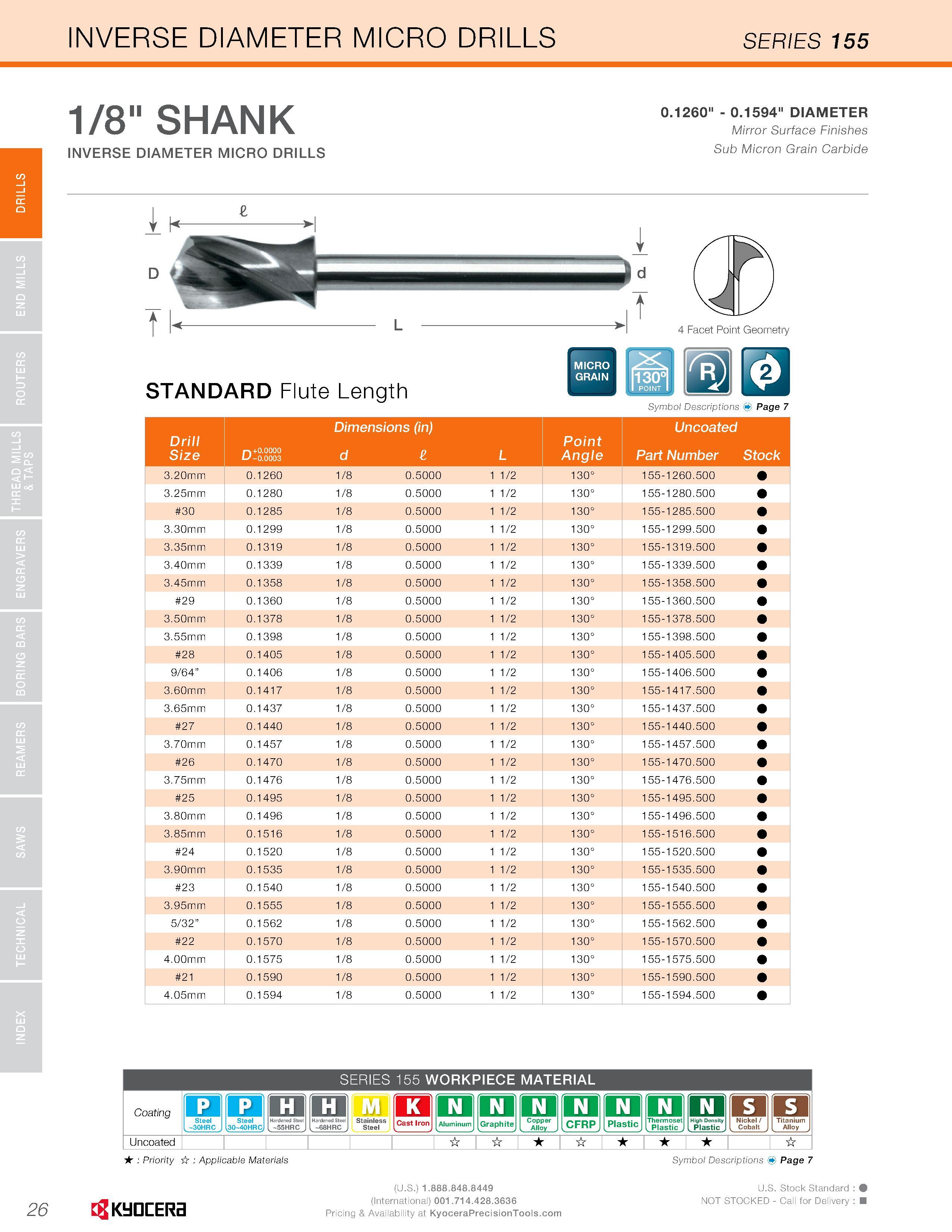

DRILLS INVERSE DIAMETER MICRO DRILLS SERIES 155 1/8" SHANK INVERSE DIAMETER MICRO DRILLS 0.1260" - 0.1594" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide 4 Facet Point Geometry STANDARD Flute Length r0 Symbol Descriptions Page 7 Drill Size +0.0000 -0.0003 Dimensions (in) d L Point Angle Uncoated Part Number Stock 3.20mm 0.1260 1/8 0.5000 1 1/2 130° 155-1260.500 3.25mm 0.1280 1/8 0.5000 1 1/2 130° 155-1280.500 30 0.1285 1/8 0.5000 1 1/2 130° 155-1285.500 3.30mm 0.1299 1/8 0.5000 1 1/2 130° 155-1299.500 3.35mm 0.1319 1/8 0.5000 1 1/2 130° 155-1319.500 3.40mm 0.1339 1/8 0.5000 1 1/2 130° 155-1339.500 3.45mm 0.1358 1/8 0.5000 1 1/2 130° 155-1358.500 29 0.1360 1/8 0.5000 1 1/2 130° 155-1360.500 3.50mm 0.1378 1/8 0.5000 1 1/2 130° 155-1378.500 3.55mm 0.1398 1/8 0.5000 1 1/2 130° 155-1398.500 28 0.1405 1/8 0.5000 1 1/2 130° 155-1405.500 9/64” 0.1406 1/8 0.5000 1 1/2 130° 155-1406.500 3.60mm 0.1417 1/8 0.5000 1 1/2 130° 155-1417.500 3.65mm 0.1437 1/8 0.5000 1 1/2 130° 155-1437.500 27 0.1440 1/8 0.5000 1 1/2 130° 155-1440.500 3.70mm 0.1457 1/8 0.5000 1 1/2 130° 155-1457.500 26 0.1470 1/8 0.5000 1 1/2 130° 155-1470.500 3.75mm 0.1476 1/8 0.5000 1 1/2 130° 155-1476.500 25 0.1495 1/8 0.5000 1 1/2 130° 155-1495.500 3.80mm 0.1496 1/8 0.5000 1 1/2 130° 155-1496.500 3.85mm 0.1516 1/8 0.5000 1 1/2 130° 155-1516.500 24 0.1520 1/8 0.5000 1 1/2 130° 155-1520.500 3.90mm 0.1535 1/8 0.5000 1 1/2 130° 155-1535.500 23 0.1540 1/8 0.5000 1 1/2 130° 155-1540.500 3.95mm 0.1555 1/8 0.5000 1 1/2 130° 155-1555.500 5/32” 0.1562 1/8 0.5000 1 1/2 130° 155-1562.500 22 0.1570 1/8 0.5000 1 1/2 130° 155-1570.500 4.00mm 0.1575 1/8 0.5000 1 1/2 130° 155-1575.500 21 0.1590 1/8 0.5000 1 1/2 130° 155-1590.500 4.05mm 0.1594 1/8 0.5000 1 1/2 130° 155-1594.500 SERIES 155 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel K Aluminum Q Graphite Q Copper Alloy Q CFRP Q Plastic Q Thermoset Plastic . o Plastic s s j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J Uncoated I Priority Or Applicable Materials Symbol Descriptions Page 7 26 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery
