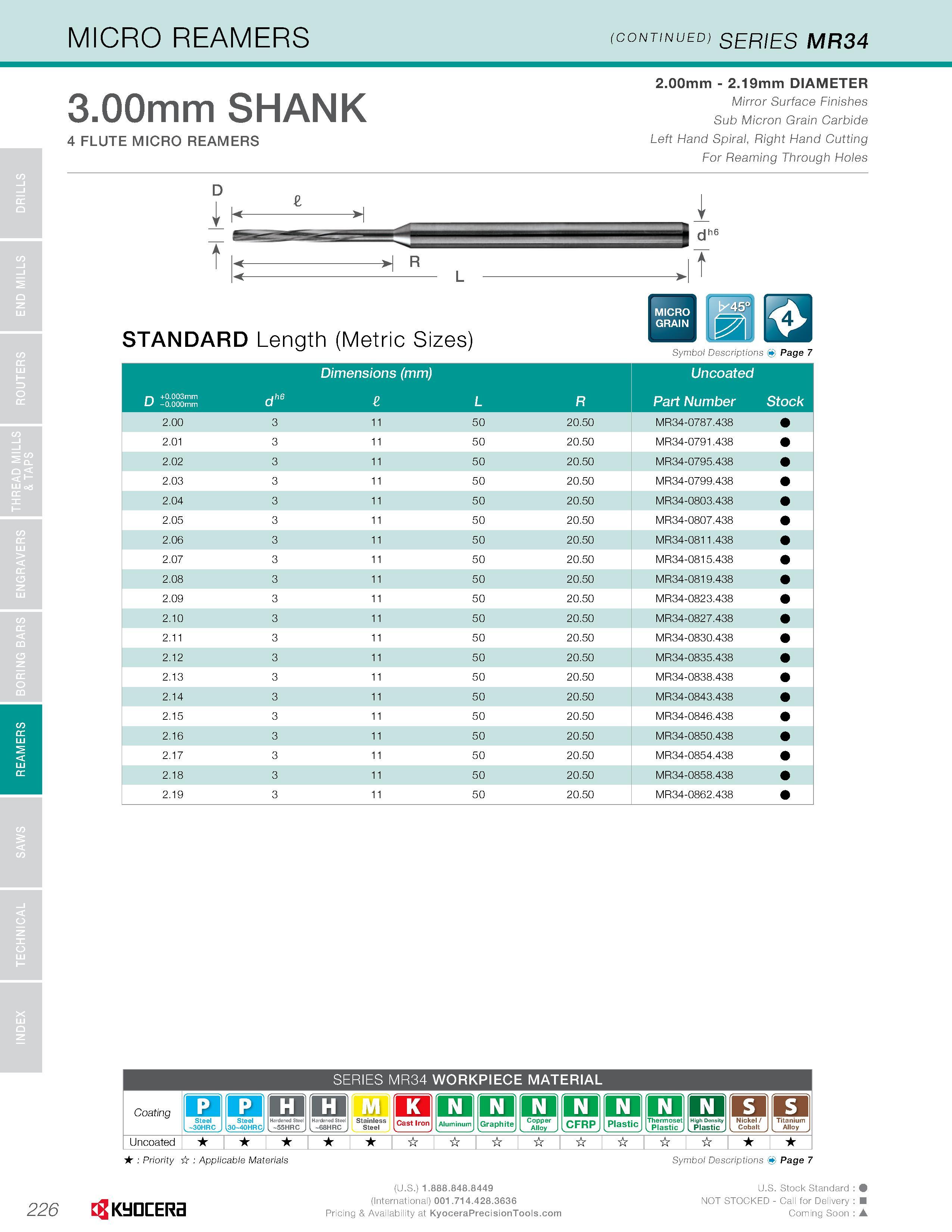

REAMERS MICRO REAMERS (continued) SERIES MR34 226 3.00mm SHANK 4 FLUTE MICRO REAMERS 2.00mm - 2.19mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Left Fland Spiral, Right Fland Cutting For Reaming Through Holes STANDARD Length (Metric Sizes) Symbol Descriptions Page 7 i-i +0.003mm LJ -0.000mm dh6 Dimensions (mm) L R Uncoated Part Number Stock 2.00 3 11 50 20.50 MR34-0787.438 2.01 3 11 50 20.50 MR34-0791.438 2.02 3 11 50 20.50 MR34-0795.438 2.03 3 11 50 20.50 MR34-0799.438 2.04 3 11 50 20.50 MR34-0803.438 2.05 3 11 50 20.50 MR34-0807.438 2.06 3 11 50 20.50 MR34-0811.438 2.07 3 11 50 20.50 MR34-0815.438 2.08 3 11 50 20.50 MR34-0819.438 2.09 3 11 50 20.50 MR34-0823.438 2.10 3 11 50 20.50 MR34-0827.438 2.11 3 11 50 20.50 MR34-0830.438 2.12 3 11 50 20.50 MR34-0835.438 2.13 3 11 50 20.50 MR34-0838.438 2.14 3 11 50 20.50 MR34-0843.438 2.15 3 11 50 20.50 MR34-0846.438 2.16 3 11 50 20.50 MR34-0850.438 2.17 3 11 50 20.50 MR34-0854.438 2.18 3 11 50 20.50 MR34-0858.438 2.19 3 11 50 20.50 MR34-0862.438 SERIES MR34 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC i'jJ Stainless Steel K Aluminum Q Graphite Q Copper Alloy o CFRP o Plastic Q Thermoset . Plastic . o Plastic I s I s j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J Uncoated Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
