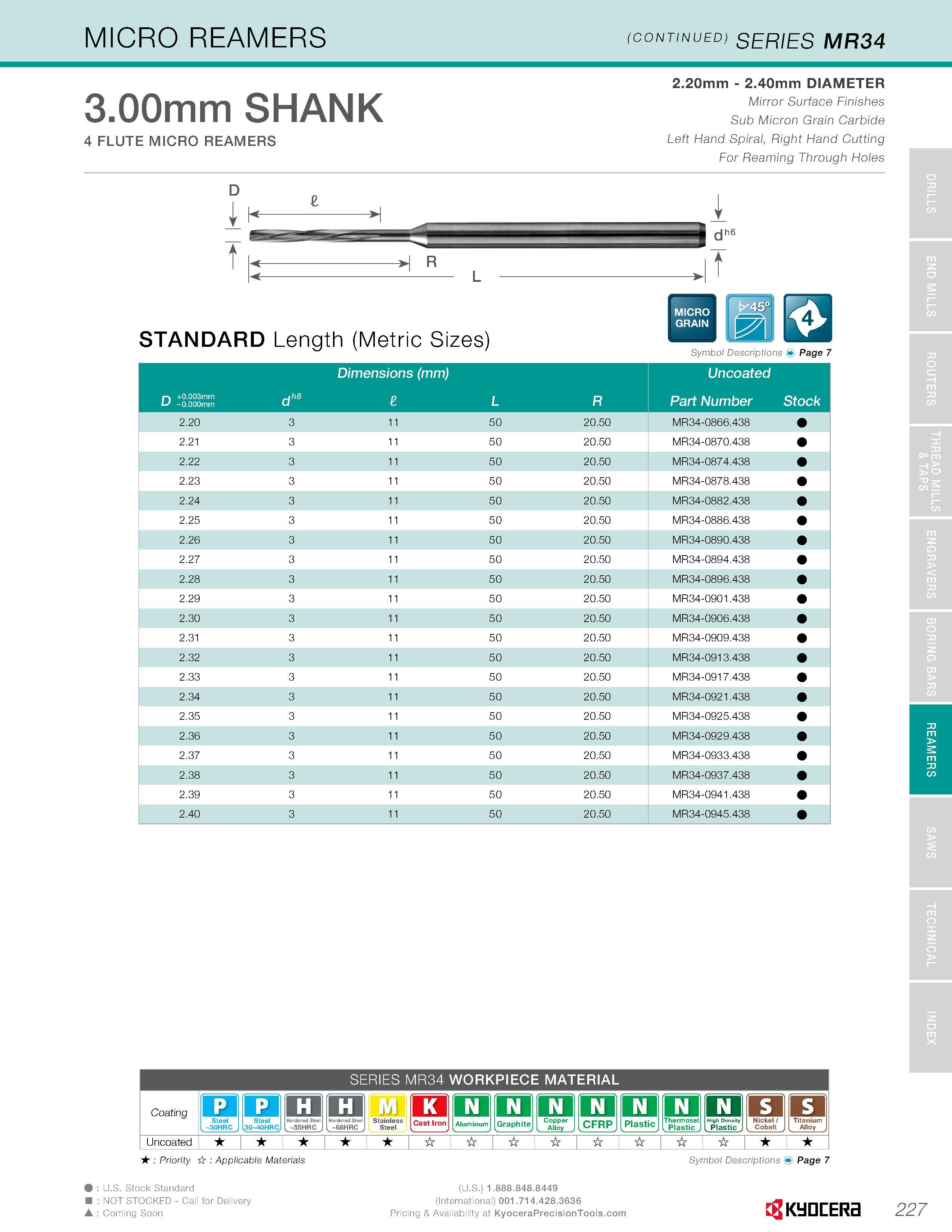

MICRO REAMERS (continued) SERIES MR34 3.00mm SHANK 4 FLUTE MICRO REAMERS 2.20mm - 2.40mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Left Fland Spiral, Right Fland Cutting For Reaming Through Holes STANDARD Length (Metric Sizes) m Symbol Descriptions Page 7 Dimensions (mm) Uncoated i-j +0.003mm U -0.000mm dh6 L R Part Number Stock 2.20 3 1 50 20.50 MR34-0866.438 2.21 3 1 50 20.50 MR34-0870.438 2.22 3 1 50 20.50 MR34-0874.438 2.23 3 1 50 20.50 MR34-0878.438 2.24 3 1 50 20.50 MR34-0882.438 2.25 3 1 50 20.50 MR34-0886.438 2.26 3 1 50 20.50 MR34-0890.438 2.27 3 1 50 20.50 MR34-0894.438 2.28 3 1 50 20.50 MR34-0896.438 2.29 3 1 50 20.50 MR34-0901.438 2.30 3 1 50 20.50 MR34-0906.438 2.31 3 1 50 20.50 MR34-0909.438 2.32 3 1 50 20.50 MR34-0913.438 2.33 3 1 50 20.50 MR34-0917.438 2.34 3 1 50 20.50 MR34-0921.438 2.35 3 1 50 20.50 MR34-0925.438 2.36 3 1 50 20.50 MR34-0929.438 2.37 3 1 50 20.50 MR34-0933.438 2.38 3 1 50 20.50 MR34-0937.438 2.39 3 1 50 20.50 MR34-0941.438 2.40 3 1 50 20.50 MR34-0945.438 SERIES MR34 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Ai Stainless Steel K Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic o Thermoset . Plastic . o Plastic s s j Cast Ironj Nickel/ t Cobalt J Titanium Alloy J Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera REAMERS
