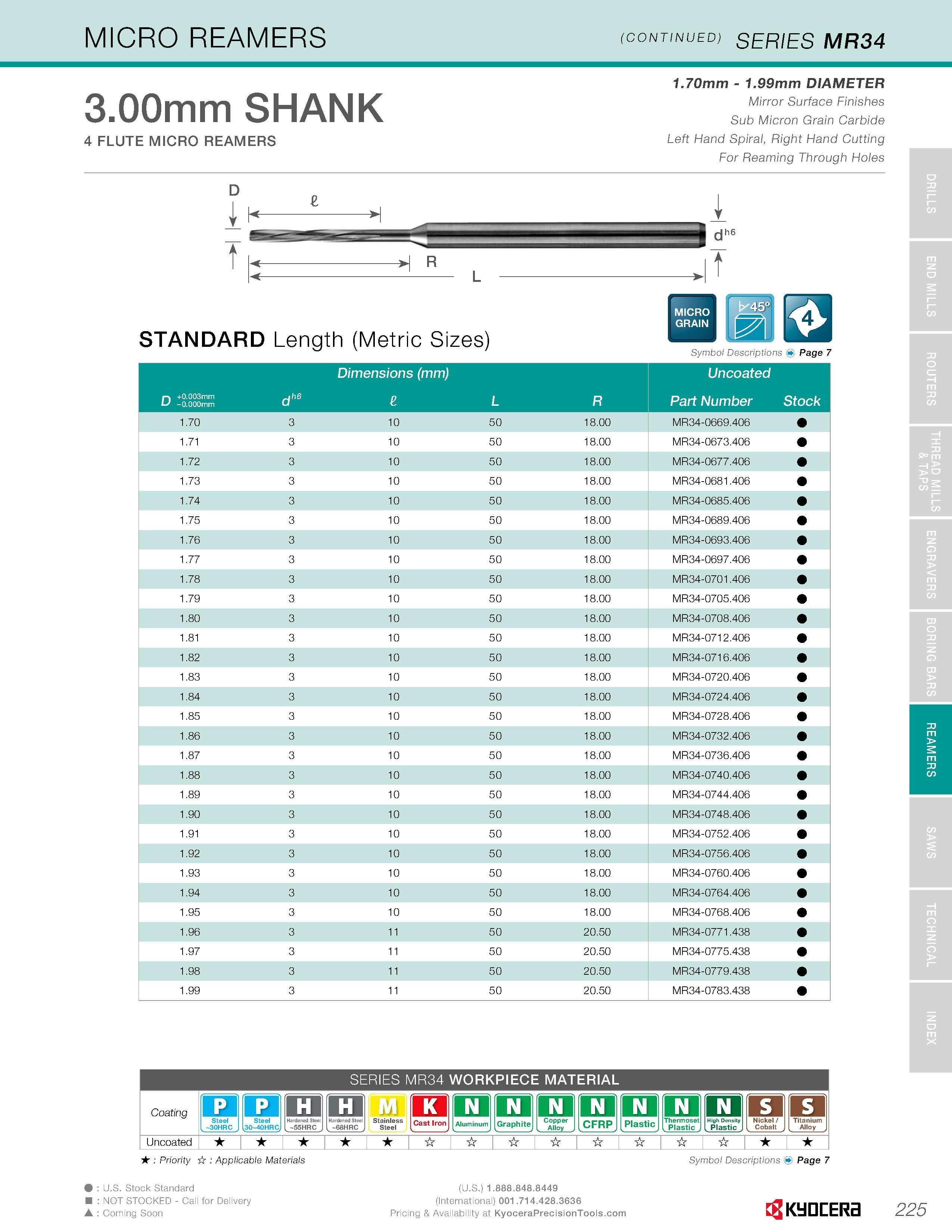

MICRO REAMERS (continued) SERIES MR34 3.00mm SHANK 4 FLUTE MICRO REAMERS 1.70mm - 1.99mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Left Hand Spiral, Right Hand Cutting For Reaming Through Holes STANDARD Length (Metric Sizes) m Symbol Descriptions Page 7 Dimensions (mm) Uncoated i-j +0.003mm L' -0.000mm dh6 L R Part Number Stock 1.70 3 10 50 18.00 MR34-0669.406 1.71 3 10 50 18.00 MR34-0673.406 1.72 3 10 50 18.00 MR34-0677.406 1.73 3 10 50 18.00 MR34-0681.406 1.74 3 10 50 18.00 MR34-0685.406 1.75 3 10 50 18.00 MR34-0689.406 1.76 3 10 50 18.00 MR34-0693.406 1.77 3 10 50 18.00 MR34-0697.406 1.78 3 10 50 18.00 MR34-0701.406 1.79 3 10 50 18.00 MR34-0705.406 1.80 3 10 50 18.00 MR34-0708.406 1.81 3 10 50 18.00 MR34-0712.406 1.82 3 10 50 18.00 MR34-0716.406 1.83 3 10 50 18.00 MR34-0720.406 1.84 3 10 50 18.00 MR34-0724.406 1.85 3 10 50 18.00 MR34-0728.406 1.86 3 10 50 18.00 MR34-0732.406 1.87 3 10 50 18.00 MR34-0736.406 1.88 3 10 50 18.00 MR34-0740.406 1.89 3 10 50 18.00 MR34-0744.406 1.90 3 10 50 18.00 MR34-0748.406 1.91 3 10 50 18.00 MR34-0752.406 1.92 3 10 50 18.00 MR34-0756.406 1.93 3 10 50 18.00 MR34-0760.406 1.94 3 10 50 18.00 MR34-0764.406 1.95 3 10 50 18.00 MR34-0768.406 1.96 3 11 50 20.50 MR34-0771.438 1.97 3 11 50 20.50 MR34-0775.438 1.98 3 11 50 20.50 MR34-0779.438 1.99 3 11 50 20.50 MR34-0783.438 SERIES MR34 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Ai Stainless Steel K Aluminuin Q Graphite o Copper Alloy o CFRP Q Plastic o Thermoset . Plastic . o Plastic s s j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 225 REAMERS
