230 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.228

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 228 0230 ENG Lab2u

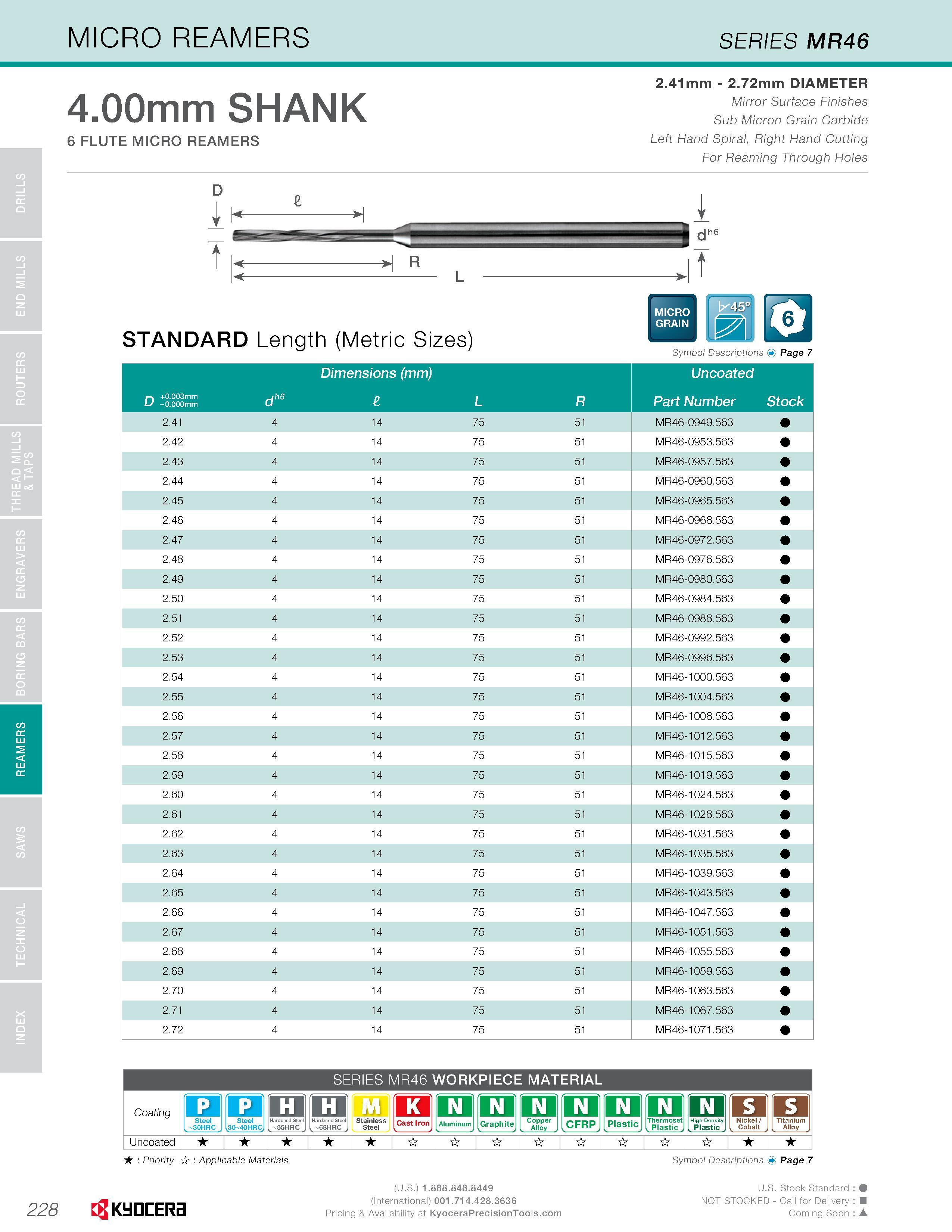

REAMERS MICRO REAMERS SERIES MR46 228 4.00mm SHANK 6 FLUTE MICRO REAMERS 2.41mm - 2.72mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Left Fland Spiral, Right Fland Cutting For Reaming Through Holes STANDARD Length (Metric Sizes) Symbol Descriptions Page 7 i-i +0.003mm LJ -0.000mm dh6 Dimensions (mm) L R Uncoated Part Number Stock 2.41 4 14 75 51 MR46-0949.563 2.42 4 14 75 51 MR46-0953.563 2.43 4 14 75 51 MR46-0957.563 2.44 4 14 75 51 MR46-0960.563 2.45 4 14 75 51 MR46-0965.563 2.46 4 14 75 51 MR46-0968.563 2.47 4 14 75 51 MR46-0972.563 2.48 4 14 75 51 MR46-0976.563 2.49 4 14 75 51 MR46-0980.563 2.50 4 14 75 51 MR46-0984.563 2.51 4 14 75 51 MR46-0988.563 2.52 4 14 75 51 MR46-0992.563 2.53 4 14 75 51 MR46-0996.563 2.54 4 14 75 51 MR46-1000.563 2.55 4 14 75 51 MR46-1004.563 2.56 4 14 75 51 MR46-1008.563 2.57 4 14 75 51 MR46-1012.563 2.58 4 14 75 51 MR46-1015.563 2.59 4 14 75 51 MR46-1019.563 2.60 4 14 75 51 MR46-1024.563 2.61 4 14 75 51 MR46-1028.563 2.62 4 14 75 51 MR46-1031.563 2.63 4 14 75 51 MR46-1035.563 2.64 4 14 75 51 MR46-1039.563 2.65 4 14 75 51 MR46-1043.563 2.66 4 14 75 51 MR46-1047.563 2.67 4 14 75 51 MR46-1051.563 2.68 4 14 75 51 MR46-1055.563 2.69 4 14 75 51 MR46-1059.563 2.70 4 14 75 51 MR46-1063.563 2.71 4 14 75 51 MR46-1067.563 2.72 4 14 75 51 MR46-1071.563 SERIES MR46 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC iA Stainless Steel K Aluminum Q Graphite Q Copper Alloy o CFRP o Plastic Q Thermoset . Plastic . o Plastic I s I s j Cast Ironj Nickel/ t Cobalt J Titanium Alloy J Uncoated Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
