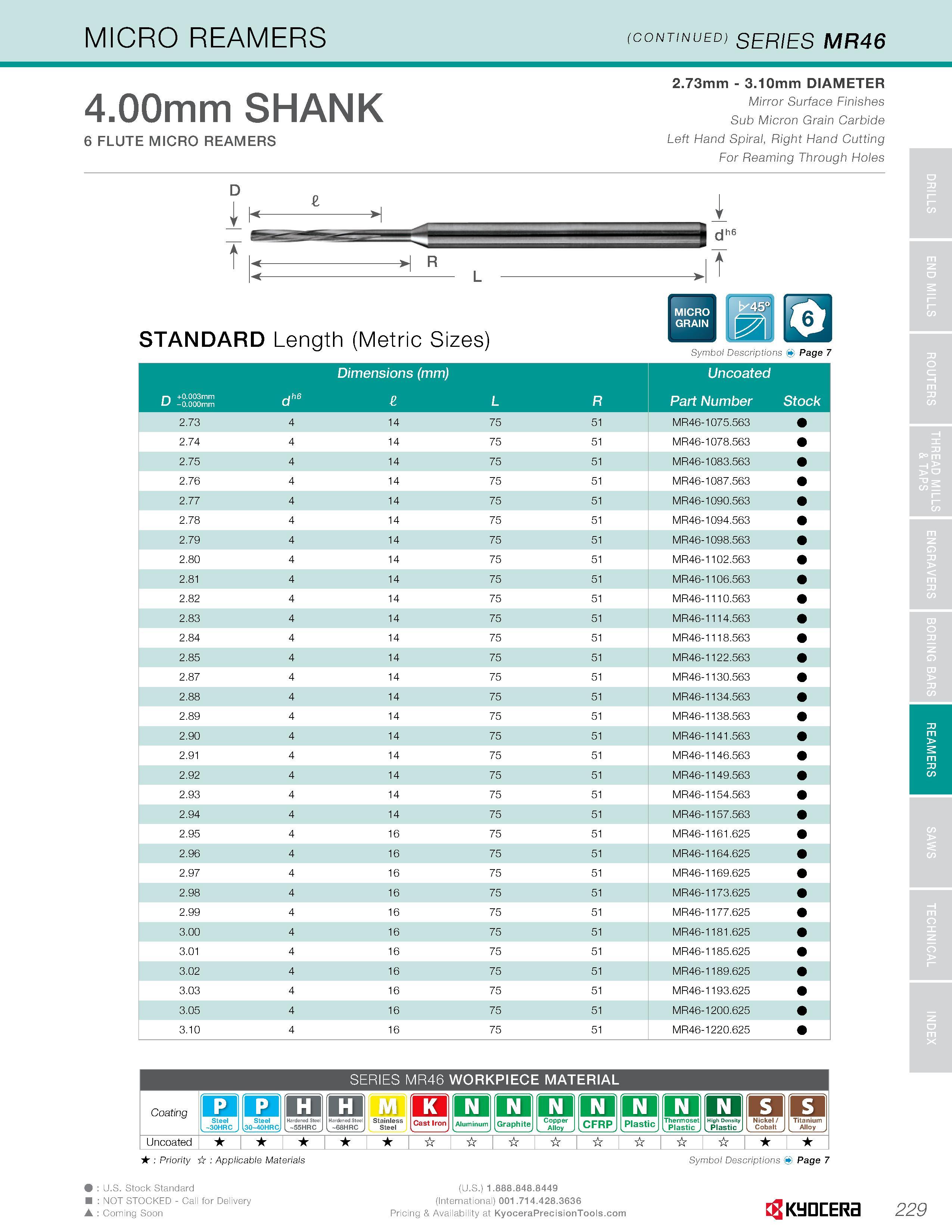

231 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.229

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 229 0231 ENG Lab2u

MICRO REAMERS (continued) SERIES MR46 4.00mm SHANK 6 FLUTE MICRO REAMERS 2.73mm - 3.10mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Left Fland Spiral, Right Fland Cutting For Reaming Through Floles STANDARD Length (Metric Sizes) illm Symbol Descriptions Page 7 pv +0.003mm -0.000mm dh6 Dimensions (mm) L R Uncoated Part Number Stock 2.73 4 14 75 51 MR46-1075.563 2.74 4 14 75 51 MR46-1078.563 2.75 4 14 75 51 MR46-1083.563 2.76 4 14 75 51 MR46-1087.563 2.77 4 14 75 51 MR46-1090.563 2.78 4 14 75 51 MR46-1094.563 2.79 4 14 75 51 MR46-1098.563 2.80 4 14 75 51 MR46-1102.563 2.81 4 14 75 51 MR46-1106.563 2.82 4 14 75 51 MR46-1110.563 2.83 4 14 75 51 MR46-1114.563 2.84 4 14 75 51 MR46-1118.563 2.85 4 14 75 51 MR46-1122.563 2.87 4 14 75 51 MR46-1130.563 2.88 4 14 75 51 MR46-1134.563 2.89 4 14 75 51 MR46-1138.563 2.90 4 14 75 51 MR46-1141.563 2.91 4 14 75 51 MR46-1146.563 2.92 4 14 75 51 MR46-1149.563 2.93 4 14 75 51 MR46-1154.563 2.94 4 14 75 51 MR46-1157.563 2.95 4 16 75 51 MR46-1161.625 2.96 4 16 75 51 MR46-1164.625 2.97 4 16 75 51 MR46-1169.625 2.98 4 16 75 51 MR46-1173.625 2.99 4 16 75 51 MR46-1177.625 3.00 4 16 75 51 MR46-1181.625 3.01 4 16 75 51 MR46-1185.625 3.02 4 16 75 51 MR46-1189.625 3.03 4 16 75 51 MR46-1193.625 3.05 4 16 75 51 MR46-1200.625 3.10 4 16 75 51 MR46-1220.625 SERIES MR46 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC A) Stainless Steel K Aluminum Q Graphite Q Copper Alloy o CFRP o Plastic Q Thermoset . Plastic . o Plastic I s I s j Cast Ironj Nickel/ t Cobalt J Titanium Alloy J Uncoated it: Priority Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 229 REAMERS
