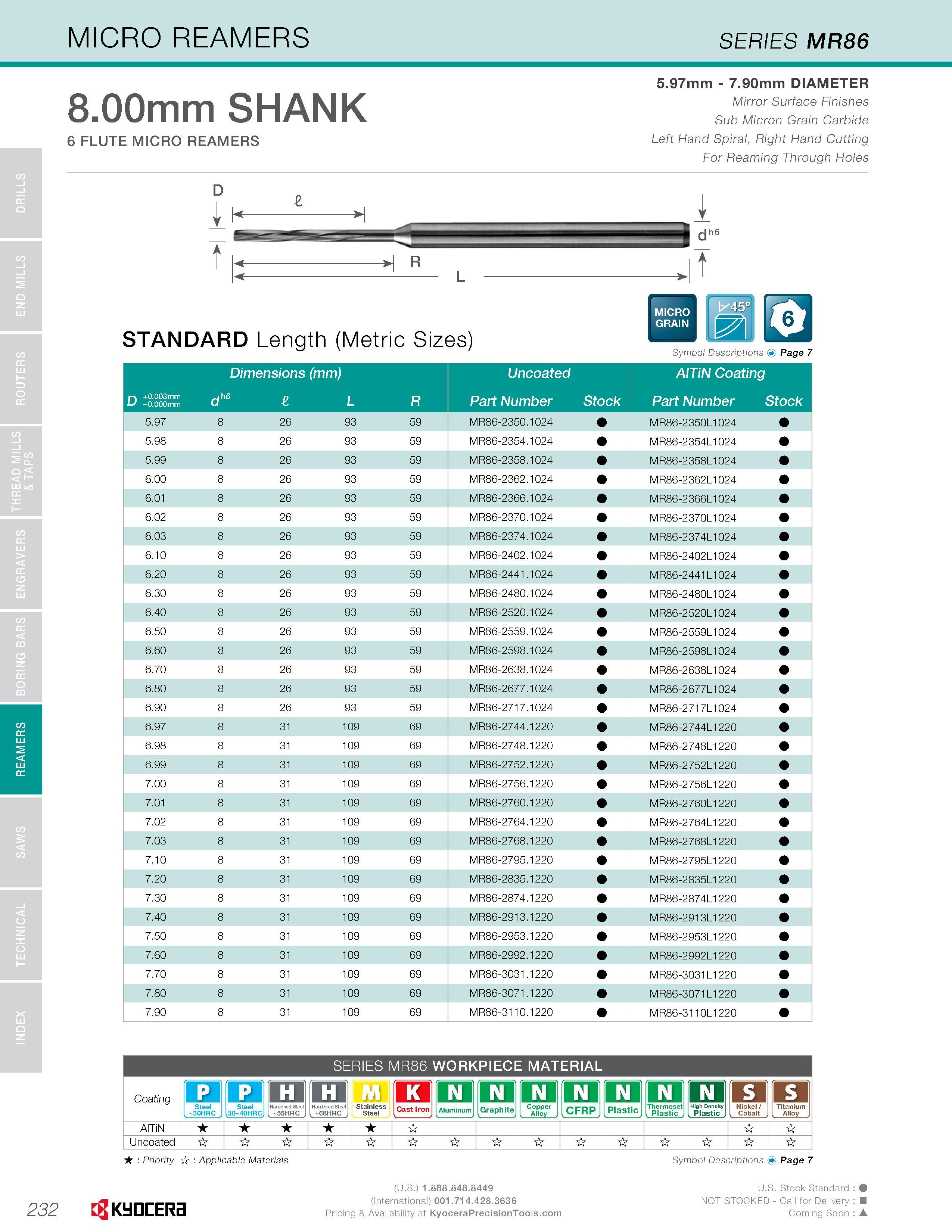

REAMERS MICRO REAMERS SERIES MR86 232 5.97mm - 7.90mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Left Fland Spiral, Right Fland Cutting For Reaming Through Floles 8.00mm SHANK 6 FLUTE MICRO REAMERS STANDARD Length (Metric Sizes) Symbol Descriptions Page 7 Dimensions (mm) Uncoated AITiN Coating +0.003mm - -0.000mm dhe L R Part Number Stock Part Number Stock 5.97 8 26 93 59 MR86-2350.1024 MR86-2350L1024 5.98 8 26 93 59 MR86-2354.1024 MR86-2354L1024 5.99 8 26 93 59 MR86-2358.1024 MR86-2358L1024 6.00 8 26 93 59 MR86-2362.1024 MR86-2362L1024 6.01 8 26 93 59 MR86-2366.1024 MR86-2366L1024 6.02 8 26 93 59 MR86-2370.1024 MR86-2370L1024 6.03 8 26 93 59 MR86-2374.1024 MR86-2374L1024 6.10 8 26 93 59 MR86-2402.1024 MR86-2402L1024 6.20 8 26 93 59 MR86-2441.1024 MR86-2441L1024 6.30 8 26 93 59 MR86-2480.1024 MR86-2480L1024 6.40 8 26 93 59 MR86-2520.1024 MR86-2520L1024 6.50 8 26 93 59 MR86-2559.1024 MR86-2559L1024 6.60 8 26 93 59 MR86-2598.1024 MR86-2598L1024 6.70 8 26 93 59 MR86-2638.1024 MR86-2638L1024 6.80 8 26 93 59 MR86-2677.1024 MR86-2677L1024 6.90 8 26 93 59 MR86-2717.1024 MR86-2717L1024 6.97 8 31 109 69 MR86-2744.1220 MR86-2744L1220 6.98 8 31 109 69 MR86-2748.1220 MR86-2748L1220 6.99 8 31 109 69 MR86-2752.1220 MR86-2752L1220 7.00 8 31 109 69 MR86-2756.1220 MR86-2756L1220 7.01 8 31 109 69 MR86-2760.1220 MR86-2760L1220 7.02 8 31 109 69 MR86-2764.1220 MR86-2764L1220 7.03 8 31 109 69 MR86-2768.1220 MR86-2768L1220 7.10 8 31 109 69 MR86-2795.1220 MR86-2795L1220 7.20 8 31 109 69 MR86-2835.1220 MR86-2835L1220 7.30 8 31 109 69 MR86-2874.1220 MR86-2874L1220 7.40 8 31 109 69 MR86-2913.1220 MR86-2913L1220 7.50 8 31 109 69 MR86-2953.1220 MR86-2953L1220 7.60 8 31 109 69 MR86-2992.1220 MR86-2992L1220 7.70 8 31 109 69 MR86-3031.1220 MR86-3031L1220 7.80 8 31 109 69 MR86-3071.1220 MR86-3071L1220 7.90 8 31 109 69 MR86-3110.1220 MR86-3110L1220 SERIES MR86 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
