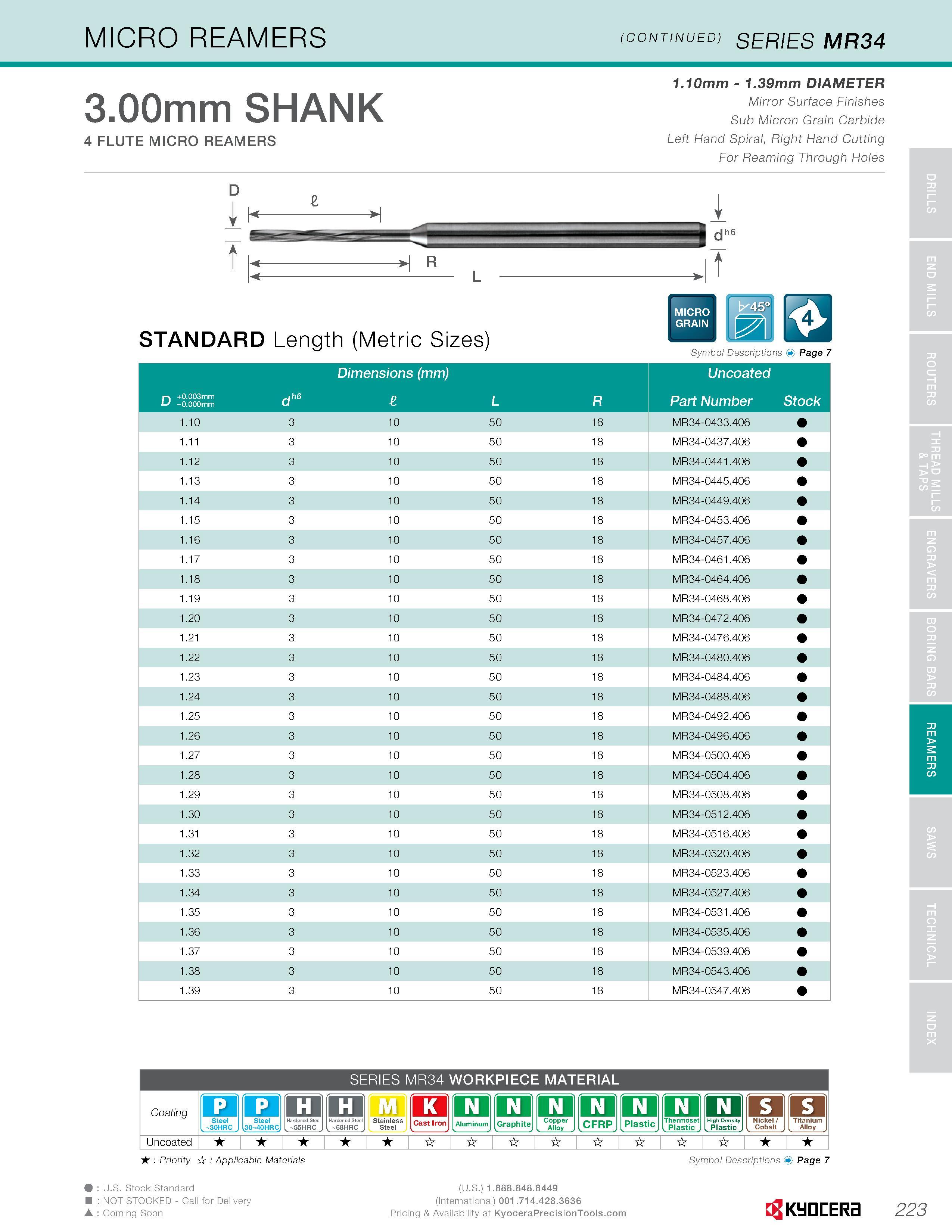

MICRO REAMERS (continued) SERIES MR34 3.00mm SHANK 4 FLUTE MICRO REAMERS 1.10mm - 1.39mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Left Hand Spiral, Right Hand Cutting For Reaming Through Holes STANDARD Length (Metric Sizes) m Symbol Descriptions Page 7 Dimensions (mm) Uncoated i-j +0.003mm L' -0.000mm dh6 L R Part Number Stock 1.10 3 10 50 18 MR34-0433.406 1.11 3 10 50 18 MR34-0437.406 1.12 3 10 50 18 MR34-0441.406 1.13 3 10 50 18 MR34-0445.406 1.14 3 10 50 18 MR34-0449.406 1.15 3 10 50 18 MR34-0453.406 1.16 3 10 50 18 MR34-0457.406 1.17 3 10 50 18 MR34-0461.406 1.18 3 10 50 18 MR34-0464.406 1.19 3 10 50 18 MR34-0468.406 1.20 3 10 50 18 MR34-0472.406 1.21 3 10 50 18 MR34-0476.406 1.22 3 10 50 18 MR34-0480.406 1.23 3 10 50 18 MR34-0484.406 1.24 3 10 50 18 MR34-0488.406 1.25 3 10 50 18 MR34-0492.406 1.26 3 10 50 18 MR34-0496.406 1.27 3 10 50 18 MR34-0500.406 1.28 3 10 50 18 MR34-0504.406 1.29 3 10 50 18 MR34-0508.406 1.30 3 10 50 18 MR34-0512.406 1.31 3 10 50 18 MR34-0516.406 1.32 3 10 50 18 MR34-0520.406 1.33 3 10 50 18 MR34-0523.406 1.34 3 10 50 18 MR34-0527.406 1.35 3 10 50 18 MR34-0531.406 1.36 3 10 50 18 MR34-0535.406 1.37 3 10 50 18 MR34-0539.406 1.38 3 10 50 18 MR34-0543.406 1.39 3 10 50 18 MR34-0547.406 SERIES MR34 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Ai Stainless Steel K Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic o Thermoset . Plastic . o Plastic s s j Cast Ironj Nickel/ t Cobalt J Titanium Alloy J Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 223 REAMERS
