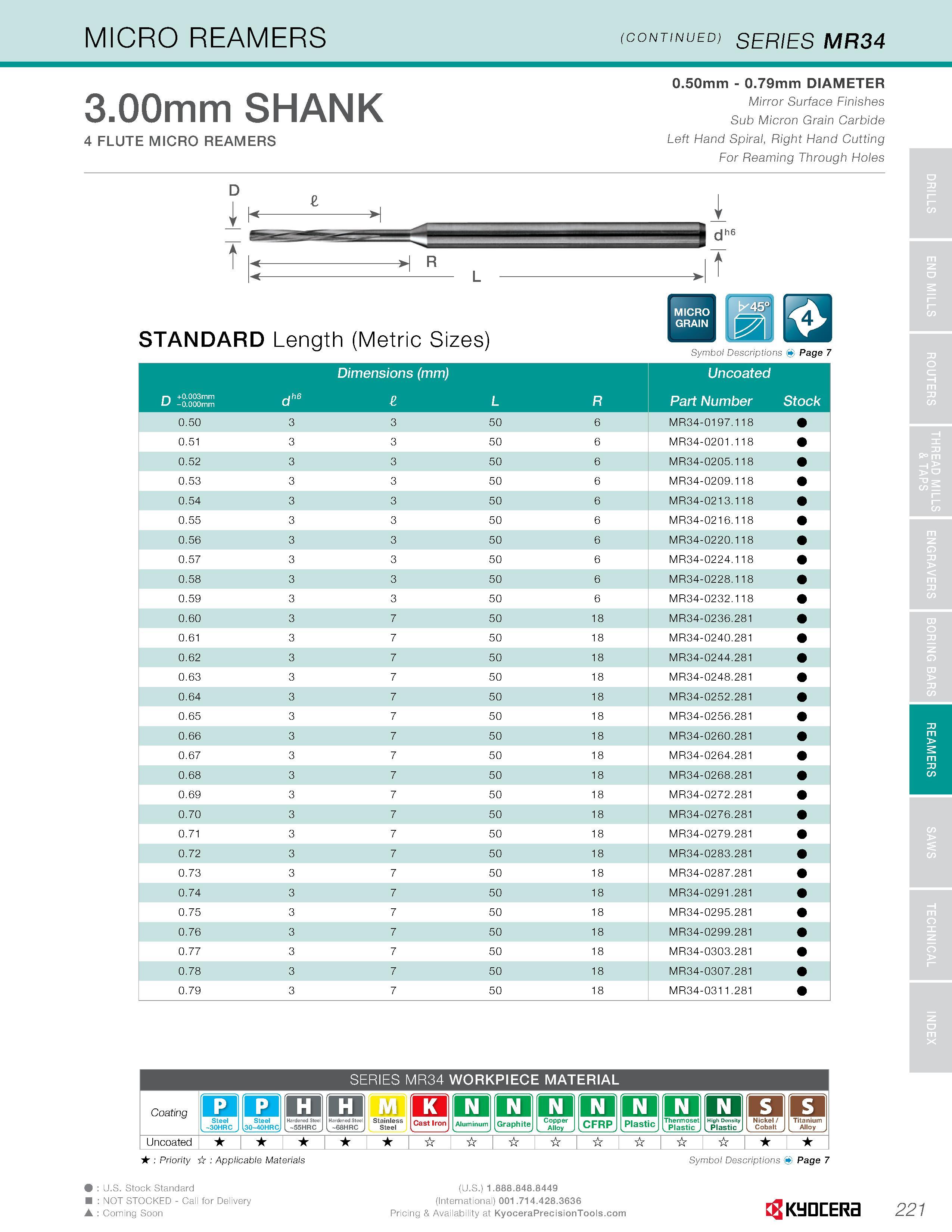

MICRO REAMERS (continued) SERIES MR34 3.00mm SHANK 4 FLUTE MICRO REAMERS 0.50mm - 0.79mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Left Fland Spiral, Right Fland Cutting For Reaming Through Holes STANDARD Length (Metric Sizes) m Symbol Descriptions Page 7 Dimensions (mm) Uncoated i-j +0.003mm U -0.000mm dh6 L R Part Number Stock 0.50 3 3 50 6 MR34-0197.118 0.51 3 3 50 6 MR34-0201.118 0.52 3 3 50 6 MR34-0205.118 0.53 3 3 50 6 MR34-0209.118 0.54 3 3 50 6 MR34-0213.118 0.55 3 3 50 6 MR34-0216.118 0.56 3 3 50 6 MR34-0220.118 0.57 3 3 50 6 MR34-0224.118 0.58 3 3 50 6 MR34-0228.118 0.59 3 3 50 6 MR34-0232.11 8 0.60 3 7 50 18 MR34-0236.281 0.61 3 7 50 18 MR34-0240.281 0.62 3 7 50 18 MR34-0244.281 0.63 3 7 50 18 MR34-0248.281 0.64 3 7 50 18 MR34-0252.281 0.65 3 7 50 18 MR34-0256.281 0.66 3 7 50 18 MR34-0260.281 0.67 3 7 50 18 MR34-0264.281 0.68 3 7 50 18 MR34-0268.281 0.69 3 7 50 18 MR34-0272.281 0.70 3 7 50 18 MR34-0276.281 0.71 3 7 50 18 MR34-0279.281 0.72 3 7 50 18 MR34-0283.281 0.73 3 7 50 18 MR34-0287.281 0.74 3 7 50 18 MR34-0291.281 0.75 3 7 50 18 MR34-0295.281 0.76 3 7 50 18 MR34-0299.281 0.77 3 7 50 18 MR34-0303.281 0.78 3 7 50 18 MR34-0307.281 0.79 3 7 50 18 MR34-0311.281 SERIES MR34 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel K Aluminuin o Graphite Q Copper Alloy o CFRP o Plastic Q Thermoset . Plastic . o Plastic s s j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera REAMERS
