222 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.220

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 220 0222 ENG Lab2u

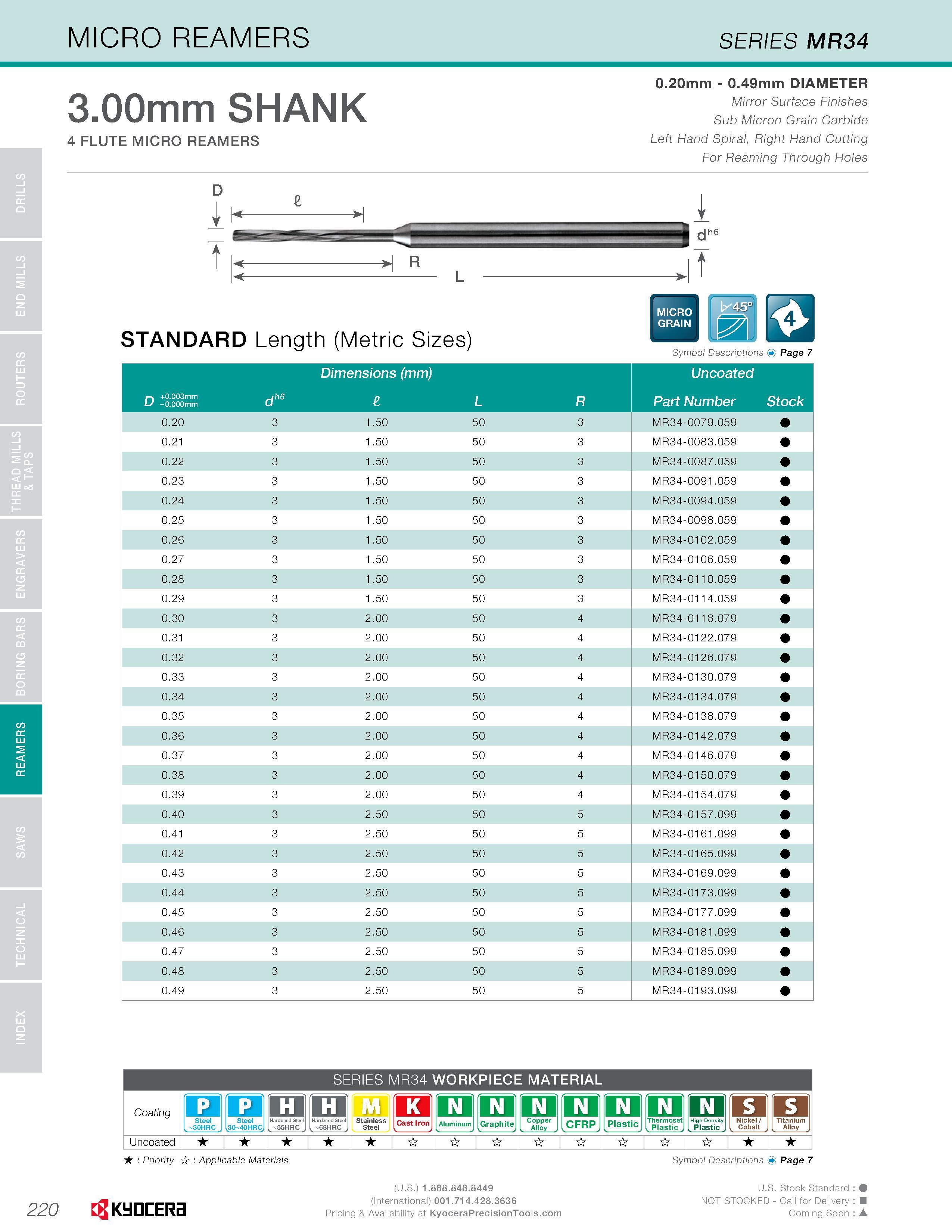

REAMERS MICRO REAMERS SERIES MR34 220 3.00mm SHANK 4 FLUTE MICRO REAMERS 0.20mm - 0.49mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Left Hand Spiral, Right Hand Cutting For Reaming Through Ho/es STANDARD Length (Metric Sizes) Symbol Descriptions Page 7 i-i +0.003mm LJ -0.000mm dh6 Dimensions (mm) L R Uncoated Part Number Stock 0.20 3 1.50 50 3 MR34-0079.059 0.21 3 1.50 50 3 MR34-0083.059 0.22 3 1.50 50 3 MR34-0087.059 0.23 3 1.50 50 3 MR34-0091.059 0.24 3 1.50 50 3 MR34-0094.059 0.25 3 1.50 50 3 MR34-0098.059 0.26 3 1.50 50 3 MR34-0102.059 0.27 3 1.50 50 3 MR34-0106.059 0.28 3 1.50 50 3 MR34-0110.059 0.29 3 1.50 50 3 MR34-0114.059 0.30 3 2.00 50 4 MR34-0118.079 0.31 3 2.00 50 4 MR34-0122.079 0.32 3 2.00 50 4 MR34-0126.079 0.33 3 2.00 50 4 MR34-0130.079 0.34 3 2.00 50 4 MR34-0134.079 0.35 3 2.00 50 4 MR34-0138.079 0.36 3 2.00 50 4 MR34-0142.079 0.37 3 2.00 50 4 MR34-0146.079 0.38 3 2.00 50 4 MR34-0150.079 0.39 3 2.00 50 4 MR34-0154.079 0.40 3 2.50 50 5 MR34-0157.099 0.41 3 2.50 50 5 MR34-0161.099 0.42 3 2.50 50 5 MR34-0165.099 0.43 3 2.50 50 5 MR34-0169.099 0.44 3 2.50 50 5 MR34-0173.099 0.45 3 2.50 50 5 MR34-0177.099 0.46 3 2.50 50 5 MR34-0181.099 0.47 3 2.50 50 5 MR34-0185.099 0.48 3 2.50 50 5 MR34-0189.099 0.49 3 2.50 50 5 MR34-0193.099 SERIES MR34 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC iA Stainless Steel K Aluminuin o Graphite o Copper Alloy o CFRP Q Plastic o Thermoset . Plastic . o Plastic I s I s j Cast Ironj Nickel/ t Cobalt J Titanium Alloy J Uncoated Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
