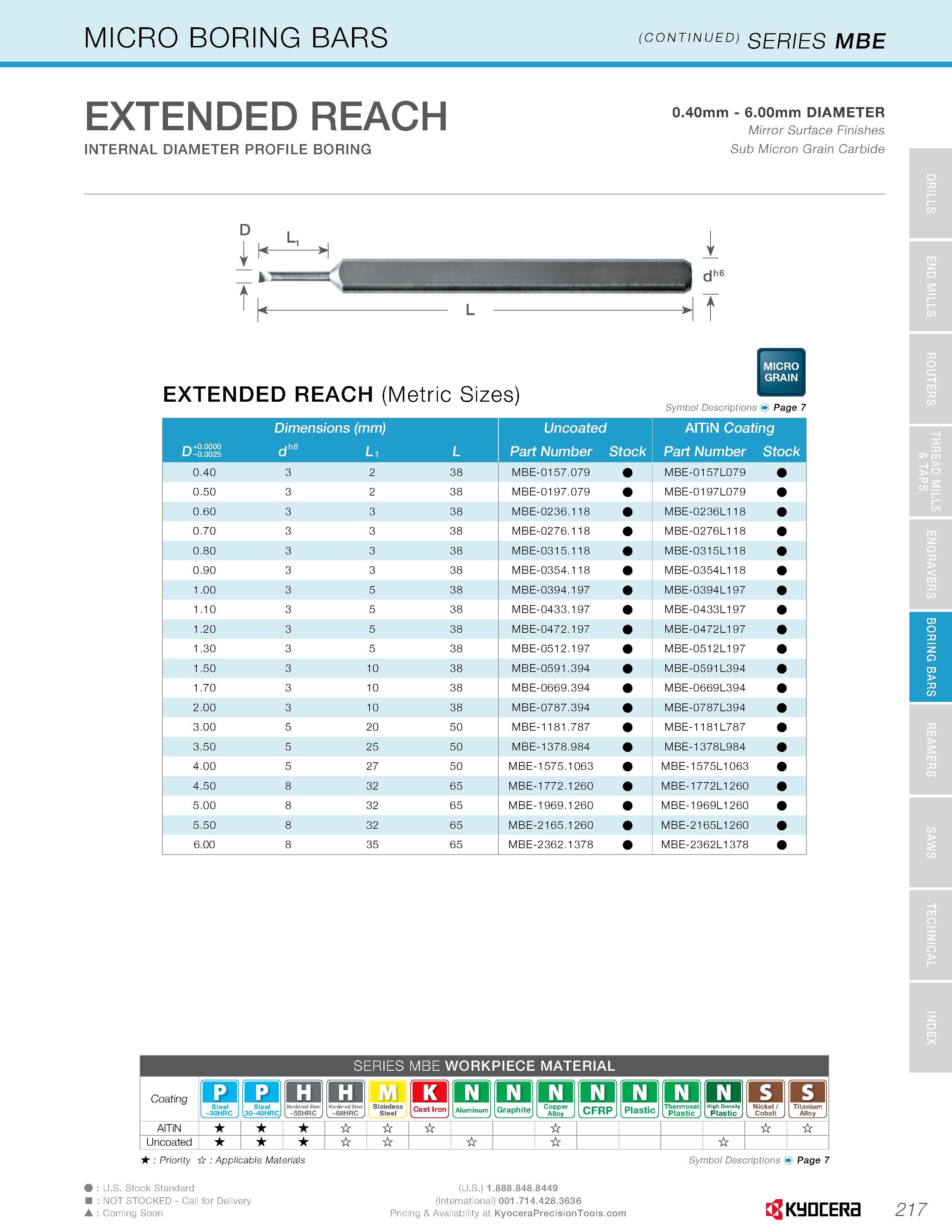

MICRO BORING BARS (CONTINUED) SERIES MBE EXTENDED REACH 0.40mm - 6.00mm DIAMETER Mirror Surface Finishes INTERNAL DIAMETER PROFILE BORING Sub Micron Grain Carbide MICRO GRAIN EXTENDED REACH (Metric Sizes) Symbol Descriptions Page 7 Dimensions (mm) Uncoated AITiN Coating +0.0000 U -0.0025 dh6 Li L Part Number Stock Part Number Stock 0.40 3 2 38 MBE-0157.079 MBE-0157L079 0.50 3 2 38 MBE-0197.079 MBE-0197L079 0.60 3 3 38 MBE-0236.118 MBE-0236L118 0.70 3 3 38 MBE-0276.118 MBE-0276L118 0.80 3 3 38 MBE-0315.118 MBE-0315L118 0.90 3 3 38 MBE-0354.118 MBE-0354L118 1.00 3 5 38 MBE-0394.197 MBE-0394L197 1.10 3 5 38 MBE-0433.197 MBE-0433L197 1.20 3 5 38 MBE-0472.197 MBE-0472L197 1.30 3 5 38 MBE-0512.197 MBE-0512L197 1.50 3 10 38 MBE-0591.394 MBE-0591 L394 1.70 3 10 38 MBE-0669.394 MBE-0669L394 2.00 3 10 38 MBE-0787.394 MBE-0787L394 3.00 5 20 50 MBE-1181.787 MBE-1181 L787 3.50 5 25 50 MBE-1378.984 MBE-1378L984 4.00 5 27 50 MBE-1575.1063 MBE-1575L1063 4.50 8 32 65 MBE-1772.1260 MBE-1772L1260 5.00 8 32 65 MBE-1969.1260 MBE-1969L1260 5.50 8 32 65 MBE-2165.1260 MBE-2165L1260 6.00 8 35 65 MBE-2362.1378 MBE-2362L1378 SERIES MBE WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel o Aluminum Q Graphite o Copper Alloy o CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Corning Soon (U.S.) (International) 001.714.428.3636 i un Pricing & Availability 2 7 BORING BARS
