217 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.215

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 215 0217 ENG Lab2u

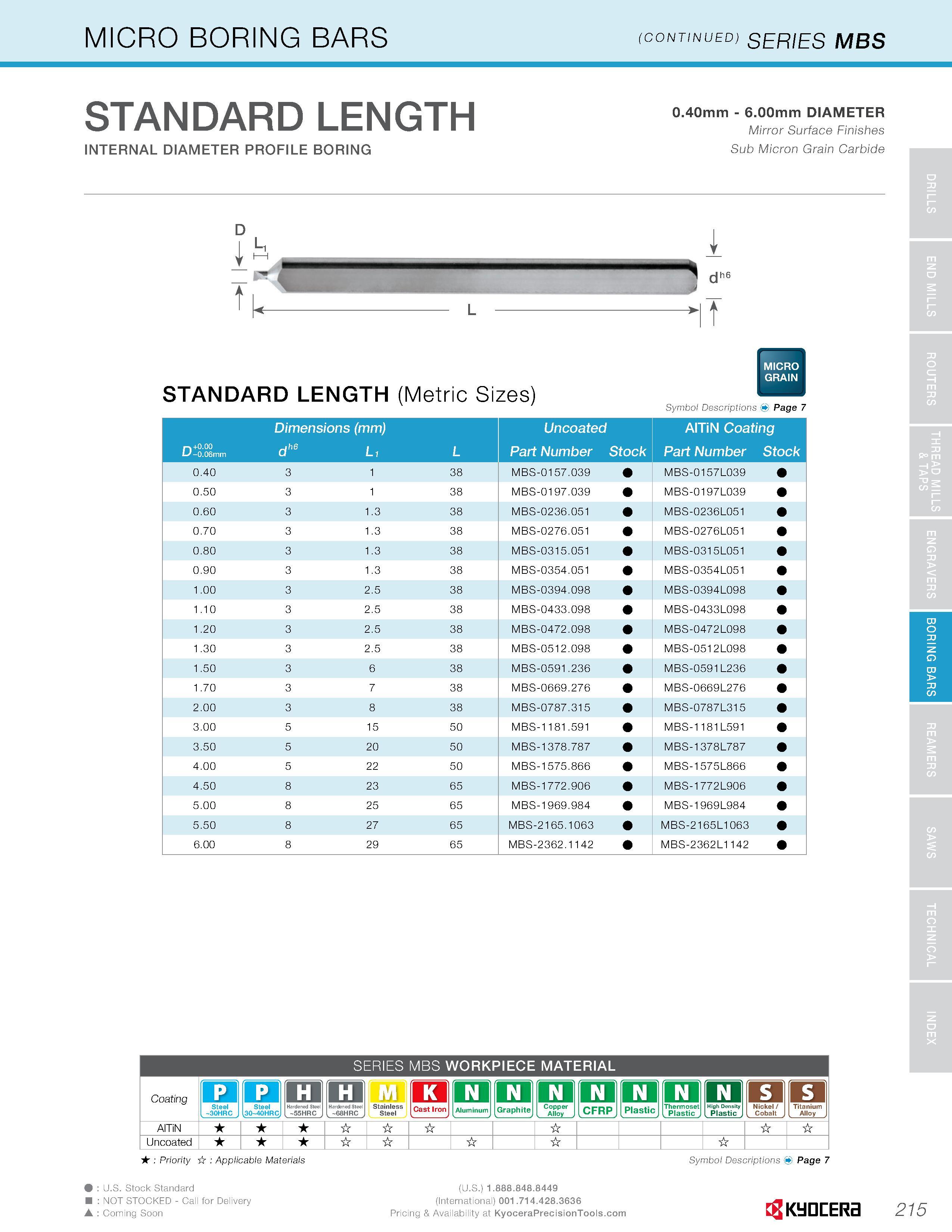

MICRO BORING BARS (CONTINUED) SERIES MBS STANDARD LENGTH 0.40mm - 6.00mm DIAMETER Mirror Surface Finishes INTERNAL DIAMETER PROFILE BORING Sub Micron Grain Carbide MICRO GRAIN STANDARD LENGTH (Metric Sizes) Symbol Descriptions Page 7 Dimensions (mm) Uncoated AITiN Coating +0.00 Ls -0.06mm dh6 Li L Part Number Stock Part Number Stock 0.40 3 1 38 MBS-0157.039 MBS-0157L039 0.50 3 1 38 MBS-0197.039 MBS-0197L039 0.60 3 1.3 38 MBS-0236.051 MBS-0236L051 0.70 3 1.3 38 MBS-0276.051 MBS-0276L051 0.80 3 1.3 38 MBS-0315.051 MBS-0315L051 0.90 3 1.3 38 MBS-0354.051 MBS-0354L051 1.00 3 2.5 38 MBS-0394.098 MBS-0394L098 1.10 3 2.5 38 MBS-0433.098 MBS-0433L098 1.20 3 2.5 38 MBS-0472.098 MBS-0472L098 1.30 3 2.5 38 MBS-0512.098 MBS-0512L098 1.50 3 6 38 MBS-0591.236 MBS-0591 L236 1.70 3 7 38 MBS-0669.276 MBS-0669L276 2.00 3 8 38 MBS-0787.315 MBS-0787L315 3.00 5 15 50 MBS-1181.591 MBS-1181 L591 3.50 5 20 50 MBS-1378.787 MBS-1378L787 4.00 5 22 50 MBS-1575.866 MBS-1575L866 4.50 8 23 65 MBS-1772.906 MBS-1772L906 5.00 8 25 65 MBS-1969.984 MBS-1969L984 5.50 8 27 65 MBS-2165.1063 MBS-2165L1063 6.00 8 29 65 MBS-2362.1142 MBS-2362L1142 SERIES MBS WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Al Stainless Steel o Aluminum Q Graphite o Copper Alloy o CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon CgKyDCERa 215 BORING BARS
