218 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.216

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 216 0218 ENG Lab2u

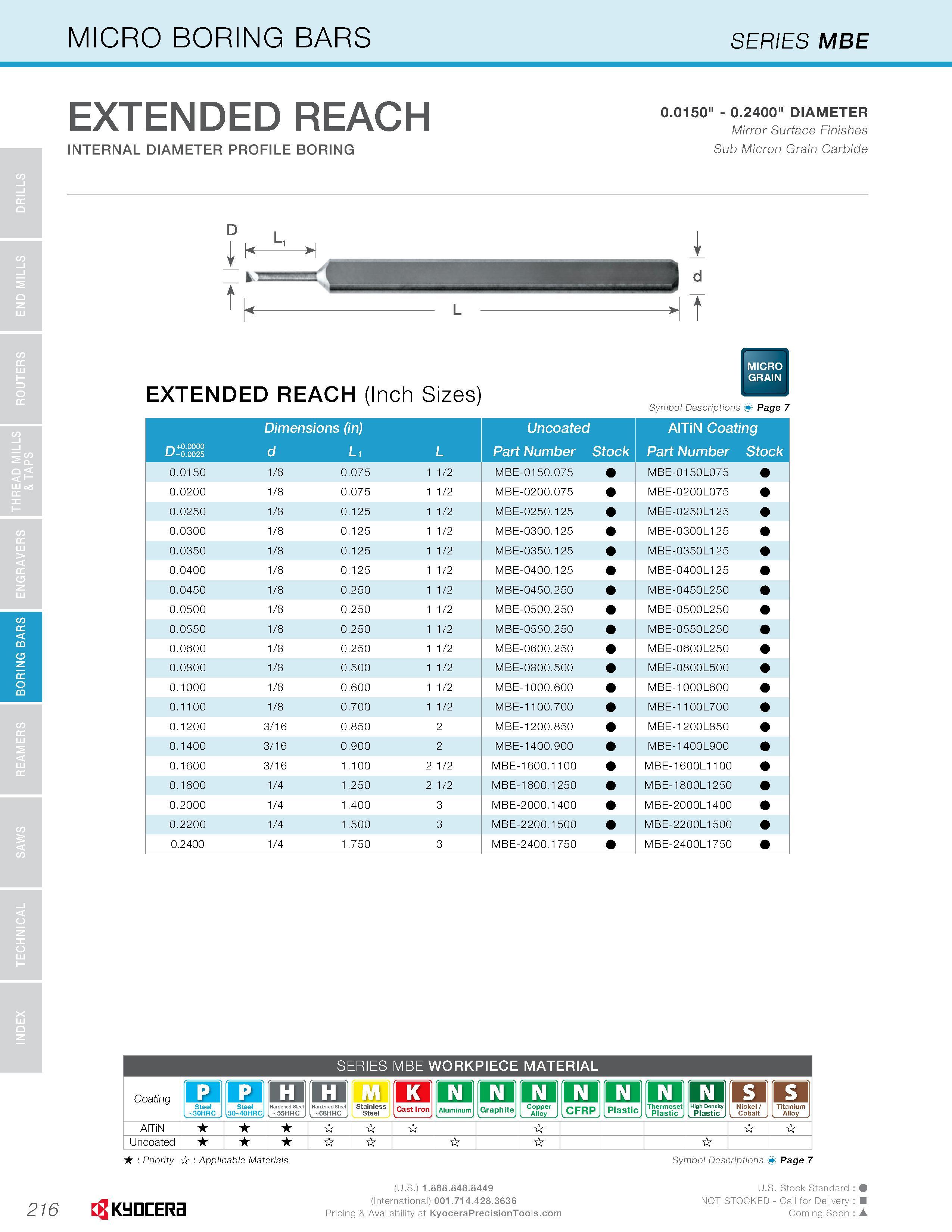

BORING BARS MICRO BORING BARS SERIES MBE 216 EXTENDED REACH 0.0150" - 0.2400" DIAMETER Mirror Surface Finishes INTERNAL DIAMETER PROFILE BORING Sub Micron Grain Carbide MICRO GRAIN EXTENDED REACH (Inch Sizes) Symbol Descriptions Page 7 Dimensions (in) Uncoated AITiN Coating +0.0000 U -0.0025 d L, L Part Number Stock Part Number Stock 0.0150 1/8 0.075 1 1/2 MBE-0150.075 MBE-0150L075 0.0200 1/8 0.075 1 1/2 MBE-0200.075 MBE-0200L075 0.0250 1/8 0.125 1 1/2 MBE-0250.1 25 MBE-0250L125 0.0300 1/8 0.125 1 1/2 MBE-0300.1 25 MBE-0300L125 0.0350 1/8 0.125 1 1/2 MBE-0350.1 25 MBE-0350L125 0.0400 1/8 0.125 1 1/2 MBE-0400.1 25 MBE-0400L125 0.0450 1/8 0.250 1 1/2 MBE-0450.250 MBE-0450L250 0.0500 1/8 0.250 1 1/2 MBE-0500.250 MBE-0500L250 0.0550 1/8 0.250 1 1/2 MBE-0550.250 MBE-0550L250 0.0600 1/8 0.250 1 1/2 MBE-0600.250 MBE-0600L250 0.0800 1/8 0.500 1 1/2 MBE-0800.500 MBE-0800L500 0.1000 1/8 0.600 1 1/2 MBE-1000.600 MBE-1000L600 0.1100 1/8 0.700 1 1/2 MBE-11 00.700 MBE-1100L700 0.1200 3/16 0.850 2 MBE-1200.850 MBE-1200L850 0.1400 3/16 0.900 2 MBE-1400.900 MBE-1400L900 0.1600 3/16 1.100 2 1/2 MBE-1 600.1100 MBE-1600L11 00 0.1800 1/4 1.250 2 1/2 MBE-1 800.1 250 MBE-1800L1 250 0.2000 1/4 1.400 3 MBE-2000.1400 MBE-2000L1400 0.2200 1/4 1.500 3 MBE-2200.1500 MBE-2200L1500 0.2400 1/4 1.750 3 MBE-2400.1750 MBE-2400L1750 SERIES MBE WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel o Aluminuin Q Graphite o Copper Alloy o CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon (U.S.) wC.P l/Unrmi (International) 001.714.428.3636 l\.-jULtl\d Pricing & Availability at
