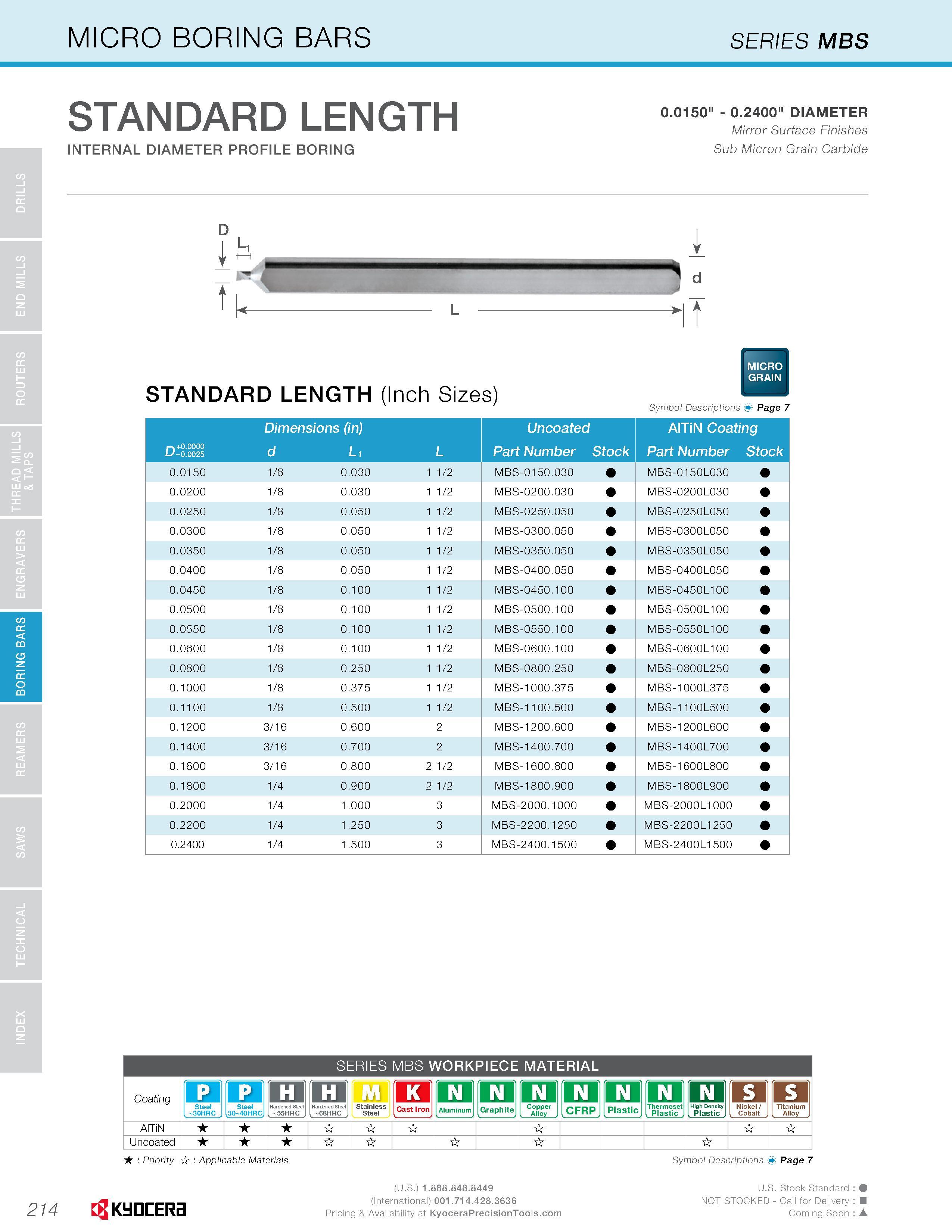

BORING BARS MICRO BORING BARS SERIES MBS STANDARD LENGTH 0.0150" - 0.2400" DIAMETER Mirror Surface Finishes INTERNAL DIAMETER PROFILE BORING Sub Micron Grain Carbide MICRO GRAIN STANDARD LENGTH (Inch Sizes) Symbol Descriptions Page 7 Dimensions (in) Uncoated AITiN Coating +0.0000 U -0.0025 d L, L Part Number Stock Part Number Stock 0.0150 1/8 0.030 1 1/2 MBS-0150.030 MBS-0150L030 0.0200 1/8 0.030 1 1/2 MBS-0200.030 MBS-0200L030 0.0250 1/8 0.050 1 1/2 MBS-0250.050 MBS-0250L050 0.0300 1/8 0.050 1 1/2 MBS-0300.050 MBS-0300L050 0.0350 1/8 0.050 1 1/2 MBS-0350.050 MBS-0350L050 0.0400 1/8 0.050 1 1/2 MBS-0400.050 MBS-0400L050 0.0450 1/8 0.100 1 1/2 MBS-0450.100 MBS-0450L100 0.0500 1/8 0.100 1 1/2 MBS-0500.100 MBS-0500L100 0.0550 1/8 0.100 1 1/2 MBS-0550.100 MBS-0550L100 0.0600 1/8 0.100 1 1/2 MBS-0600.100 MBS-0600L100 0.0800 1/8 0.250 1 1/2 MBS-0800.250 MBS-0800L250 0.1000 1/8 0.375 1 1/2 MBS-1000.375 MBS-1000L375 0.1100 1/8 0.500 1 1/2 MBS-1100.500 MBS-1100L500 0.1200 3/16 0.600 2 MBS-1200.600 MBS-1200L600 0.1400 3/16 0.700 2 MBS-1400.700 MBS-1400L700 0.1600 3/16 0.800 2 1/2 MBS-1600.800 MBS-1600L800 0.1800 1/4 0.900 2 1/2 MBS-1800.900 MBS-1800L900 0.2000 1/4 1.000 3 MBS-2000.1000 MBS-2000L1000 0.2200 1/4 1.250 3 MBS-2200.1250 MBS-2200L1250 0.2400 1/4 1.500 3 MBS-2400.1500 MBS-2400L1500 SERIES MBS WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC o Hardened Steel -55HRC EH Hardened Steel -68HRC Ai Stainless Steel o Aluminum Q Graphite o Copper Alloy Q CFRP o Plastic o Thermoset L Plastic o Plastic Cast Iron Nickel / Cobalt Titanium Alloy AITiN Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 214 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
