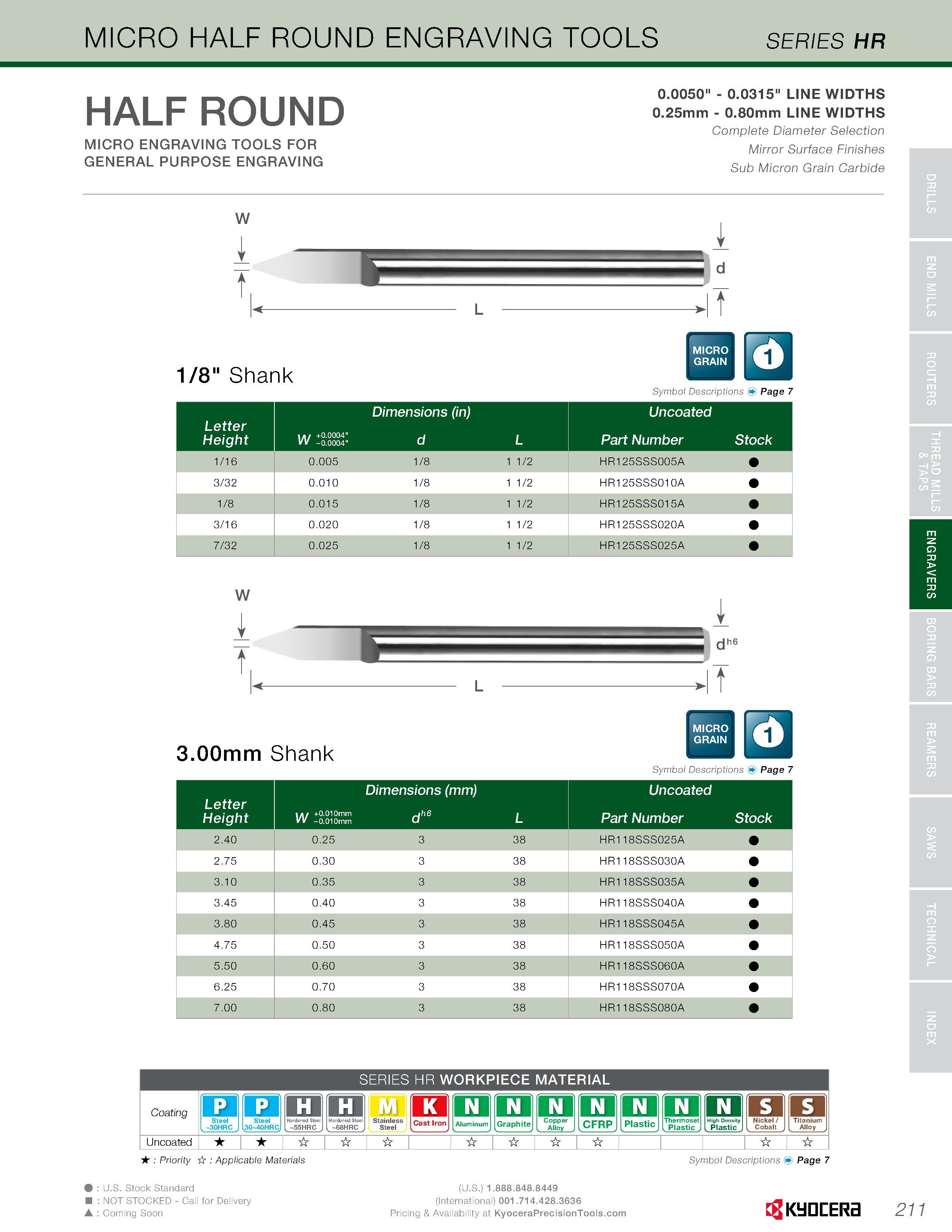

MICRO HALF ROUND ENGRAVING TOOLS SERIES HR HALF ROUND MICRO ENGRAVING TOOLS FOR GENERAL PURPOSE ENGRAVING 0.0050" - 0.0315" LINE WIDTHS 0.25mm - 0.80mm LINE WIDTHS Complete Diameter Selection Mirror Surface Finishes Sub Micron Grain Carbide I f F..' fL =5t 1/8" Shank Symbol Descriptions Page 7 Letter Height \a/ +0.0004“ VV -0.0004" Dimensions (in) d L Uncoated Part Number Stock 1/16 0.005 1/8 1 1/2 HR125SSS005A 3/32 0.010 1/8 1 1/2 HR1 25SSS01 0A 1/8 0.015 1/8 1 1/2 HR1 25SSS01 5A 3/16 0.020 1/8 1 1/2 HR125SSS020A 7/32 0.025 1/8 1 1/2 HR125SSS025A w i t, 3.00mm Shank 1 i dh6 -It Symbol Descriptions Page 7 Letter Height \a/ +0.01 Omm VV -0.010mm Dimensions (mm) dh6 L Uncoated Part Number Stock 2.40 0.25 3 38 HR118SSS025A 2.75 0.30 3 38 HR118SSS030A 3.10 0.35 3 38 HR118SSS035A 3.45 0.40 3 38 HR118SSS040A 3.80 0.45 3 38 HR118SSS045A 4.75 0.50 3 38 HR118SSS050A 5.50 0.60 3 38 HR118SSS060A 6.25 0.70 3 38 HR118SSS070A 7.00 0.80 3 38 HR118SSS080A SERIES HR WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel nn Aluminum Q Graphite Q Copper Alloy Q CFRP Q Plastic Q Thermoset Plastic . o Plastic m m j Cast Ironj Nickel/ I Cobalt J Titanium Alloy J Uncoated Priority Applicable Materials Symbol Descriptions Page 7 U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon Kyocera 211 ENGRAVERS
