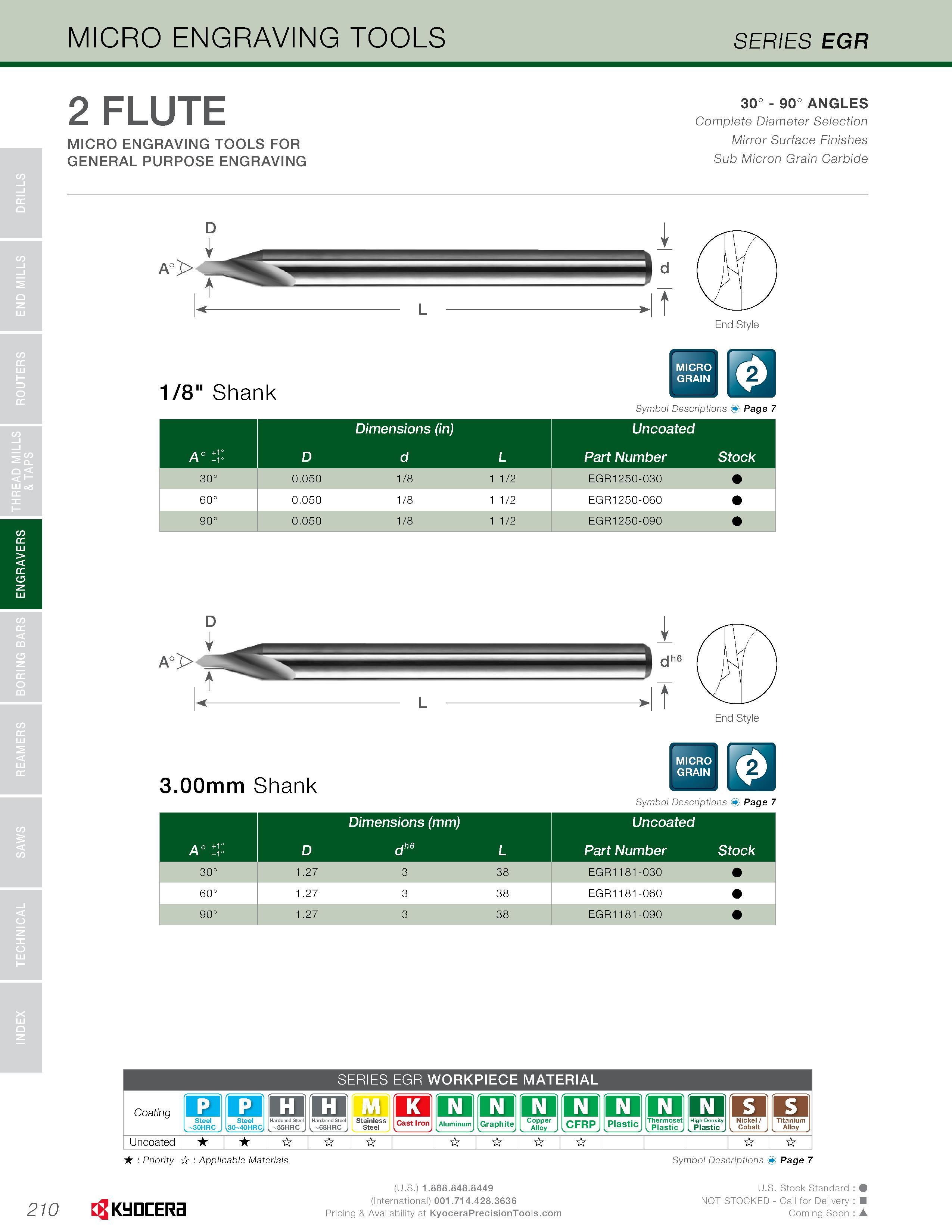

212 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.210

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 210 0212 ENG Lab2u

ENGRAVERS MICRO ENGRAVING TOOLS SERIES EGR 2 FLUTE 30° - 90° ANGLES Complete Diameter Selection MICRO ENGRAVING TOOLS FOR Mirror Surface Finishes GENERAL PURPOSE ENGRAVING Sub Micmn Grain Carbide A°> 1/8" Shank i -it Symbol Descriptions Page 7 A° D Dimensions (in) d L Uncoated Part Number Stock 30“ 0.050 1/8 1 1/2 EGR1250-030 60“ 0.050 1/8 1 1/2 EGR1250-060 90“ 0.050 1/8 1 1/2 EGR1250-090 A°> D 1 r" < L -It 3.00mm Shank Symbol Descriptions Page 7 A° D Dimensions (mm) dhe L Uncoated Part Number Stock 30“ 1.27 3 38 EGR11 81 -030 60“ 1.27 3 38 EGR11 81 -060 90“ 1.27 3 38 EGR11 81 -090 SERIES EGR WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC Stainless Steel nn Aluminum Q Graphite Q Copper Alloy Q CFRP Q Plastic Q Thermoset Plastic . o Plastic m m j Cast Ironj Nickel/ t Cobalt J Titanium Alloy J Uncoated Priority Or Applicable Materials Symbol Descriptions Page 7 End Style End Style 210 Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
