224 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.222

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 222 0224 ENG Lab2u

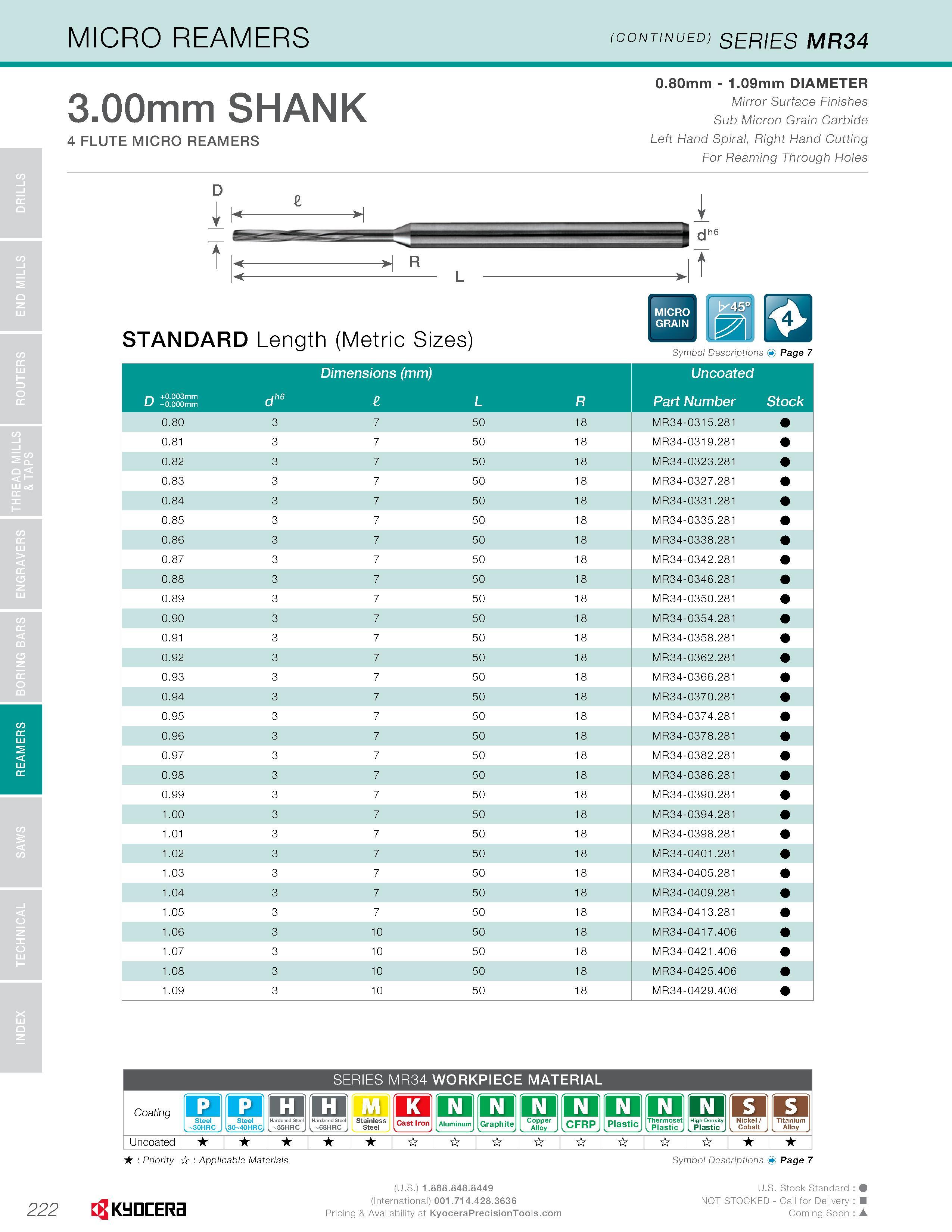

REAMERS MICRO REAMERS (continued) SERIES MR34 222 3.00mm SHANK 4 FLUTE MICRO REAMERS 0.80mm - 1.09mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Left Fland Spiral, Right Fland Cutting For Reaming Through Holes STANDARD Length (Metric Sizes) Symbol Descriptions Page 7 i-i +0.003mm LJ -0.000mm dh6 Dimensions (mm) L R Uncoated Part Number Stock 0.80 3 7 50 18 MR34-0315.281 0.81 3 7 50 18 MR34-0319.281 0.82 3 7 50 18 MR34-0323.281 0.83 3 7 50 18 MR34-0327.281 0.84 3 7 50 18 MR34-0331.281 0.85 3 7 50 18 MR34-0335.281 0.86 3 7 50 18 MR34-0338.281 0.87 3 7 50 18 MR34-0342.281 0.88 3 7 50 18 MR34-0346.281 0.89 3 7 50 18 MR34-0350.281 0.90 3 7 50 18 MR34-0354.281 0.91 3 7 50 18 MR34-0358.281 0.92 3 7 50 18 MR34-0362.281 0.93 3 7 50 18 MR34-0366.281 0.94 3 7 50 18 MR34-0370.281 0.95 3 7 50 18 MR34-0374.281 0.96 3 7 50 18 MR34-0378.281 0.97 3 7 50 18 MR34-0382.281 0.98 3 7 50 18 MR34-0386.281 0.99 3 7 50 18 MR34-0390.281 1.00 3 7 50 18 MR34-0394.281 1.01 3 7 50 18 MR34-0398.281 1.02 3 7 50 18 MR34-0401.281 1.03 3 7 50 18 MR34-0405.281 1.04 3 7 50 18 MR34-0409.281 1.05 3 7 50 18 MR34-0413.281 1.06 3 10 50 18 MR34-0417.406 1.07 3 10 50 18 MR34-0421.406 1.08 3 10 50 18 MR34-0425.406 1.09 3 10 50 18 MR34-0429.406 SERIES MR34 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC j'jJ Stainless Steel K Aluminuin Q Graphite o Copper Alloy Q CFRP Q Plastic o Thermoset . Plastic . o Plastic I s I s j Cast Ironj Nickel/ t Cobalt J Titanium Alloy J Uncoated Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
