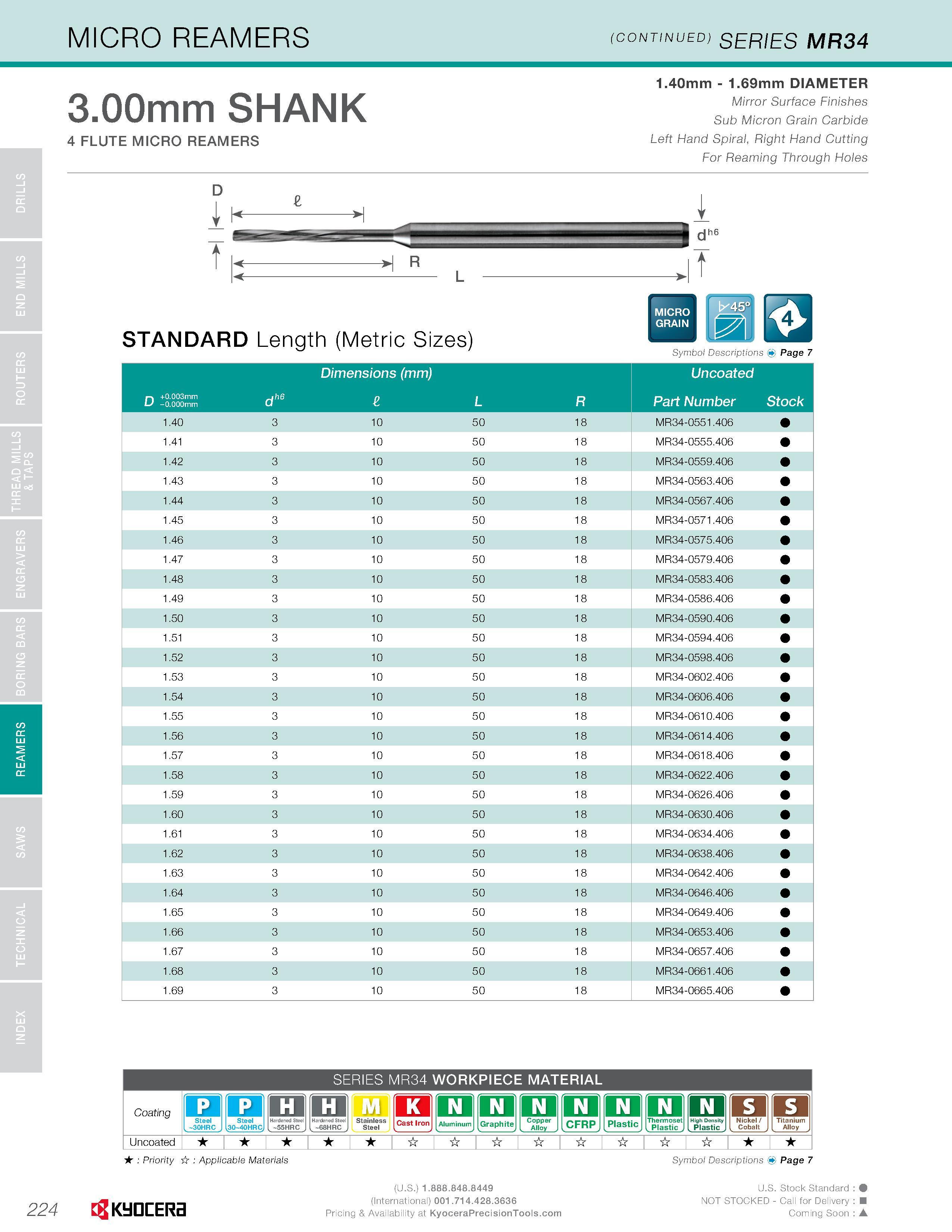

REAMERS MICRO REAMERS (continued) SERIES MR34 224 3.00mm SHANK 4 FLUTE MICRO REAMERS 1.40mm - 1.69mm DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide Left Hand Spiral, Right Hand Cutting For Reaming Through Holes STANDARD Length (Metric Sizes) Symbol Descriptions Page 7 i-i +0.003mm LJ -0.000mm dh6 Dimensions (mm) L R Uncoated Part Number Stock 1.40 3 10 50 18 MR34-0551.406 1.41 3 10 50 18 MR34-0555.406 1.42 3 10 50 18 MR34-0559.406 1.43 3 10 50 18 MR34-0563.406 1.44 3 10 50 18 MR34-0567.406 1.45 3 10 50 18 MR34-0571.406 1.46 3 10 50 18 MR34-0575.406 1.47 3 10 50 18 MR34-0579.406 1.48 3 10 50 18 MR34-0583.406 1.49 3 10 50 18 MR34-0586.406 1.50 3 10 50 18 MR34-0590.406 1.51 3 10 50 18 MR34-0594.406 1.52 3 10 50 18 MR34-0598.406 1.53 3 10 50 18 MR34-0602.406 1.54 3 10 50 18 MR34-0606.406 1.55 3 10 50 18 MR34-0610.406 1.56 3 10 50 18 MR34-0614.406 1.57 3 10 50 18 MR34-0618.406 1.58 3 10 50 18 MR34-0622.406 1.59 3 10 50 18 MR34-0626.406 1.60 3 10 50 18 MR34-0630.406 1.61 3 10 50 18 MR34-0634.406 1.62 3 10 50 18 MR34-0638.406 1.63 3 10 50 18 MR34-0642.406 1.64 3 10 50 18 MR34-0646.406 1.65 3 10 50 18 MR34-0649.406 1.66 3 10 50 18 MR34-0653.406 1.67 3 10 50 18 MR34-0657.406 1.68 3 10 50 18 MR34-0661.406 1.69 3 10 50 18 MR34-0665.406 SERIES MR34 WORKPIECE MATERIAL Coating a Steel -30HRC D Steel 30-40HRC Hardened Steel -55HRC EH Hardened Steel -68HRC iA Stainless Steel K Aluminuin o Graphite o Copper Alloy o CFRP Q Plastic o Thermoset . Plastic . o Plastic I s I s j Cast Ironj Nickel/ t Cobalt J Titanium Alloy J Uncoated Priority Applicable Materials Symbol Descriptions ( Kyocera U.S. Stock Standard NOT STOCKED - Call for Delivery Coming Soon A
