236 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.B162

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. B162 0236 Lab2u

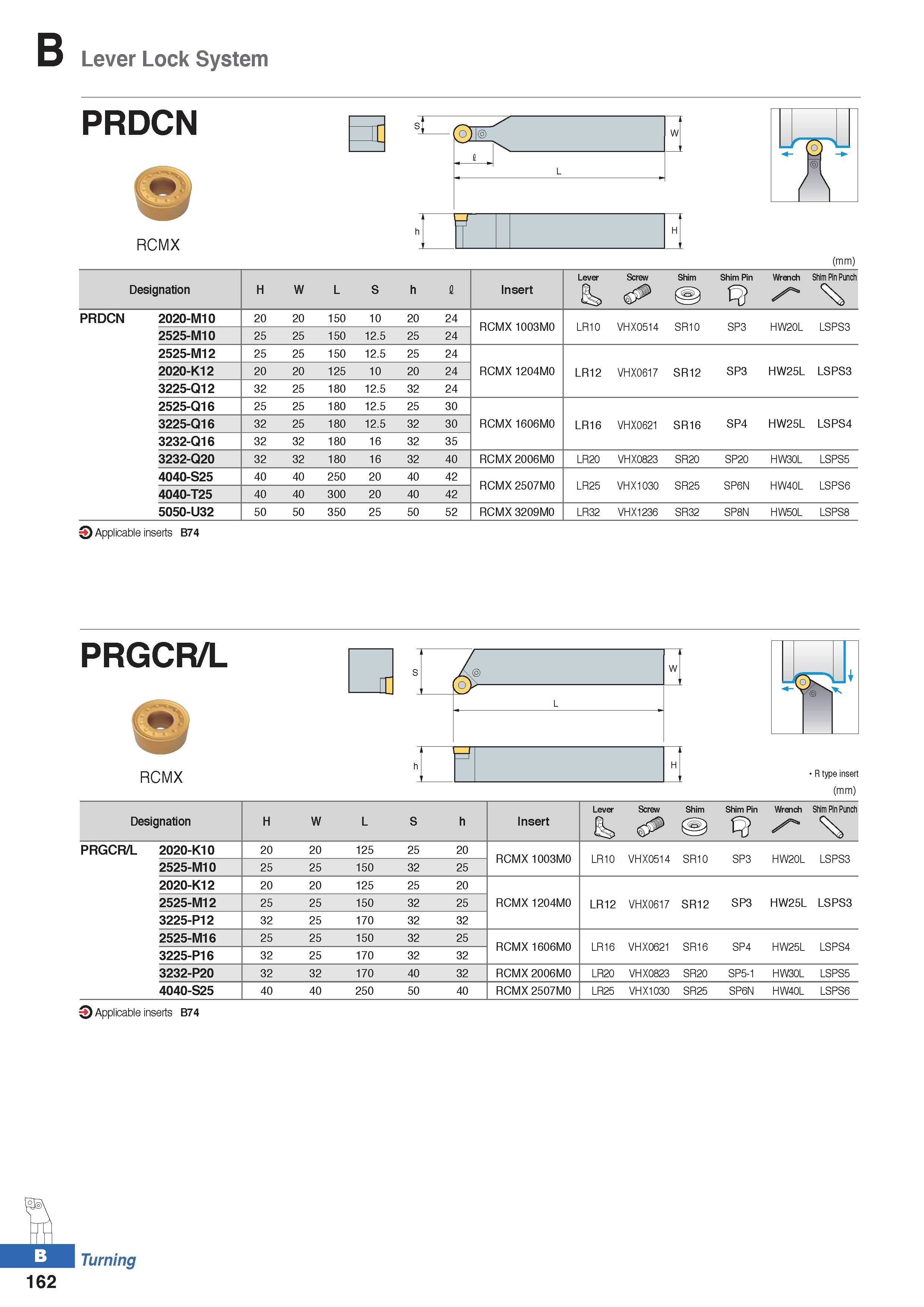

Lever Lock System PRDCN RCMX (mm) Designation H W L S h I Insert Lever Screw Shim Shim Pin Wrench Shim Pin Punch % PRDCN 2020-M10 20 20 150 10 20 24 RCMX 1003M0 LR10 VHX0514 SR10 SP3 HW20L LSPS3 2525-M10 25 25 150 12.5 25 24 2525-M12 25 25 150 12.5 25 24 2020-K12 20 20 125 10 20 24 RCMX 1204M0 LR12 VHX0617 SR12 SP3 HW25L LSPS3 3225-Q12 32 25 180 12.5 32 24 2525-Q16 25 25 180 12.5 25 30 3225-Q16 32 25 180 12.5 32 30 RCMX 1606M0 LR16 VHX0621 SR16 SP4 HW25L LSPS4 3232-Q16 32 32 180 16 32 35 3232-Q20 32 32 180 16 32 40 RCMX 2006M0 LR20 VHX0823 SR20 SP20 HW30L LSPS5 4040-S25 40 40 250 20 40 42 RCMX 2507M0 LR25 VHX1030 SR25 SP6N HW40L LSPS6 4040-T25 40 40 300 20 40 42 5050-U32 50 50 350 25 50 52 RCMX 3209M0 LR32 VHX1236 SR32 SP8N HW50L LSPS8 Applicable inserts B74 H h PRGCR/L RCMX Jti R type insert (mm) Designation H W L S h Insert Lever Screw c Shim Shim Pin Wrench / Shim Pin Punch PRGCR/L 2020-K10 20 20 125 25 20 RCMX 1003M0 LR10 VHX0514 SR10 SP3 HW20L LSPS3 2525-M10 25 25 150 32 25 2020-K12 20 20 125 25 20 2525-M12 25 25 150 32 25 RCMX 1204M0 LR12 VHX0617 SR12 SP3 HW25L LSPS3 3225-P12 32 25 170 32 32 2525-M16 25 25 150 32 25 RCMX 1606M0 LR16 VHX0621 SR16 SP4 HW25L LSPS4 3225-P16 32 25 170 32 32 3232-P20 32 32 170 40 32 RCMX 2006M0 LR20 VHX0823 SR20 SP5-1 HW30L LSPS5 4040-S25 40 40 250 50 40 RCMX 2507M0 LR25 VHX1030 SR25 SP6N HW40L LSPS6 3 Applicable inserts B74
