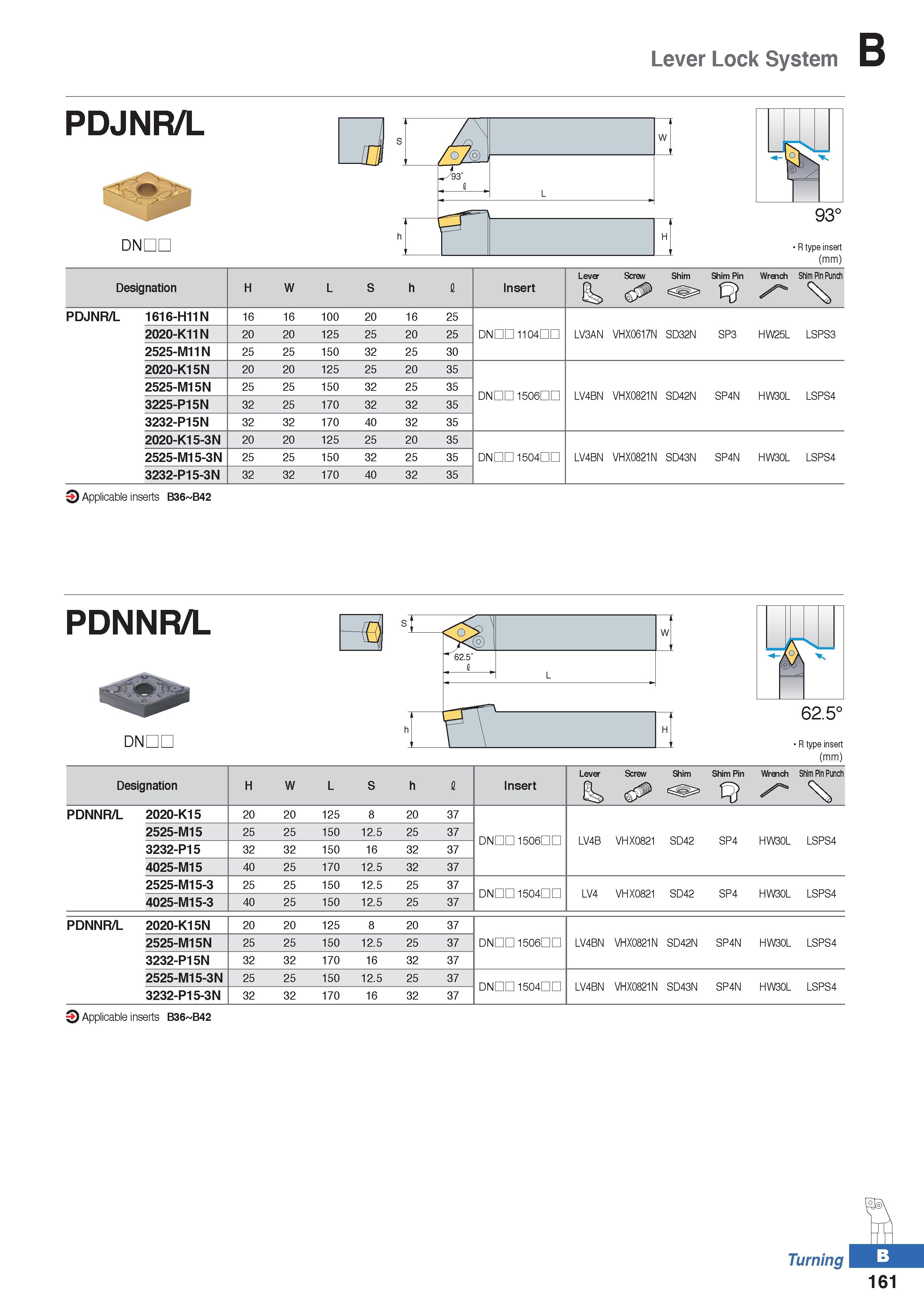

Lever Lock System PDJNR/L 93° R type insert (mm) Designation H W L S h I Insert Lever Screw Shim Shim Pin Wrench Shim Pin Punch PDJNR/L 1616-H11N 16 16 100 20 16 25 2020-K11N 20 20 125 25 20 25 DNUD 1104m LV3AN VHX0617N SD32N SP3 HW25L LSPS3 2525-M11N 25 25 150 32 25 30 2020-K15N 20 20 125 25 20 35 2525-M15N 25 25 150 32 25 35 DNUD 1506m LV4BN VHX0821N SD42N SP4N HW30L LSPS4 3225-P15N 32 25 170 32 32 35 3232-P15N 32 32 170 40 32 35 2020-K15-3N 20 20 125 25 20 35 2525-M15-3N 25 25 150 32 25 35 DNm 1504m LV4BN VHX0821N SD43N SP4N HW30L LSPS4 3232-P15-3N 32 32 170 40 32 35 3 Applicable inserts B36 B42 PDNNR/L DNDL 62.5° R type insert (mm) Lever Screw Shim Shim Pin Wrench Shim Pin Punch Designation H W L S h I Insert SgiS5 PDNNR/L 2020-K15 20 20 125 8 20 37 2525-M15 25 25 150 12.5 25 37 DNm 1506DD LV4B VHX0821 SD42 SP4 HW30L LSPS4 3232-P15 32 32 150 16 32 37 4025-M15 40 25 170 12.5 32 37 2525-M15-3 25 25 150 12.5 25 37 DNm 1504DD LV4 VHX0821 SD42 SP4 HW30L LSPS4 4025-M15-3 40 25 150 12.5 25 37 PDNNR/L 2020-K15N 20 20 125 8 20 37 2525-M15N 25 25 150 12.5 25 37 DNm 1506DD LV4BN VHX0821N SD42N SP4N HW30L LSPS4 3232-P15N 32 32 170 16 32 37 2525-M15-3N 25 25 150 12.5 25 37 DNm 1504DD LV4BN VHX0821N SD43N SP4N HW30L LSPS4 3232-P15-3N 32 32 170 16 32 37 3 Applicable inserts B36 B42
