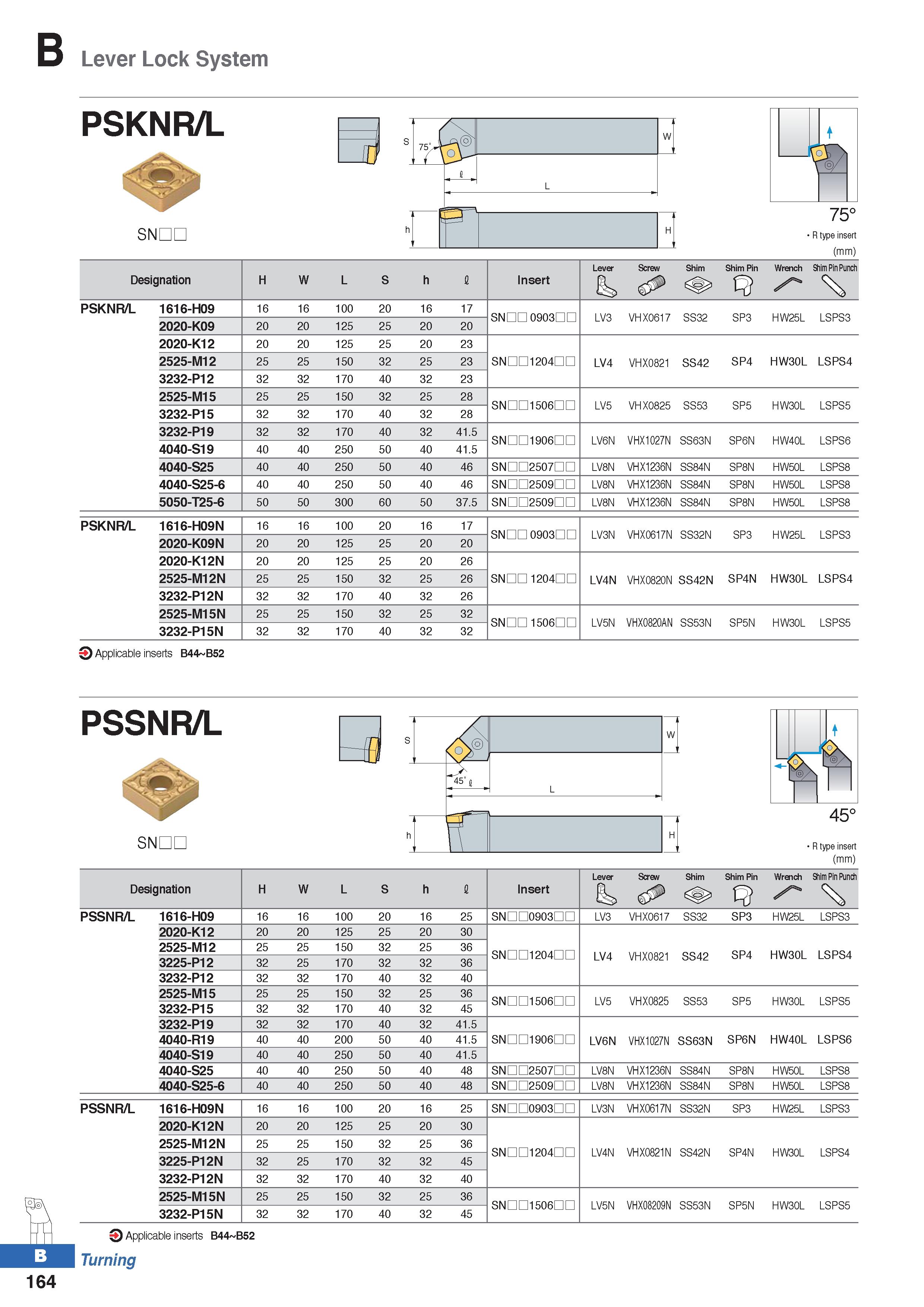

Lever Lock System PSKNR/L i S r 1 e> SNDL R type insert (mm) Designation H W L S h I Insert Lever c Screw Shim Shim Pin Wrench Shim Pin Punch PSKNR/L 1616-H09 16 16 100 20 16 17 SNUD 0903DD LV3 VHX0617 SS32 SP3 HW25L LSPS3 2020-K09 20 20 125 25 20 20 2020-K12 20 20 125 25 20 23 2525-M12 25 25 150 32 25 23 SNHD1204DD LV4 VHX0821 SS42 SP4 HW30L LSPS4 3232-P12 32 32 170 40 32 23 2525-M15 25 25 150 32 25 28 SNHD1506DD LV5 VHX0825 SS53 SP5 HW30L LSPS5 3232-P15 32 32 170 40 32 28 3232-P19 32 32 170 40 32 41.5 SNHD1906DD LV6N VHX1027N SS63N SP6N HW40L LSPS6 4040-S19 40 40 250 50 40 41.5 4040-S25 40 40 250 50 40 46 SNDD2507nn LV8N VHX1236N SS84N SP8N HW50L LSPS8 4040-S25-6 40 40 250 50 40 46 SNDD2509nn LV8N VHX1236N SS84N SP8N HW50L LSPS8 5050-T25-6 50 50 300 60 50 37.5 SNDD2509nn LV8N VHX1236N SS84N SP8N HW50L LSPS8 PSKNR/L 1616-H09N 16 16 100 20 16 17 SNUD 0903DD LV3N VHX0617N SS32N SP3 HW25L LSPS3 2020-K09N 20 20 125 25 20 20 2020-K12N 20 20 125 25 20 26 2525-M12N 25 25 150 32 25 26 SNUD 1204DD LV4N VHX0820N SS42N SP4N HW30L LSPS4 3232-P12N 32 32 170 40 32 26 2525-M15N 25 25 150 32 25 32 SNUD 1506DD LV5N VHX0820AN SS53N SP5N HW30L LSPS5 3232-P15N 32 32 170 40 32 32 Applicable inserts B44 B52 PSSNR/L SNDL R type insert (mm) Designation H W L S h I Insert Lever Screw Shim Shim Pin Q Wrench Shim Pin Punch % PSSNR/L 1616-H09 16 16 100 20 16 25 SNDD0903nn LV3 VHX0617 SS32 SP3 HW25L LSPS3 2020-K12 20 20 125 25 20 30 2525-M12 25 25 150 32 25 36 SNH0204DD LV4 VHX0821 SS42 SP4 HW30L LSPS4 3225-P12 32 25 170 32 32 36 3232-P12 32 32 170 40 32 40 2525-M15 25 25 150 32 25 36 SNH0506DD LV5 VHX0825 SS53 SP5 HW30L LSPS5 3232-P15 32 32 170 40 32 45 3232-P19 32 32 170 40 32 41.5 4040-R19 40 40 200 50 40 41.5 SNH0906DD LV6N VHX1027N SS63N SP6N HW40L LSPS6 4040-S19 40 40 250 50 40 41.5 4040-S25 40 40 250 50 40 48 SNDD2507nn LV8N VHX1236N SS84N SP8N HW50L LSPS8 4040-S25-6 40 40 250 50 40 48 SNDD2509nn LV8N VHX1236N SS84N SP8N HW50L LSPS8 PSSNR/L 1616-H09N 16 16 100 20 16 25 SNDD0903nn LV3N VHX0617N SS32N SP3 HW25L LSPS3 2020-K12N 20 20 125 25 20 30 2525-M12N 25 25 150 32 25 36 SNH0204DD LV4N VHX0821N SS42N SP4N HW30L LSPS4 3225-P12N 32 25 170 32 32 45 3232-P12N 32 32 170 40 32 40 2525-M15N 25 25 150 32 25 36 SNH0506IIO LV5N VHX08209N SS53N SP5N HW30L LSPS5 3232-P15N 32 32 170 40 32 45 O Applicable inserts B44 B52 Turning 164 W L h H
