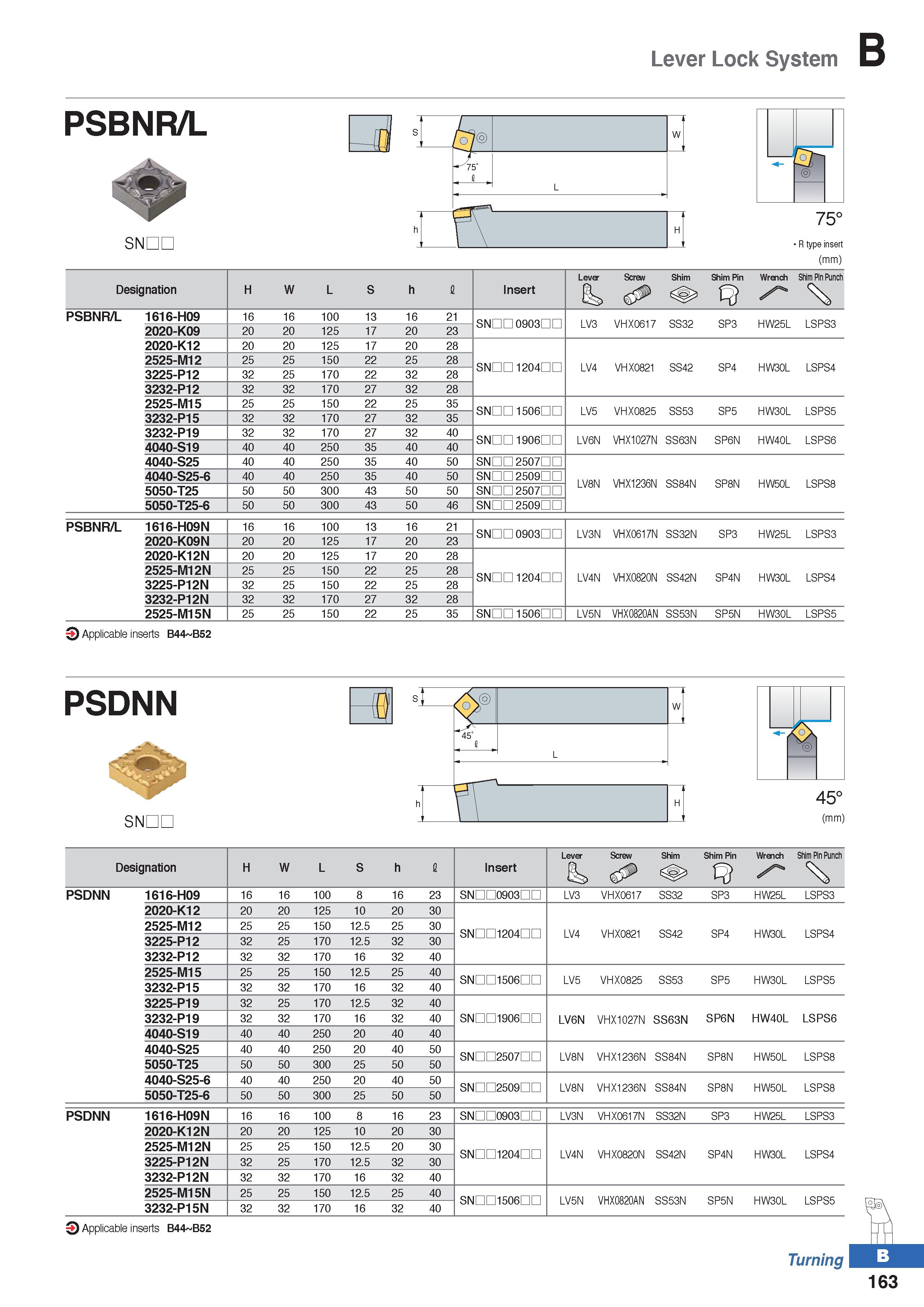

Lever Lock System PSBNR/L SNDL 75° R type insert (mm) Designation H W L S h I Insert Lever Screw Shim Shim Pin Wrench Shim Pin Punch % PSBNR/L 1616-H09 16 16 100 13 16 21 SNDD 0903DD LV3 VHX0617 SS32 SP3 HW25L LSPS3 2020-K09 20 20 125 17 20 23 2020-K12 20 20 125 17 20 28 2525-M12 25 25 150 22 25 28 SNDD 1204DD LV4 VHX0821 SS42 SP4 HW30L LSPS4 3225-P12 32 25 170 22 32 28 3232-P12 32 32 170 27 32 28 2525-M15 25 25 150 22 25 35 SNDD 1506DD LV5 VHX0825 SS53 SP5 HW30L LSPS5 3232-P15 32 32 170 27 32 35 3232-P19 32 32 170 27 32 40 SNDD 1906DD LV6N VHX1027N SS63N SP6N HW40L LSPS6 4040-S19 40 40 250 35 40 40 4040-S25 40 40 250 35 40 50 SNDD 2507DD 4040-S25-6 40 40 250 35 40 50 SNDD 2509DD LV8N VHX1236N SS84N SP8N HW50L LSPS8 5050-T25 50 50 300 43 50 50 SNDD 2507DD 5050-T25-6 50 50 300 43 50 46 SNDD 2509DD PSBNR/L 1616-H09N 16 16 100 13 16 21 SNDD 0903DD LV3N VHX0617N SS32N SP3 HW25L LSPS3 2020-K09N 20 20 125 17 20 23 2020-K12N 20 20 125 17 20 28 2525-M12N 25 25 150 22 25 28 SNDD 1204DD LV4N VHX0820N SS42N SP4N HW30L LSPS4 3225-P12N 32 25 150 22 25 28 3232-P12N 32 32 170 27 32 28 2525-M15N 25 25 150 22 25 35 SNDD 1506DD LV5N VHX0820AN SS53N SP5N HW30L LSPS5 3 Applicable inserts B44 B52 PSDNN SNDL (mm) Designation H W L S h I Insert Lever Screw & Shim Shim Pin Wrench Shim Pin Punch PSDNN 1616-H09 16 16 100 8 16 23 SNDD0903nn LV3 VHX0617 SS32 SP3 HW25L LSPS3 2020-K12 20 20 125 10 20 30 2525-M12 25 25 150 12.5 25 30 SNHD1204HD LV4 VHX0821 SS42 SP4 HW30L LSPS4 3225-P12 32 25 170 12.5 32 30 3232-P12 32 32 170 16 32 40 2525-M15 25 25 150 12.5 25 40 SNHD1506HD LV5 VHX0825 SS53 SP5 HW30L LSPS5 3232-P15 32 32 170 16 32 40 3225-P19 32 25 170 12.5 32 40 3232-P19 32 32 170 16 32 40 SNHD1906HD LV6N VHX1027N SS63N SP6N HW40L LSPS6 4040-S19 40 40 250 20 40 40 4040-S25 40 40 250 20 40 50 SNDD2507nn LV8N VHX1236N SS84N SP8N HW50L LSPS8 5050-T25 50 50 300 25 50 50 4040-S25-6 40 40 250 20 40 50 SNDD2509nn LV8N VHX1236N SS84N SP8N HW50L LSPS8 5050-T25-6 50 50 300 25 50 50 PSDNN 1616-H09N 16 16 100 8 16 23 SNDD0903nn LV3N VHX0617N SS32N SP3 HW25L LSPS3 2020-K12N 20 20 125 10 20 30 2525-M12N 25 25 150 12.5 20 30 SNHD1204HD LV4N VHX0820N SS42N SP4N HW30L LSPS4 3225-P12N 32 25 170 12.5 32 30 3232-P12N 32 32 170 16 32 40 2525-M15N 25 25 150 12.5 25 40 SNHD1506HD LV5N VHX0820AN SS53N SP5N HW30L LSPS5 3232-P15N 32 32 170 16 32 40 Applicable inserts B44 B52 Turning 163
