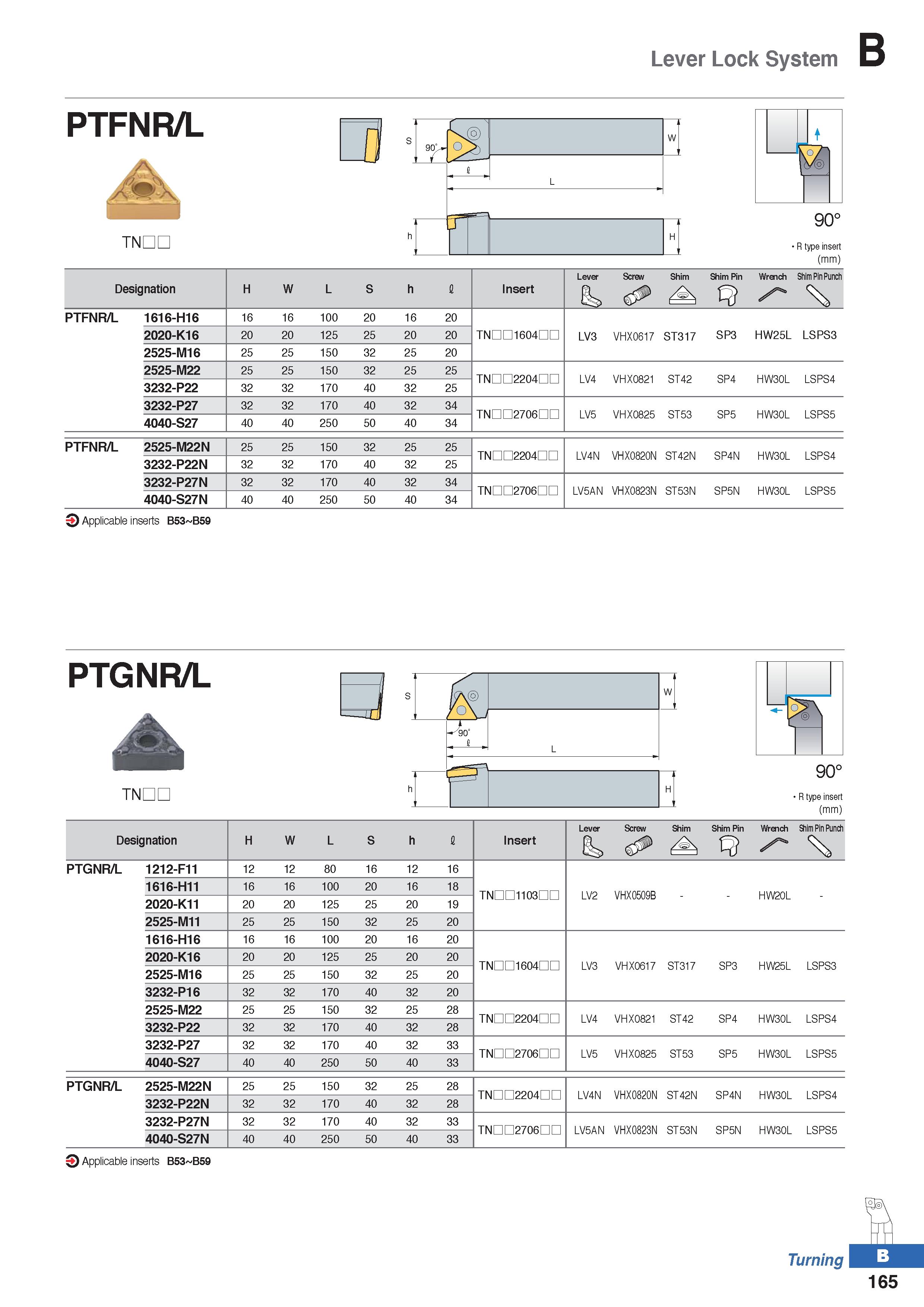

Lever Lock System PTFNR/L TNDL R type insert (mm) Designation H W L S h I Insert Lever Screw Shim Shim Pin Wrench Shim Pin Punch PTFNR/L 1616-H16 16 16 100 20 16 20 2020-K16 20 20 125 25 20 20 TNDD1604IZO LV3 VHX0617 ST317 SP3 HW25L LSPS3 2525-M16 25 25 150 32 25 20 2525-M22 25 25 150 32 25 25 TNDD2204nn LV4 VHX0821 ST42 SP4 HW30L LSPS4 3232-P22 32 32 170 40 32 25 3232-P27 32 32 170 40 32 34 TNDD2706nn LV5 VHX0825 ST53 SP5 HW30L LSPS5 4040-S27 40 40 250 50 40 34 PTFNR/L 2525-M22N 25 25 150 32 25 25 TN 220400 LV4N VHX0820N ST42N SP4N HW30L LSPS4 3232-P22N 32 32 170 40 32 25 3232-P27N 32 32 170 40 32 34 TNDD2706DD LV5AN VHX0823N ST53N SP5N HW30L LSPS5 4040-S27N 40 40 250 50 40 34 3 Applicable inserts B53 B59 PTGNR/L TNDL 90° R type insert (mm) Designation H W L S h I Insert Lever Screw & Shim Shim Pin Wrench Shim Pin Punch PTGNR/L 1212-F11 12 12 80 16 12 16 1616-H11 16 16 100 20 16 18 TNnn1103nn LV2 VHX0509B HW20L 2020-K11 20 20 125 25 20 19 2525-M11 25 25 150 32 25 20 1616-H16 16 16 100 20 16 20 2020-K16 20 20 125 25 20 20 TNnn1604nn LV3 VHX0617 ST317 SP3 HW25L LSPS3 2525-M16 25 25 150 32 25 20 3232-P16 32 32 170 40 32 20 2525-M22 25 25 150 32 25 28 TNDD2204nn LV4 VHX0821 ST42 SP4 HW30L LSPS4 3232-P22 32 32 170 40 32 28 3232-P27 32 32 170 40 32 33 TNDD2706nn LV5 VHX0825 ST53 SP5 HW30L LSPS5 4040-S27 40 40 250 50 40 33 PTGNR/L 2525-M22N 25 25 150 32 25 28 TNDD2204nn LV4N VHX0820N ST42N SP4N HW30L LSPS4 3232-P22N 32 32 170 40 32 28 3232-P27N 32 32 170 40 32 33 TNDD2706nn LV5AN VHX0823N ST53N SP5N HW30L LSPS5 4040-S27N 40 40 250 50 40 33 0 Applicable inserts B53 B59 Turning 165
