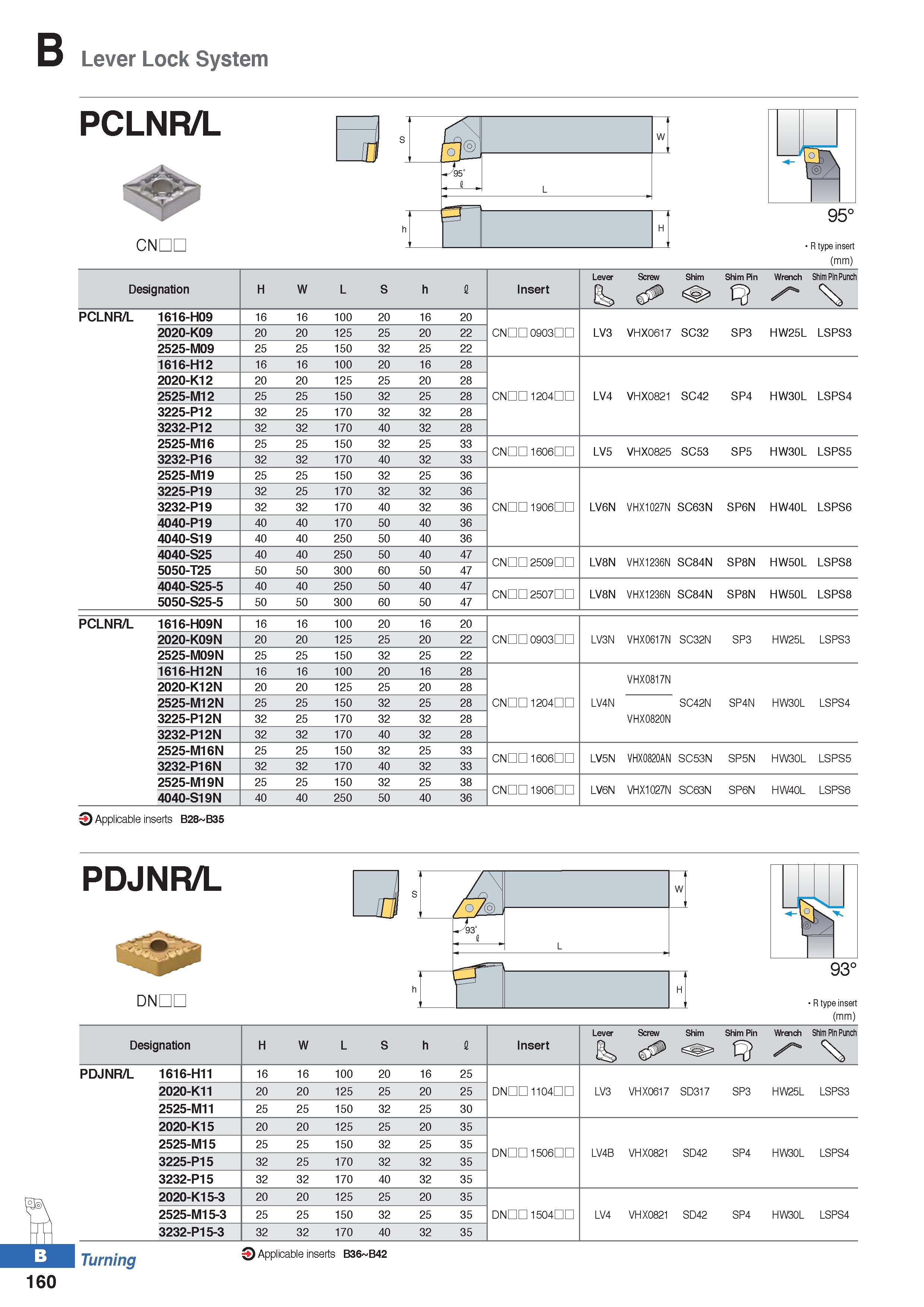

Lever Lock System PCLNR/L i iri S CNDL 95° R type insert (mm) Designation H W L S h I Insert Lever Ss, Screw Shim Shim Pin Wrench Shim Pin Punch PCLNR/L 1616-H09 16 16 100 20 16 20 2020-K09 20 20 125 25 20 22 CNUD 0903 LV3 VHX0617 SC32 SP3 HW25L LSPS3 2525-M09 25 25 150 32 25 22 1616-H12 16 16 100 20 16 28 2020-K12 20 20 125 25 20 28 2525-M12 25 25 150 32 25 28 CNUD 1204m LV4 VHX0821 SC42 SP4 HW30L LSPS4 3225-P12 32 25 170 32 32 28 3232-P12 32 32 170 40 32 28 2525-M16 25 25 150 32 25 33 CNUD 1606m LV5 VHX0825 SC53 SP5 HW30L LSPS5 3232-P16 32 32 170 40 32 33 2525-M19 25 25 150 32 25 36 3225-P19 32 25 170 32 32 36 3232-P19 32 32 170 40 32 36 CNm 1906m LV6N VHX1027N SC63N SP6N HW40L LSPS6 4040-P19 40 40 170 50 40 36 4040-S19 40 40 250 50 40 36 4040-S25 40 40 250 50 40 47 CNm 2509m LV8N VHX1236N SC84N SP8N HW50L LSPS8 5050-T25 50 50 300 60 50 47 4040-S25-5 40 40 250 50 40 47 CNm 2507m LV8N VHX1236N SC84N SP8N HW50L LSPS8 5050-S25-5 50 50 300 60 50 47 PCLNR/L 1616-H09N 16 16 100 20 16 20 2020-K09N 20 20 125 25 20 22 CNm 0903m LV3N VHX0617N SC32N SP3 HW25L LSPS3 2525-M09N 25 25 150 32 25 22 1616-H12N 16 16 100 20 16 28 VHX0817N 2020-K12N 20 20 125 25 20 28 2525-M12N 25 25 150 32 25 28 CNm 1204m LV4N SC42N SP4N HW30L LSPS4 3225-P12N 32 25 170 32 32 28 VHX0820N 3232-P12N 32 32 170 40 32 28 2525-M16N 25 25 150 32 25 33 CNm 1606m LV5N VHX0820AN SC53N SP5N HW30L LSPS5 3232-P16N 32 32 170 40 32 33 2525-M19N 25 25 150 32 25 38 CNm 1906m LV6N VHX1027N SC63N SP6N HW40L LSPS6 4040-S19N 40 40 250 50 40 36 O Applicable inserts B28 B35 PDJNR/L DNDL 1 93° R type insert (mm) Designation H W L S h I Insert Lever £ Screw Shim Shim Pin Wrench Shim Pin Punch PDJNR/L 1616-H11 16 16 100 20 16 25 2020-K11 20 20 125 25 20 25 DNm 1104m LV3 VHX0617 SD317 SP3 HW25L LSPS3 2525-M11 25 25 150 32 25 30 2020-K15 20 20 125 25 20 35 2525-M15 25 25 150 32 25 35 DNm 1506m LV4B VHX0821 SD42 SP4 HW30L LSPS4 3225-P15 32 25 170 32 32 35 3232-P15 32 32 170 40 32 35 2020-K15-3 20 20 125 25 20 35 2525-M15-3 25 25 150 32 25 35 DNm 1504m LV4 VHX0821 SD42 SP4 HW30L LSPS4 3232-P15-3 32 32 170 40 32 35 Turning Applicable inserts B36 B42 160 W L H h
