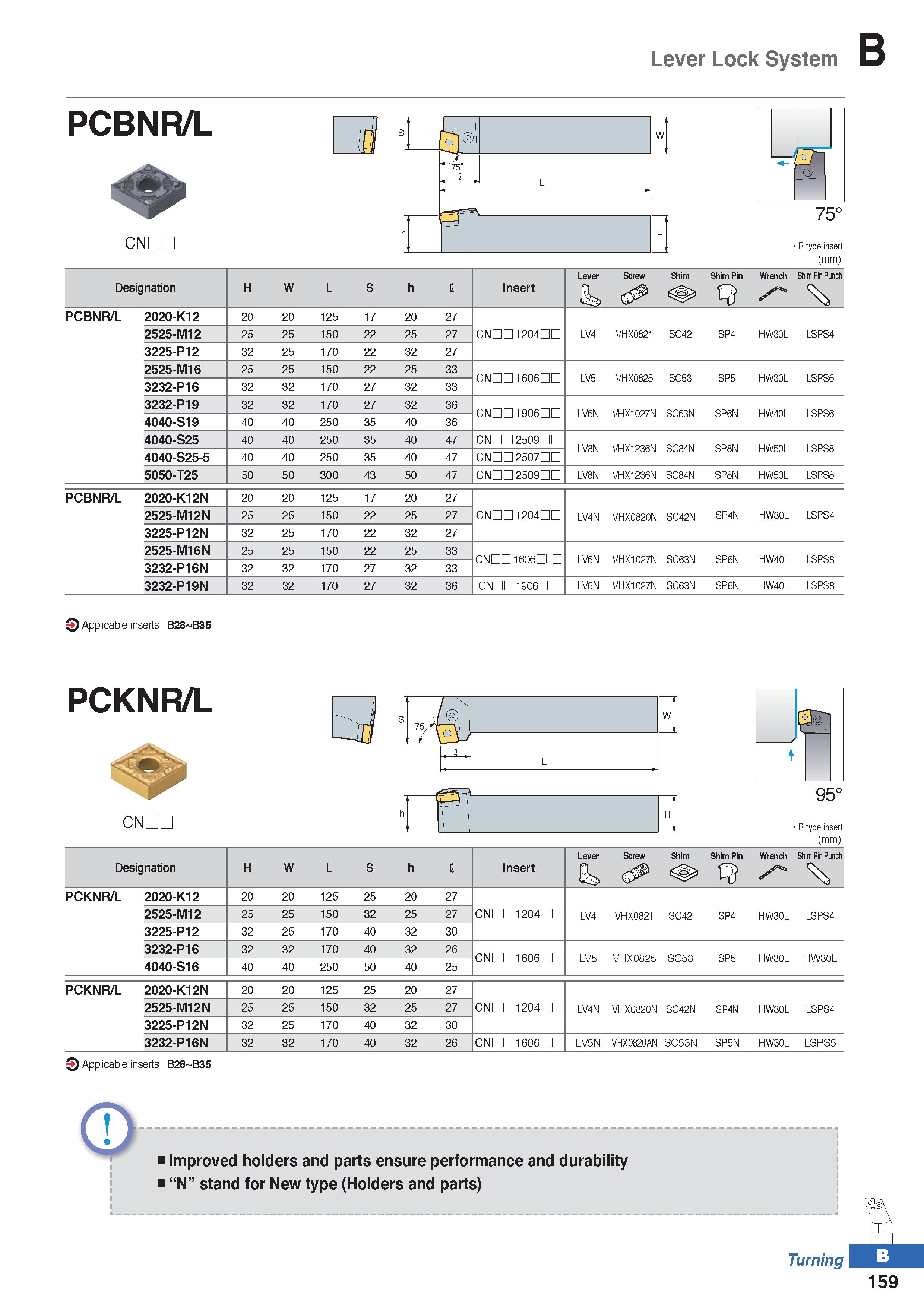

Lever Lock System PCBNR/L CNDL 75° R type insert (mm) Designation H W L S h I Insert Lever Screw Shim 1 Shim Pin Wrench Shim Pin Punch PCBNR/L 2020-K12 20 20 125 17 20 27 2525-M12 25 25 150 22 25 27 CNDD 1204HD LV4 VHX0821 SC42 SP4 HW30L LSPS4 3225-P12 32 25 170 22 32 27 2525-M16 25 25 150 22 25 33 CNDD 1606HD LV5 VHX0825 SC53 SP5 HW30L LSPS6 3232-P16 32 32 170 27 32 33 3232-P19 32 32 170 27 32 36 CNDD 1906HD LV6N VHX1027N SC63N SP6N HW40L LSPS6 4040-S19 40 40 250 35 40 36 4040-S25 40 40 250 35 40 47 CNDD 2509 LV8N VHX1236N SC84N SP8N HW50L LSPS8 4040-S25-5 40 40 250 35 40 47 CNDD 2507 5050-T25 50 50 300 43 50 47 CNDD 2509 LV8N VHX1236N SC84N SP8N HW50L LSPS8 PCBNR/L 2020-K12N 20 20 125 17 20 27 2525-M12N 25 25 150 22 25 27 CNDD 1204HD LV4N VHX0820N SC42N SP4N HW30L LSPS4 3225-P12N 32 25 170 22 32 27 2525-M16N 25 25 150 22 25 33 CNDD 1606DLD LV6N VHX1027N SC63N SP6N HW40L LSPS8 3232-P16N 32 32 170 27 32 33 3232-P19N 32 32 170 27 32 36 CNDD 1906HD LV6N VHX1027N SC63N SP6N HW40L LSPS8 9 Applicable inserts B28 B35 PCKNR/L CNDL R type insert (mm) Designation H W L S h I Insert Lever Ss Screw & Shim Shim Pin Wrench Shim Pin Punch PCKNR/L 2020-K12 20 20 125 25 20 27 2525-M12 25 25 150 32 25 27 CNDD 1204DD LV4 VHX0821 SC42 SP4 HW30L LSPS4 3225-P12 32 25 170 40 32 30 3232-P16 32 32 170 40 32 26 CNDD 1606DD LV5 VHX0825 SC53 SP5 HW30L HW30L 4040-S16 40 40 250 50 40 25 PCKNR/L 2020-K12N 20 20 125 25 20 27 2525-M12N 25 25 150 32 25 27 CNDD 1204DD LV4N VHX0820N SC42N SP4N HW30L LSPS4 3225-P12N 32 25 170 40 32 30 3232-P16N 32 32 170 40 32 26 CNDD 1606DD LV5N VHX0820AN SC53N SP5N HW30L LSPS5 9 Applicable inserts B28 B35 W S L h H i Improved holders and parts ensure performance and durability i “N” stand for New type (Holders and parts) Turning 159
