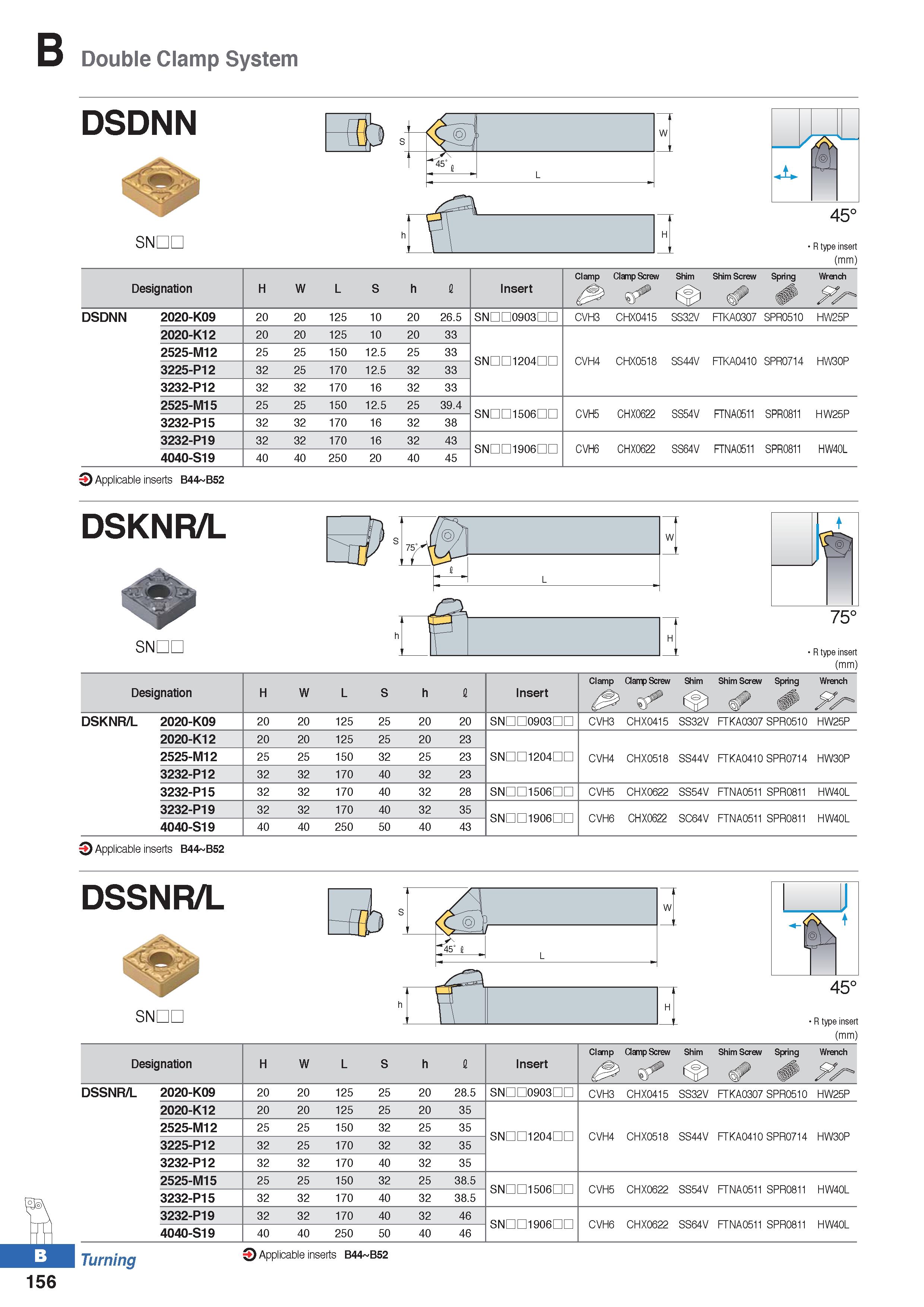

Double Clamp System DSDNN i, W '' L SNDL R type insert (mm) Designation H W L S h I Insert Clamp Clamp Screw Shim ( > Shim Screw Spring Wrench DSDNN 2020-K09 20 20 125 10 20 26.5 SNDD0903nn CVH3 CHX0415 SS32V FTKA0307 SPR0510 HW25P 2020-K12 20 20 125 10 20 33 2525-M12 25 25 150 12.5 25 33 SNDD1204IZO CVH4 CHX0518 SS44V FTKA0410 SPR0714 HW30P 3225-P12 32 25 170 12.5 32 33 3232-P12 32 32 170 16 32 33 2525-M15 25 25 150 12.5 25 39.4 SNDD1506IZO CVH5 CHX0622 SS54V FTNA0511 SPL0811 HW25P 3232-P15 32 32 170 16 32 38 3232-P19 32 32 170 16 32 43 SNDD1906IZO CVH6 CHX0622 SS64V FTNA0511 SPL081- HW40L 4040-S19 40 40 250 20 40 45 3 Applicable inserts B44 B52 DSKNR/L (0)y SNDL i i 1 H ’ R type insert (mm) Designation H W L S h I Insert Clamp Clamp Screw & Shim Shim Screw Spring Wrench DSKNR/L 2020-K09 20 20 125 25 20 20 SNDD0903nn CVH3 CHX0415 SS32V FTKA0307 SPR0510 HW25P 2020-K12 20 20 125 25 20 23 2525-M12 25 25 150 32 25 23 SNDD1204IZO CVH4 CHX0518 SS44V FTKA0410 SPR0714 HW30P 3232-P12 32 32 170 40 32 23 3232-P15 32 32 170 40 32 28 SN 15Q6 CVH5 CHX0622 SS54V FTNA0511 SPR0811 HW40L 3232-P19 32 32 170 40 32 35 SN 19Q6 CVH6 CHX0622 SC64V FTNA05 SPR0811 HW40L 4040-S19 40 40 250 50 40 43 3 Applicable inserts B44 B52 DSSNR/L SNDL IV 45° R type insert (mm) Turning 9 Applicable inserts B44 B52 156 H h W S L h W L H
