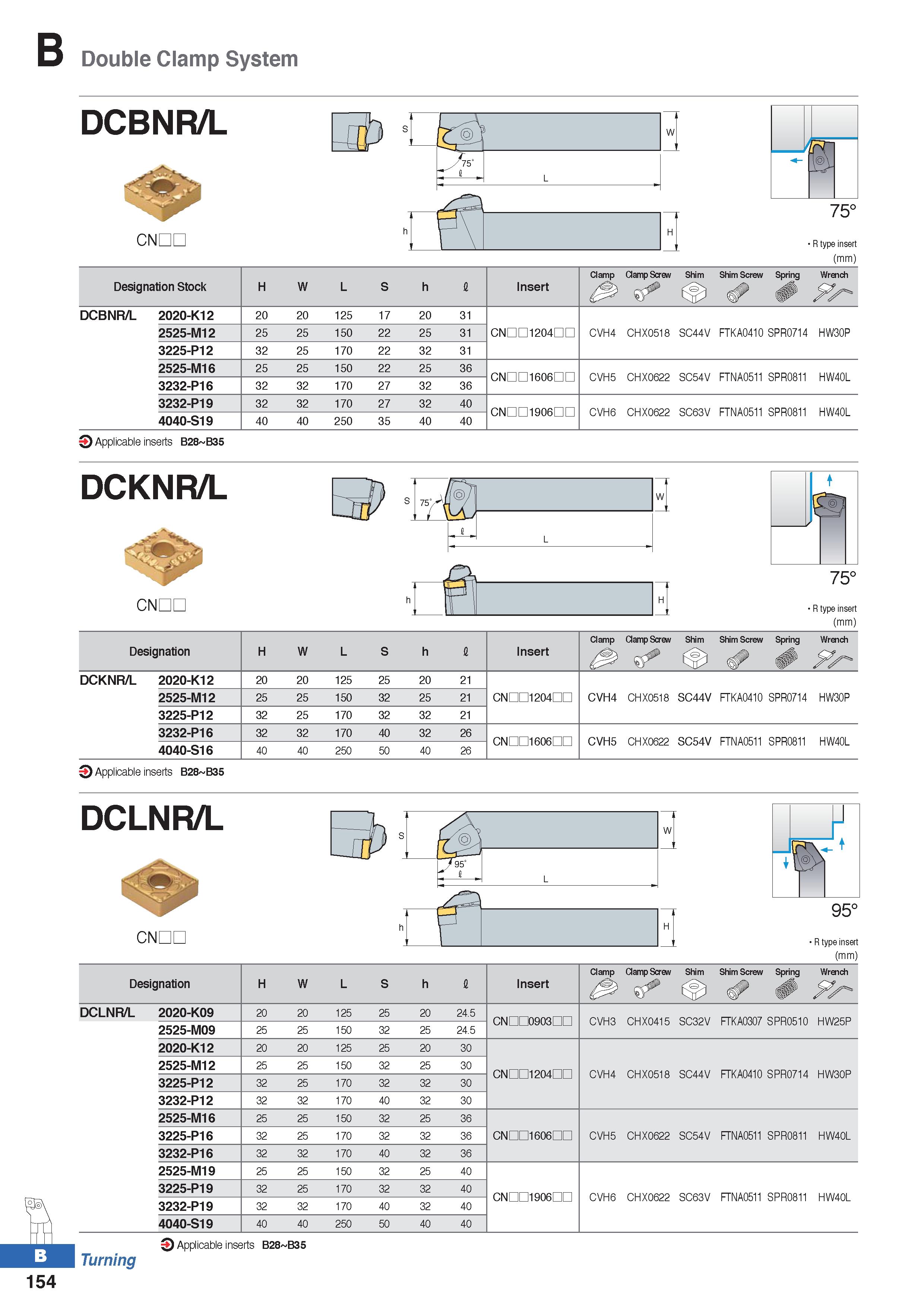

Double Clamp System DCBNR/L Mm W v .s i L CNDL 75° R type insert (mm) Designation Stock H W L S h I Insert Clamp Clamp Screw & Shim Shim Screw Spring Wrench DCBNR/L 2020-K12 20 20 125 17 20 31 2525-M12 25 25 150 22 25 31 CNDD1204nn CVH4 CHX0518 SC44V FTKA0410 SPR0714 HW30P 3225-P12 32 25 170 22 32 31 2525-M16 25 25 150 22 25 36 CNDD1606nn CVH5 CHX0622 SC54V FTNA0511 SPR0811 HW40L 3232-P16 32 32 170 27 32 36 3232-P19 32 32 170 27 32 40 CNDD1906nn CVH6 CHX0622 SC63V FTNA0511 SPR0811 HW40L 4040-S19 40 40 250 35 40 40 9 Applicable inserts B28 B35 DCKNR/L CNDL R type insert (mm) Designation H W L S h I Insert Clamp Clamp Screw & Shim Shim Screw Spring Wrench DCKNR/L 2020-K12 20 20 125 25 20 21 2525-M12 25 25 150 32 25 21 CNH0204HD CVH4 CHX0518 SC44V FTKA0410 SPR0714 HW30P 3225-P12 32 25 170 32 32 21 3232-P16 32 32 170 40 32 26 CNH0606HD CVH5 CHX0622 SC54V FTNA0511 SPR0811 HW40L 4040-S16 40 40 250 50 40 26 O Applicable inserts B28 B35 DCLNR/L CNDL R type insert (mm) Designation H W L S h I Insert Clamp Clamp Screw Shim Shim Screw Spring Wrench DCLNR/L 2020-K09 20 20 125 25 20 24.5 CNDD0903nn CVH3 CHX0415 SC32V FTKA0307 SPR0510 HW25P 2525-M09 25 25 150 32 25 24.5 2020-K12 20 20 125 25 20 30 2525-M12 25 25 150 32 25 30 CNH0204HD CVH4 CHX0518 SC44V FTKA0410 SPR0714 HW30P 3225-P12 32 25 170 32 32 30 3232-P12 32 32 170 40 32 30 2525-M16 25 25 150 32 25 36 3225-P16 32 25 170 32 32 36 CNH0606HD CVH5 CHX0622 SC54V FTNA0511 SPR0811 HW40L 3232-P16 32 32 170 40 32 36 2525-M19 25 25 150 32 25 40 3225-P19 32 25 170 32 32 40 CNH0906HD CVH6 CHX0622 SC63V FTNA0511 SPR0811 HW40L 3232-P19 32 32 170 40 32 40 4040-S19 40 40 250 50 40 40 Turning O Applicable inserts B28 B35 154 S h H W L H W L H
