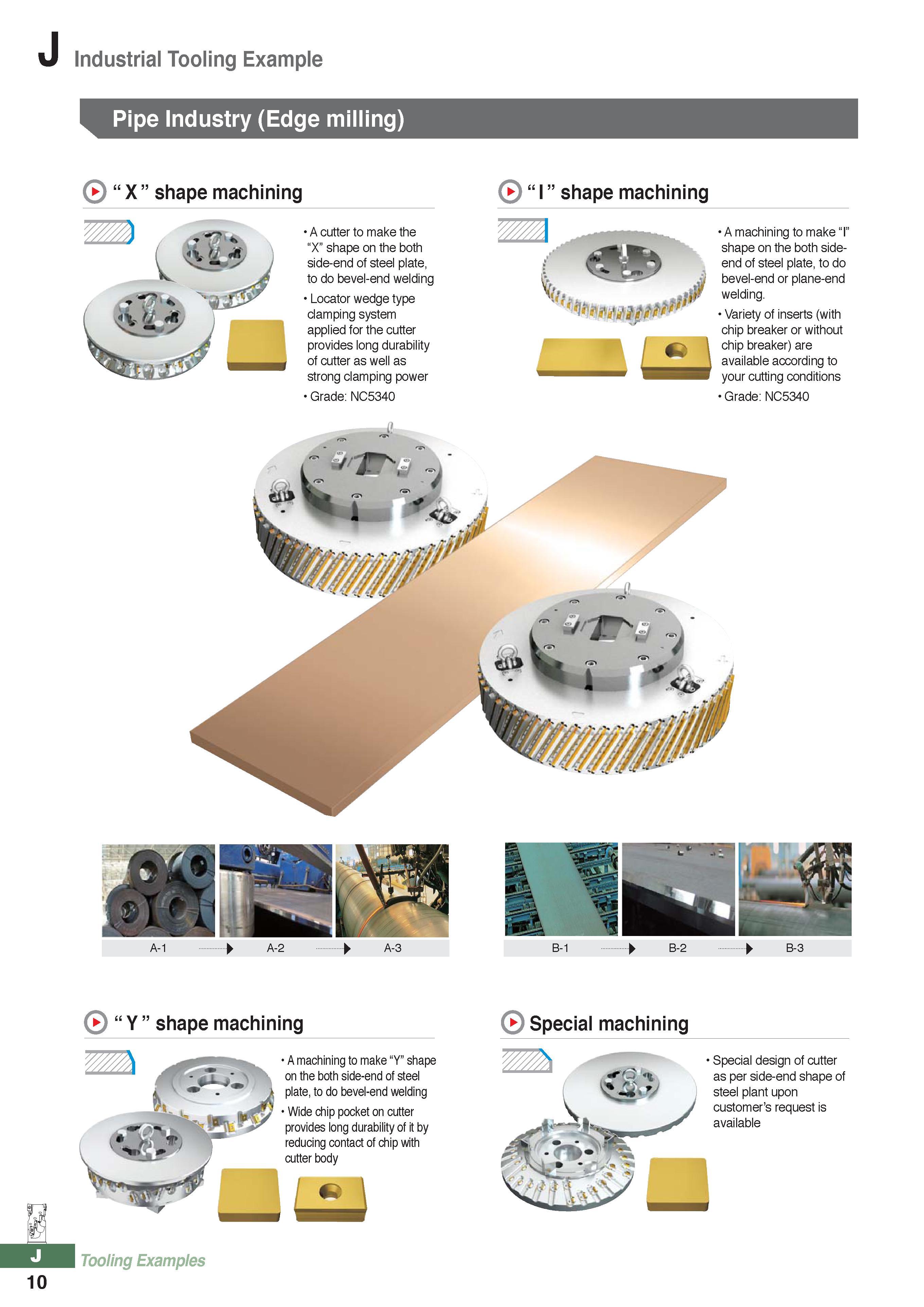

Industrial Tooling Example Pipe Industry (Edge milling) “X” shape machining “I” shape machining A cutter to make the “X” shape on the both side-end of steel plate, to do bevel-end welding Locator wedge type clamping system applied for the cutter provides long durability of cutter as well as strong clamping power Grade: NC5340 A machining to make “I” shape on the both side-end of steel plate, to do bevel-end or plane-end welding. Variety of inserts (with chip breaker or without chip breaker) are available according to your cutting conditions Grade: NC5340 “Y” shape machining Tooling Examples A machining to make “Y” shape on the both side-end of steel plate, to do bevel-end welding Wide chip pocket on cutter provides long durability of it by reducing contact of chip with cutter body Special machining Special design of cutter as per side-end shape of steel plant upon customer’s request is available 10
