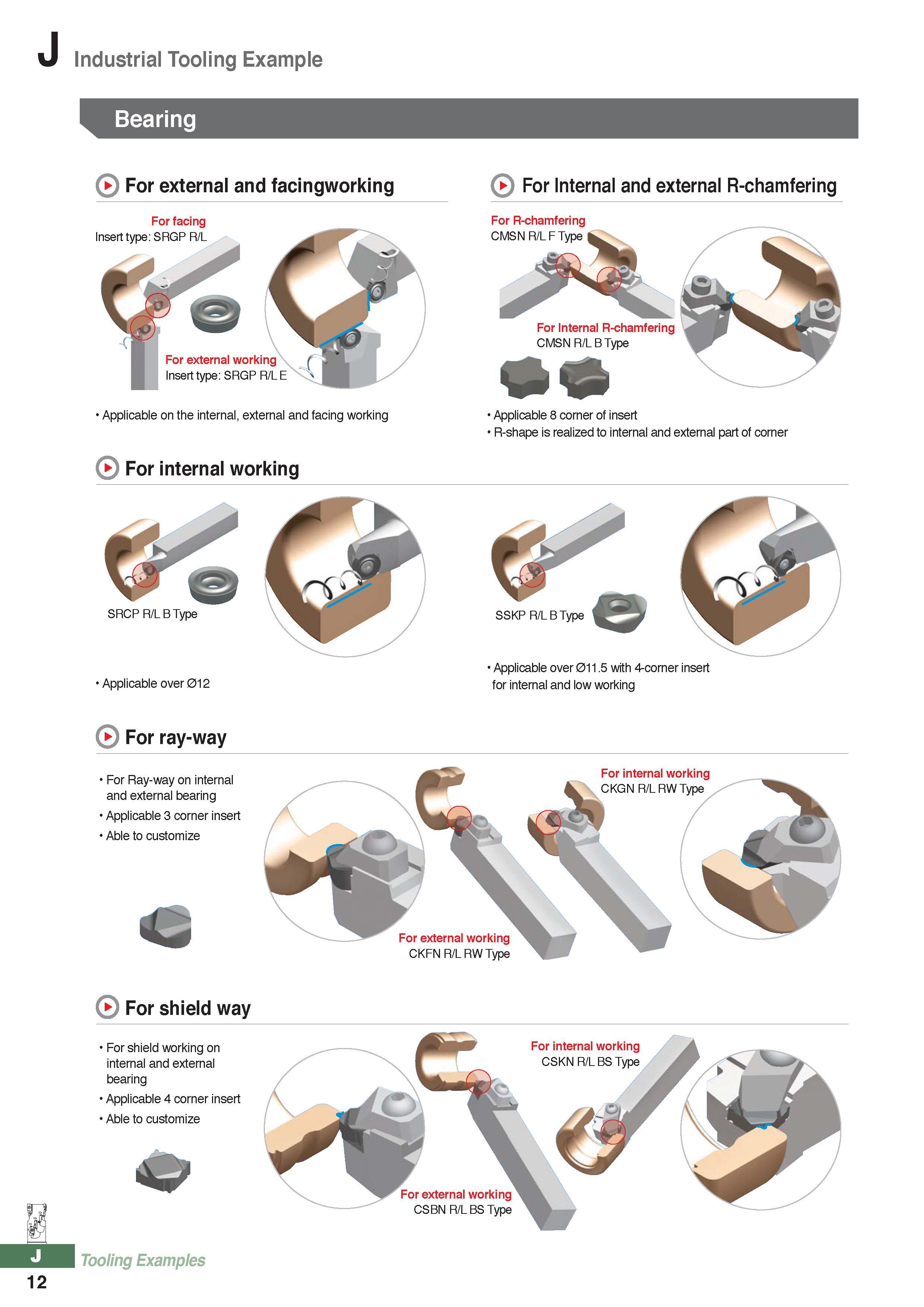

J Industrial Tooling Example Bearing For external and facingworking For facing Insert type: SRGP R/L For external working Insert type: SRGP R/L E Applicable on the internal, external and facing working For internal working For Internal and external R-chamfering For R-chamfering CMSNR/LFType For Internal R-chamfering CMSN R/L B Type Applicable 8 corner of insert R-shape is realized to internal and external part of corner SRCP R/L B Type Applicable over 012 SSKP R/L B Type Applicable over 011.5 with 4-corner insert for internal and low working For ray-way For Ray-way on internal and external bearing Applicable 3 corner insert Able to customize e For external working CKFNR/L RW Type For Internal working CKGN R/L RW Type For shield way For shield working on internal and external bearing Applicable 4 corner insert Able to customize J Tooling Examples For external working CSBN R/L BS Type 12
