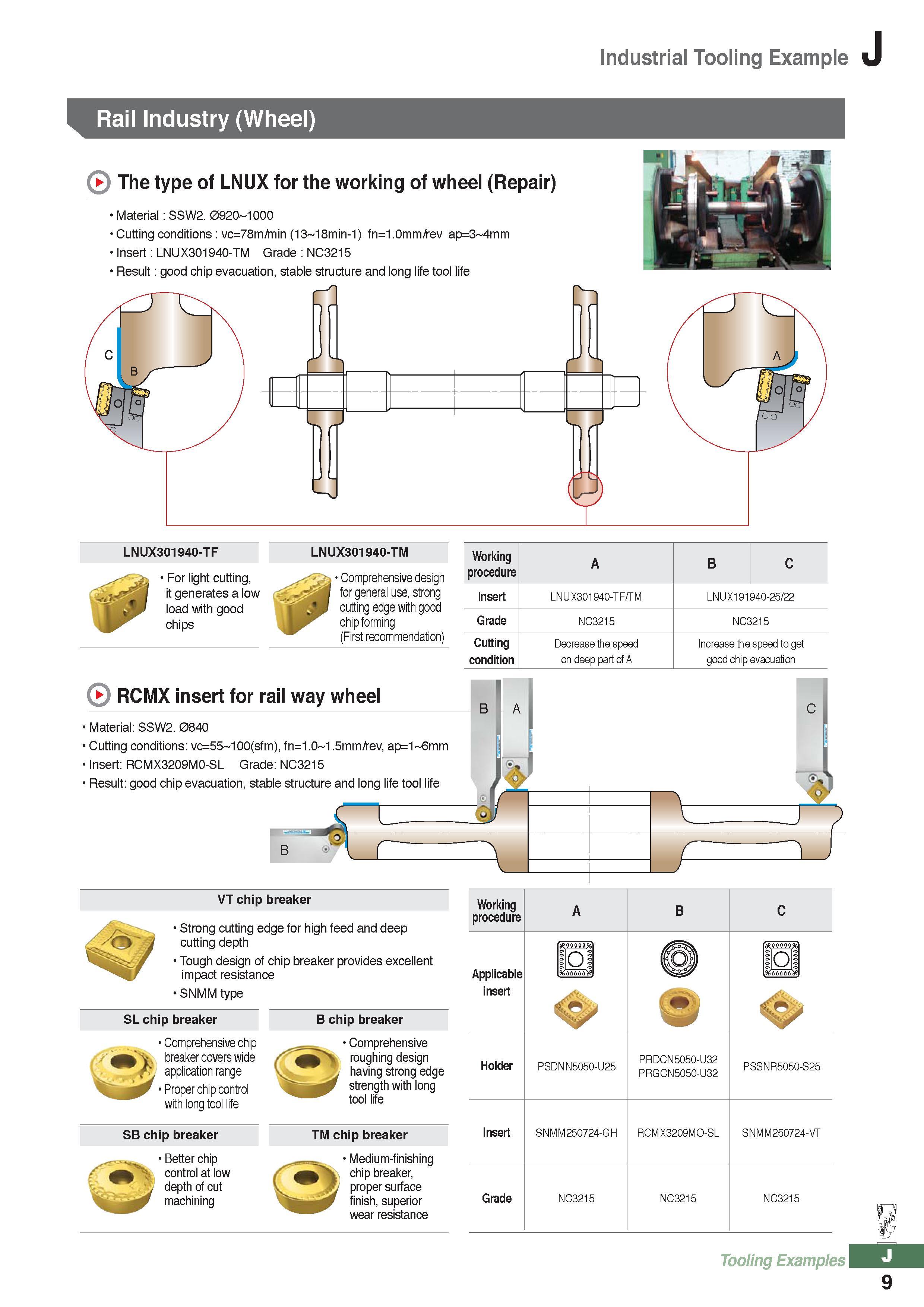

Industrial Tooling Example Rail Industry (Wheel) The type of LNUX for the working of wheel (Repair) Material: SSW2. 0920-1000 Cuttingconditions:vc=78m/min (13 18min-1) fn=1.0mm/rev ap=3 4mm Insert: LNUX301940-TM Grade NC3215 Result: good chip evacuation, stable structure and long life tool life LNUX301940-TF For light cutting, it generates a low load with good chips LNUX301940-TM 1 Comprehensive design for general use, strong cutting edge with good chip forming (First recommendation) Working procedure A B C nsert LNUX301940-TF/TM LNUX191940-25/22 Grade NC3215 NC3215 Cutting condition Decrease the speed on deep part of A Increase the speed to get good chip evacuation RCMX insert for rail way wheel Material: SSW2. 0840 Cutting conditions: vc=55 100(sfm), fn=1.0 1.5mm/rev, ap=1 6mm Insert: RCMX3209M0-SL Grade: NC3215 Result: good chip evacuation, stable structure and long life tool life I B A u VT chip breaker Strong cutting edge for high feed and deep cutting depth Tough design of chip breaker provides excellent impact resistance SNMM type SL chip breaker Comprehensive chip breakercoverswide application range Proper chip control with long tool life SB chip breaker B chip breaker 1 Comprehensive roughing design having strong edge strength with long tool life Better chip control at low depth of cut machining TM chip breaker Medium-finishing chip breaker, proper surface finish, superior wear resistance Working procedure A B Applicable insert IOI aaaooV0 s Holder PSDNN5050-U25 PRDCN5050-U32 PRGCN5050-U32 Insert SNMM250724-GH RCMX3209MO-SL Grade NC3215 NC3215 _o_ VaaaaaV PSSNR5050-S25 SNMM250724-VT NC3215 Tooling Examples J 9 B C
