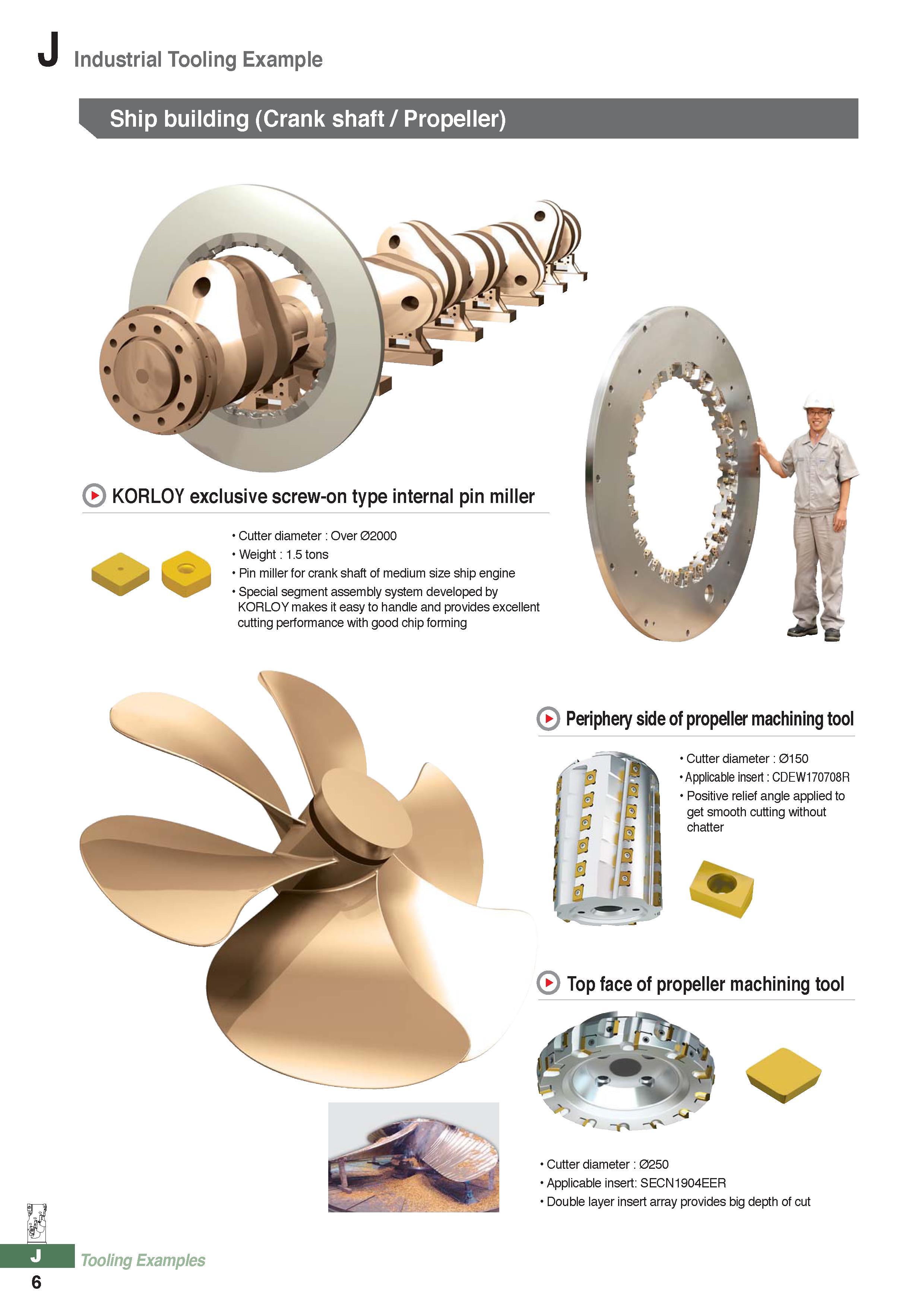

Industrial Tooling Example Ship building (Crank shaft / Propeller) KORLOY exclusive screw-on type internal pin miller Cutter diameter: Over 02000 Weight: 1.5 tons Pin miller for crank shaft of medium size ship engine Special segment assembly system developed by KORLOY makes it easy to handle and provides excellent cutting performance with good chip forming 0 Periphery side of propeller machining tool J Tooling Examples Cutter diameter: 0150 Applicable insert: CDEW170708R Positive relief angle applied to get smooth cutting without chatter Cutter diameter: 0250 Applicable insert: SECN1904EER Double layer insert array provides big depth of cut 6
