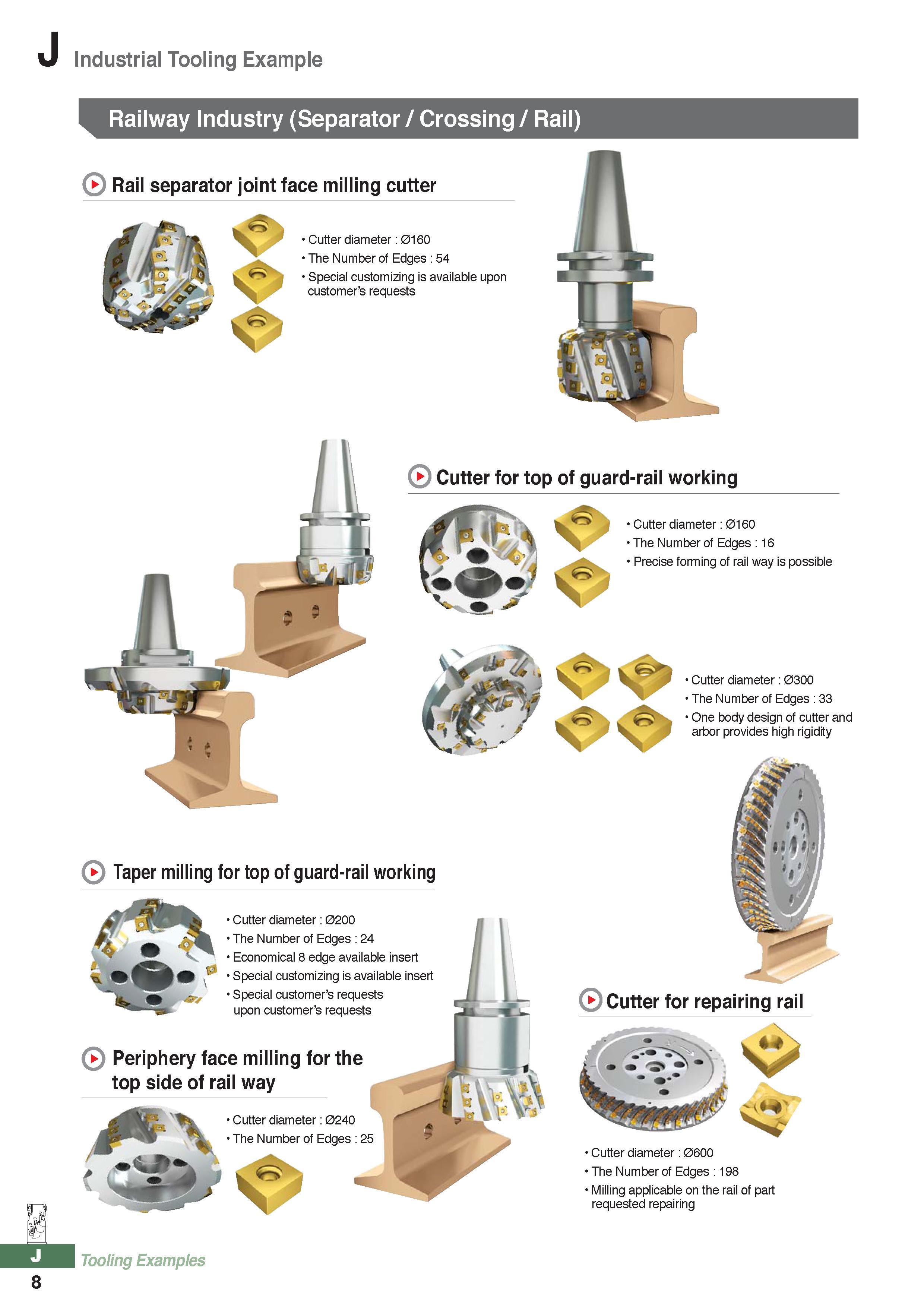

J Industrial Tooling Example Railway Industry (Separator / Crossing / Rail) Rail separator joint face milling cutter Cutter diameter: 0160 The Number of Edges 54 Special customizing is available upon customer’s requests Cutter for top of guard-rail working Cutter diameter: 0160 The Numberof Edges 16 Precise forming of rail way is possible Cutter diameter: 0300 The Number of Edges 33 One body design of cutter and arbor provides high rigidity Taper milling for top of guard-rail working Cutter diameter: 0200 The Number of Edges 24 Economical 8 edge available insert Special customizing is available insert Special customer’s requests upon customer’s requests Q Periphery face milling for the top side of rail way Cutter diameter: 0240 The Number of Edges 25 G Cutter for repairing rail Cutter diameter: 0600 The Number of Edges 198 Milling applicable on the rail of part requested repairing Tooling Examples 8
