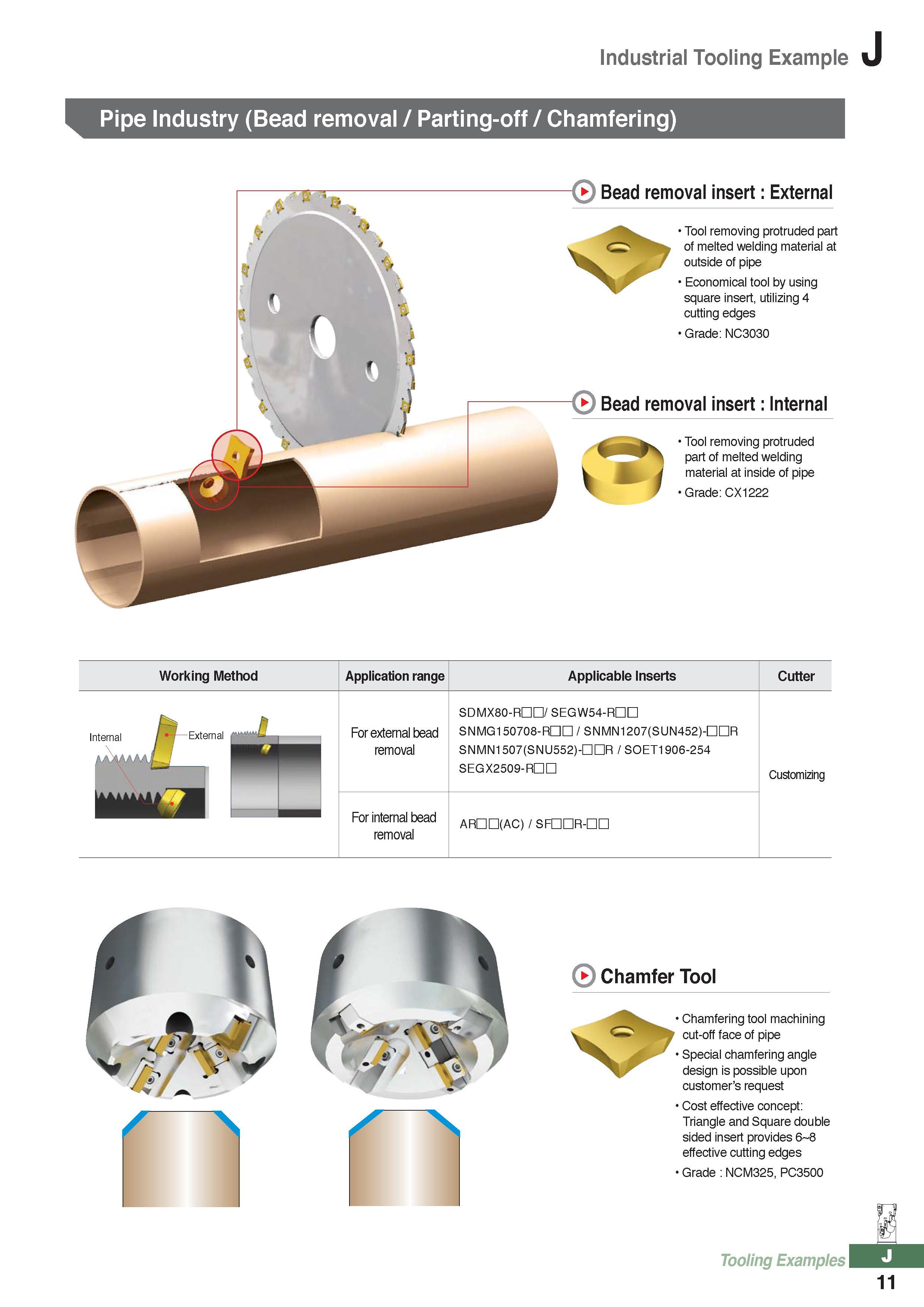

Industrial Tooling Example Pipe Industry (Bead removal / Parting-off / Chamfering) Bead removal insert External Tool removing protruded part of melted welding material at outside of pipe Economical tool by using square insert, utilizing 4 cutting edges Grade: NC3030 Bead removal insert Internal Tool removing protruded part of melted welding material at inside of pipe Grade: CX1222 Working Method Application range Applicable Inserts Forexternalbead removal SDMX80-RCD/ SEGW54-RDD SNMG150708-RDD / SNMN1207(SUN452)-DDR SNMN1507(SNU552) DR / SOET1906-254 SEGX2509-RDD For internal bead removal ATOD(AC) / sraDR n Cutter Internal Customizing Chamfer Tool Chamfering tool machining cut-off face of pipe Special chamfering angle design is possible upon customer’s request Cost effective concept: Triangle and Square double sided insert provides 6 8 effective cutting edges Grade NCM325, PC3500 Tooling Examples J 11
