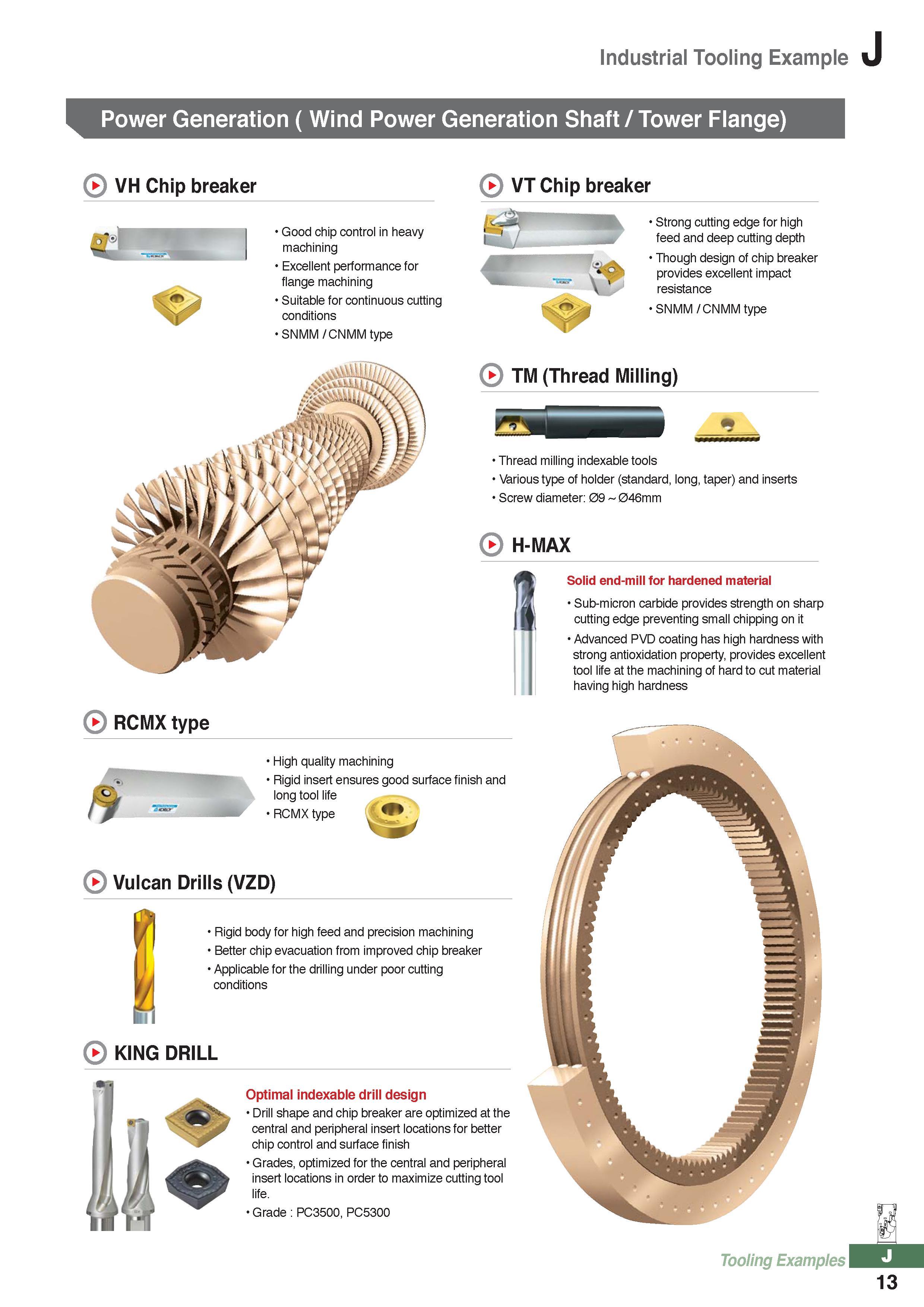

Industrial Tooling Example Power Generation ( Wind Power Generation Shaft / Tower Flange) VH Chip breaker VT Chip breaker Good chip control in heavy machining Excellent performance for flange machining Suitable for continuous cutting conditions SNMM /CNMM type Strong cutting edge for high feed and deep cutting depth Though design of chip breaker provides excellent impact resistance SNMM / CNMM type TM (Thread Milling) Thread milling indexable tools Various type of holder (standard, long, taper) and inserts Screw diameter: 09 046mm ) H-MAX Solid end-mill for hardened material Sub-micron carbide provides strength on sharp cutting edge preventing small chipping on it Advanced PVD coating has high hardness with strong antioxidation property, provides excellent tool life at the machining of hard to cut material having high hardness RCMX type High quality machining Rigid insert ensures good surface finish and long tool life RCMX type Vulcan Drills (VZD) Rigid body for high feed and precision machining Better chip evacuation from improved chip breaker Applicable for the drilling under poor cutting conditions KING DRILL Optimal indexable drill design Drill shape and chip breaker are optimized at the central and peripheral insert locations for better chip control and surface finish Grades, optimized for the central and peripheral insert locations in order to maximize cutting tool life. Grade PC3500, PC5300 Tooling Examples 13
