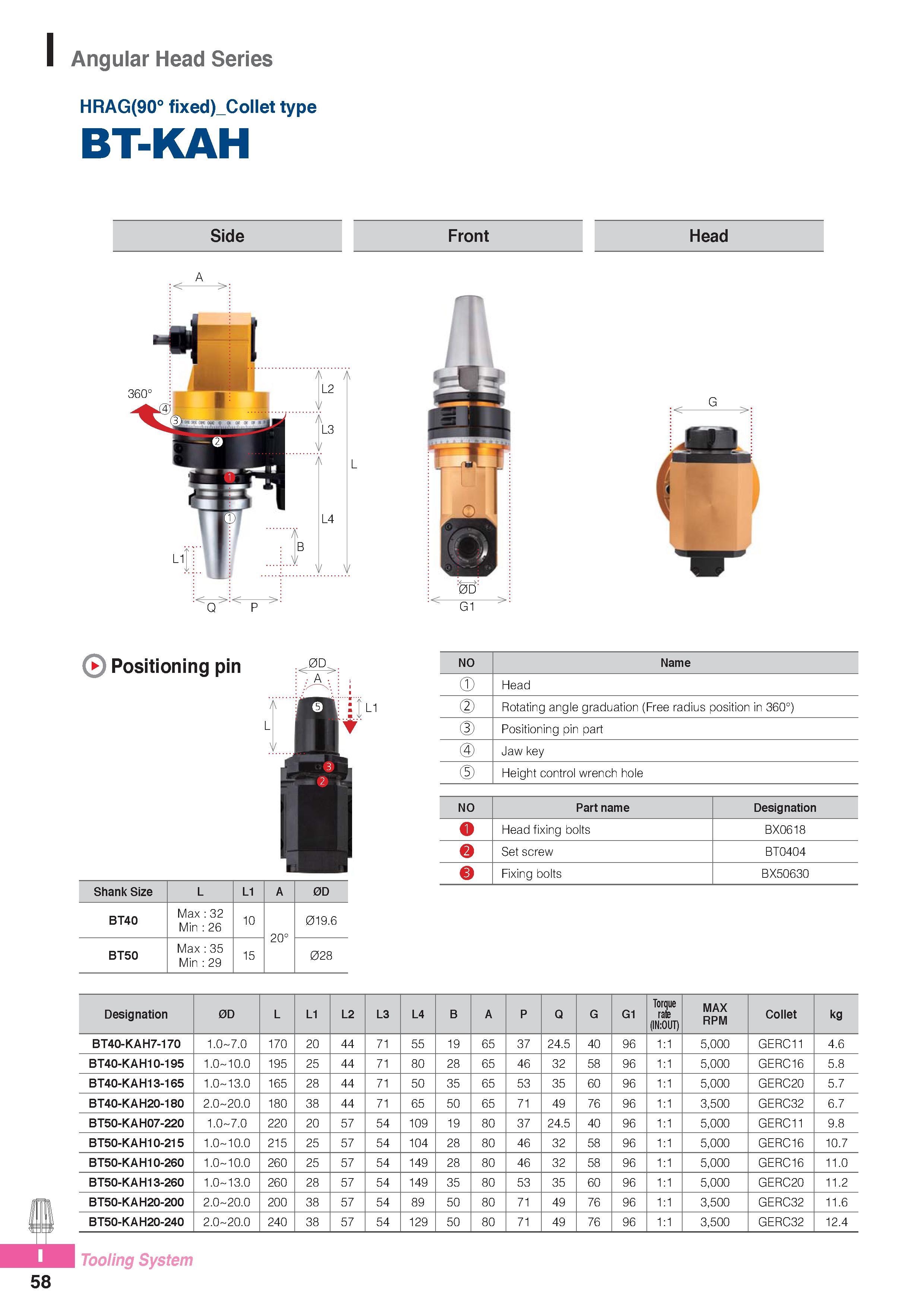

Angular Head Series HRAG(90° fixed)_Collet type BT-KAH Side Front Head A > 360' Q P Positioning pin 0D A Shank Size L L1 A 0D BT40 Max 32 Min 26 10 20° 019.6 BT50 Max 35 Min 29 15 028 L1 G1 NO Name Head Rotating angle graduation (Free radius position in 360°) Positioning pin part Jaw key Height control wrench hole NO Part name Designation ft Head fixing bolts BX0618 Set screw BT0404 Fixing bolts BX50630 Designation 0D L L1 L2 L3 L4 B A P Q G G1 Torque rale (INiOUT) MAX RPM Collet kg BT40-KAH7-170 0 I 0 170 20 44 71 55 19 65 37 24.5 40 96 1:1 5,000 GERC11 4.6 BT40-KAH10-195 1.0 10.0 195 25 44 71 80 28 65 46 32 58 96 1:1 5,000 GERC16 5.8 BT40-KAH13-165 1.0 13.0 165 28 44 71 50 35 65 53 35 60 96 1:1 5,000 GERC20 5.7 BT40-KAH20-180 2.0 20.0 180 38 44 71 65 50 65 71 49 76 96 1:1 3,500 GERC32 6.7 BT50-KAH07-220 0 I 0 220 20 57 54 109 19 80 37 24.5 40 96 1:1 5,000 GERC11 9.8 BT50-KAH10-215 1.0 10.0 215 25 57 54 104 28 80 46 32 58 96 1:1 5,000 GERC16 10.7 BT50-KAH10-260 1.0 10.0 260 25 57 54 149 28 80 46 32 58 96 1:1 5,000 GERC16 11.0 BT50-KAH13-260 1.0 13.0 260 28 57 54 149 35 80 53 35 60 96 1:1 5,000 GERC20 11.2 BT50-KAH20-200 2.0 20.0 200 38 57 54 89 50 80 71 49 76 96 1:1 3,500 GERC32 11.6 BT50-KAH20-240 2.0 20.0 240 38 57 54 129 50 80 71 49 76 96 1:1 3,500 GERC32 12.4 Tooling System 58 G L
