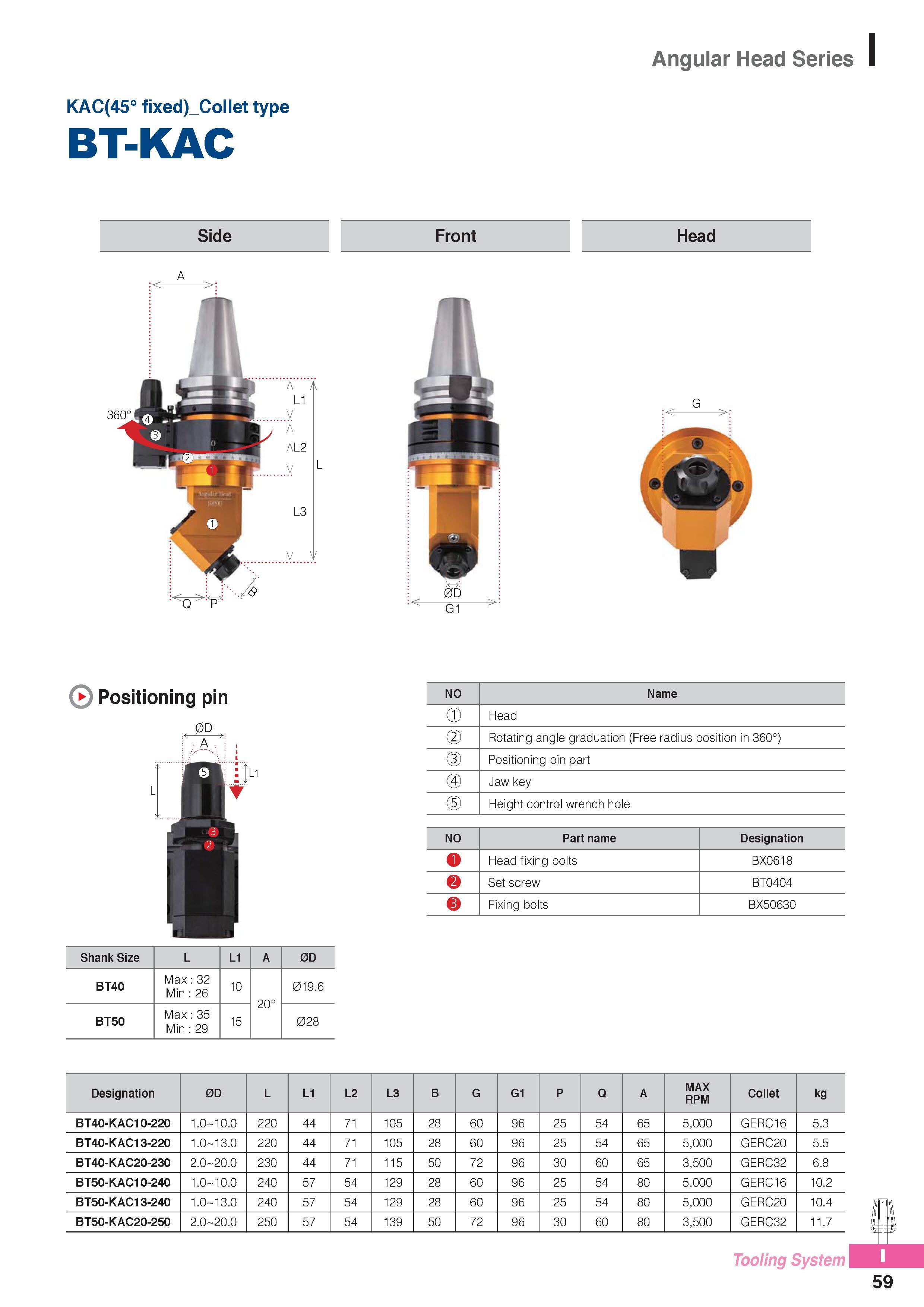

Angular Head Series KAC(45° fixed)_Collet type BT-KAC Side Front Head Positioning pin 0D NO Name (D Head (2) Rotating angle graduation (Free radius position in 360°) (3) Positioning pin part Jaw key (D Height control wrench hole NO Part name Designation Q Head fixing bolts BX0618 Set screw BT0404 Fixing bolts BX50630 Shank Size L L1 A 0D BT40 Max 32 Min 26 10 20° 019.6 BT50 Max 35 Min 29 15 028 Designation 0D L L1 L2 L3 B G G1 P Q A MAX RPM Collet kg BT40-KAC10-220 1.0 10.0 220 44 71 105 28 60 96 25 54 65 5,000 GERC16 5.3 BT40-KAC13-220 1.0 13.0 220 44 71 105 28 60 96 25 54 65 5,000 GERC20 5.5 BT40-KAC20-230 2.0 20.0 230 44 71 115 50 72 96 30 60 65 3,500 GERC32 6.8 BT50-KAC10-240 1.0 10.0 240 57 54 129 28 60 96 25 54 80 5,000 GERC16 10.2 BT50-KAC13-240 1.0 13.0 240 57 54 129 28 60 96 25 54 80 5,000 GERC20 10.4 BT50-KAC20-250 2.0 20.0 250 57 54 139 50 72 96 30 60 80 3,500 GERC32 11.7 Tooling System 59
