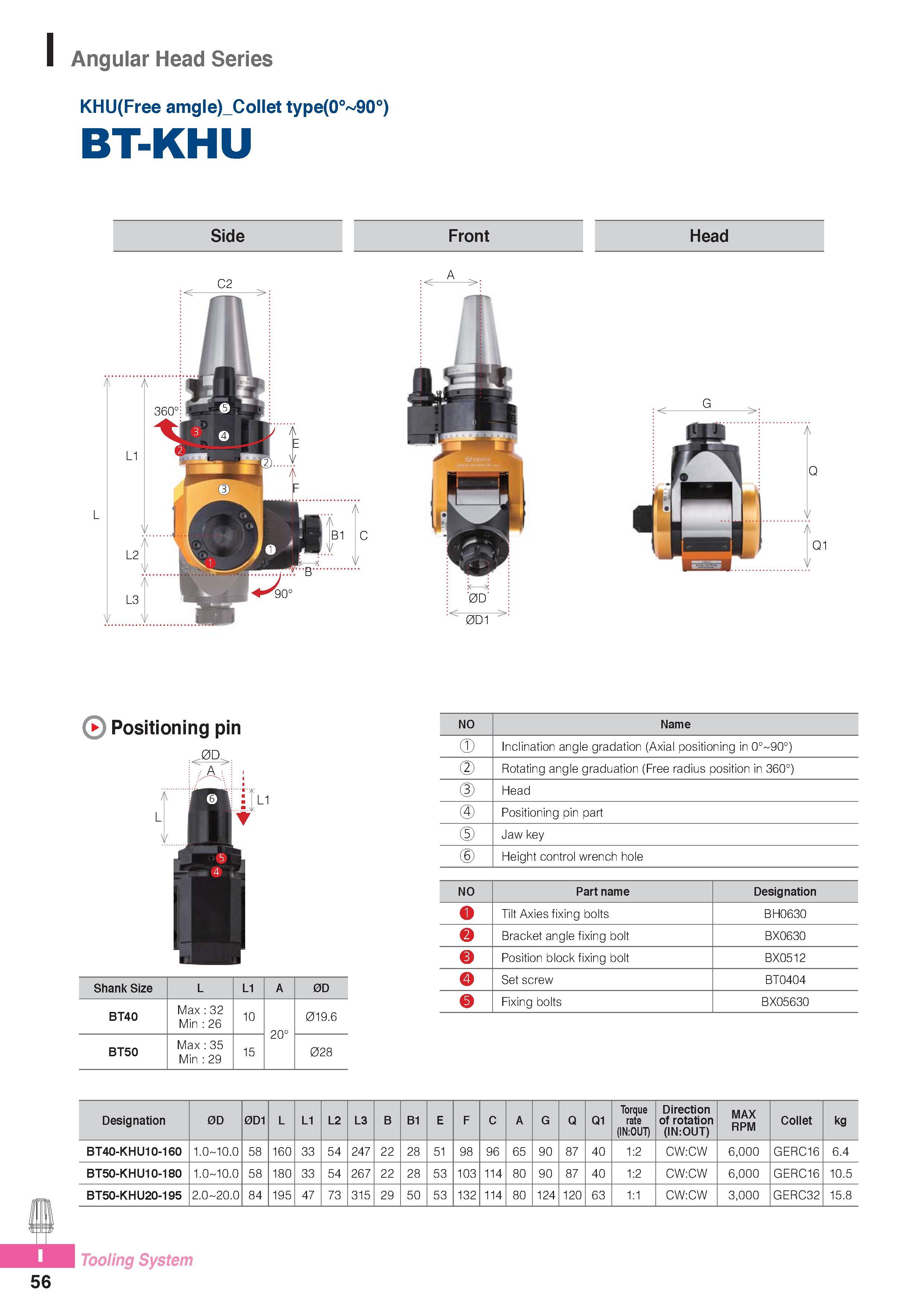

Angular Head Series KHU(Free amgle)_Collet type(0° 90°) BT-KHU Side Front Head Positioning pin Shank Size L L1 A 0D BT40 Max 32 Min 26 10 20° 019.6 BT50 Max 35 Min 29 15 028 NO Name Inclination angle gradation (Axial positioning in 0° 90°) Rotating angle graduation (Free radius position in 360°) Head Positioning pin part Jaw key Height control wrench hole NO Part name Designation Q Tilt Axies fixing bolts BH0630 Bracket angle fixing bolt BX0630 Position block fixing bolt BX0512 Set screw BT0404 Fixing bolts BX05630 Designation 0D 0D1 L L1 L2 L3 B B1 E F C A G Q Q1 Torque rate (IN:OUT) Direction of rotation (IN:OUT) MAX RPM Collet kg BT40-KHU10-160 1.0 10.0 58 160 33 54 247 22 28 51 98 96 65 90 87 40 1:2 CW:CW 6,000 GERC16 6.4 BT50-KHU10-180 1.0 10.0 58 180 33 54 267 22 28 53 103 114 80 90 87 40 1:2 CW:CW 6,000 GERC16 10.5 BT50-KHU20-195 2.0 20.0 84 195 47 73 315 29 50 53 132 114 80 124 120 63 1:1 CW:CW 3,000 GERC32 15.8 56 Tooling System
