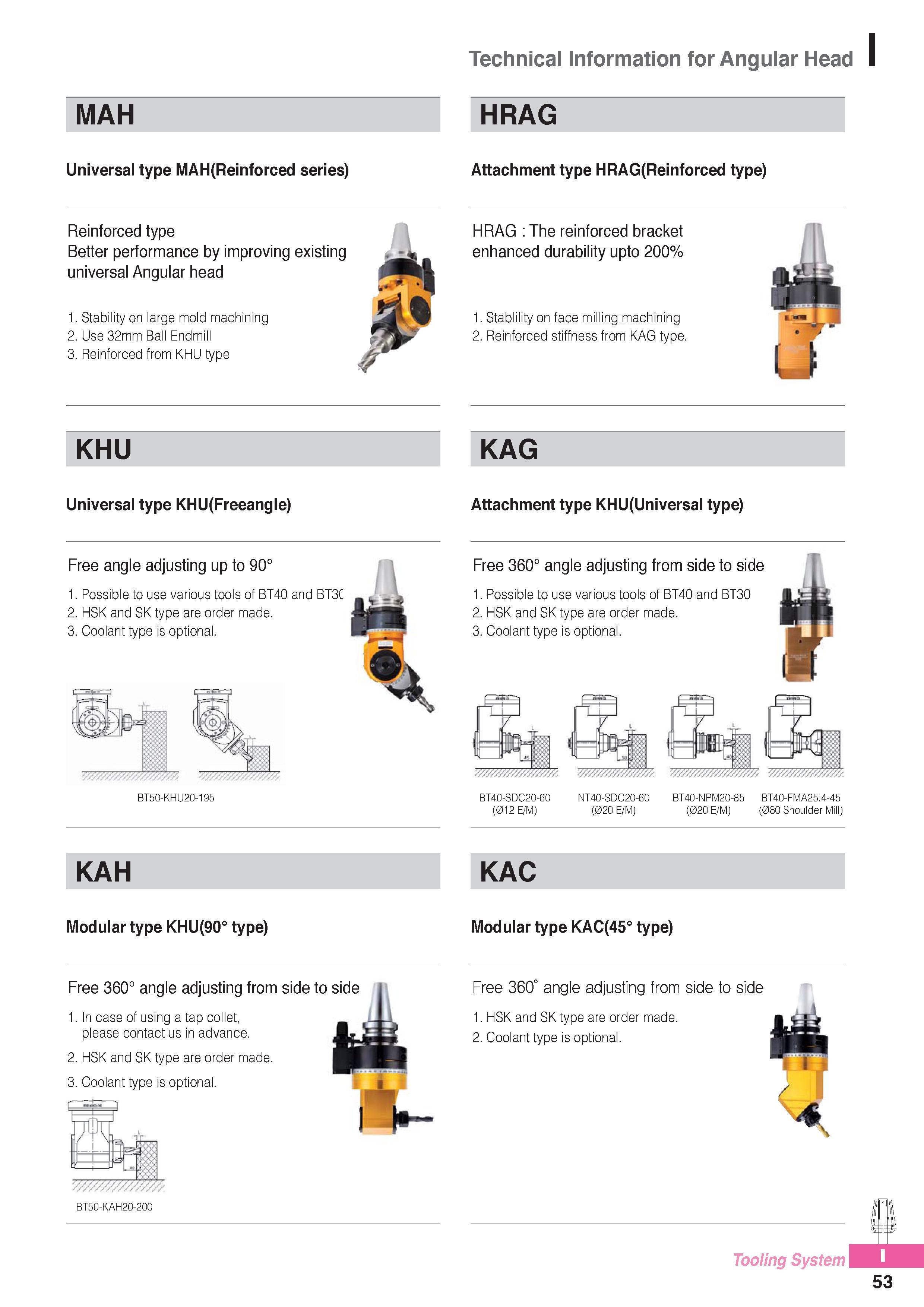

Technical Information for Angular Head MAH HRAG Universal type MAH(Reinforced series) Attachment type HRAG(Reinforced type) Reinforced type Better performance by improving existing universal Angular head 1. Stability on large mold machining 2. Use 32mm Ball Endmill 3. Reinforced from KHU type HRAG The reinforced bracket enhanced durability upto 200% 1. Stablility on face milling machining 2. Reinforced stiffness from KAG type. KHU KAG Universal type KHU(Freeangle) Attachment type KHU(Universal type) Free angle adjusting up to 90° 1. Possible to use various tools of BT40 and BT3C 2. HSK and SK type are order made. 3. Coolant type is optional. BT50-KHU20-195 Free 360° angle adjusting from side to side 1. Possible to use various tools of BT40 and BT30 2. HSK and SK type are order made. 3. Coolant type is optional. BT40-SDC20-6C (012 E/M) NT40-SDC20-6C (020 E/M) BT40-NPM20-85 BT40-FMA25.4-45 (020 E/M) (080 Shoulder Mill) KAH KAC Modular type KHU(90° type) Modular type KAC(45° type) Free 360° angle adjusting from side to side 1. In case of using a tap collet, please contact us in advance. 2. HSK and SK type are order made. 3. Coolant type is optional. mmmm BT50-KAH20-200 Free 360° angle adjusting from side to side 1. HSK and SK type are order made. 2. Coolant type is optional. Tooling System 53
