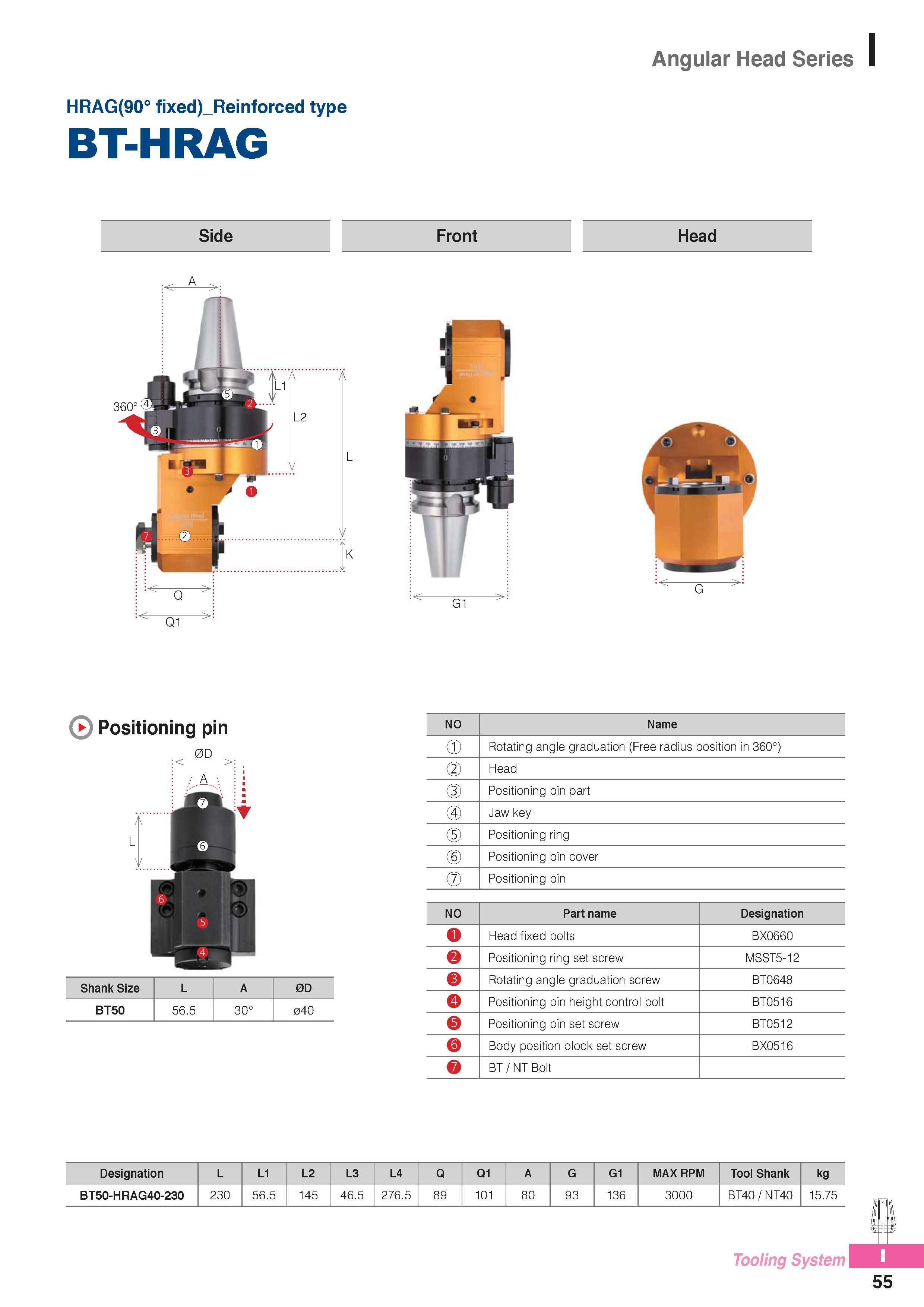

Angular Head Series HRAG(90° fixed)_Reinforced type BT-HRAG Side Front Head Shank Size L A 0D BT50 56.5 30° 040 NO Name CD Rotating angle graduation (Free radius position in 360°) 0) Head (3) Positioning pin part Jaw key Positioning ring Positioning pin cover Positioning pir NO Part name Designation o Head fixed bolts BX0660 Positioning ring set screw MSST5-12 Rotating angle graduation screw BT0648 Positioning pin height control bolt BT0516 Positioning pin set screw BT0512 Body position block set screw BX0516 0 BT / NT Bolt Designation L L1 L2 L3 L4 Q Q1 A G G1 MAX RPM Tool Shank kg BT50-HRAG40-230 230 56.5 145 46.5 276.5 89 101 80 93 136 3000 BT40 / NT40 15.75 Tooling System 55
