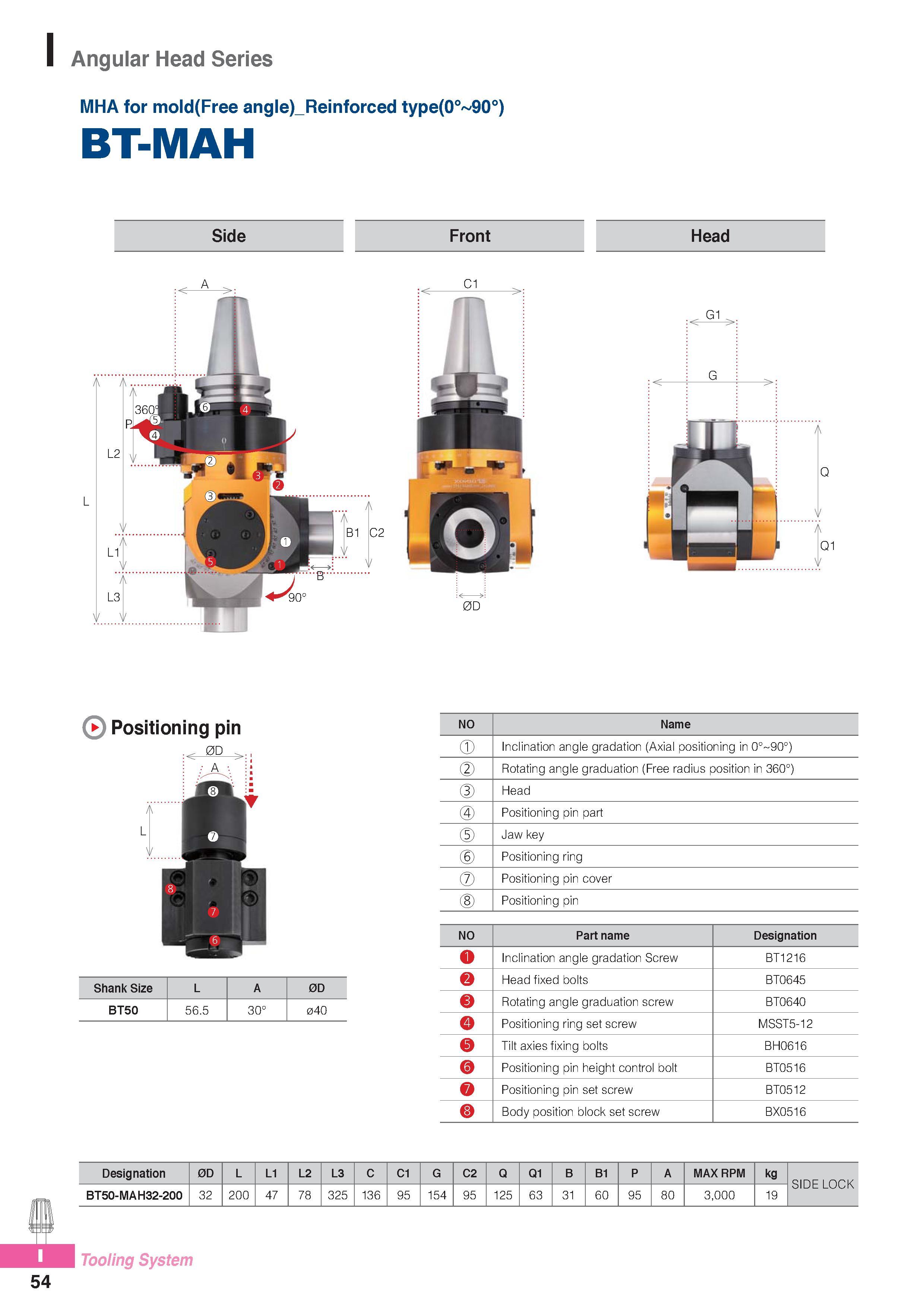

Angular Head Series MHA for mold(Free angle)_Reinforced type(0° 90°) BT-MAH Side Front Head Positioning pin 0D A A L V Shank Size L A 0D BT50 56.5 30° 040 NO Name Inclination angle gradation (Axial positioning in 0° 90°) (D Rotating angle graduation (Free radius position in 360°) (D Head Positioning pin part Jaw key Positioning ring Positioning pin cover Positioning pin NO Part name Designation Q Inclination angle gradation Screw BT1216 Head fixed bolts BT0645 Rotating angle graduation screw BT0640 Positioning ring set screw MSST5-12 Tilt axies fixing bolts BH0616 Positioning pin height control bolt BT0516 Positioning pin set screw BT0512 Body position block set screw BX0516 Designation 0D L Li L2 L3 C C1 G C2 Q Q1 B B1 P A MAX RPM kg SIDE LOCK BT50-MAH32-200 32 200 47 78 325 136 95 154 95 125 63 31 60 95 80 3,000 19 Tooling System 54
